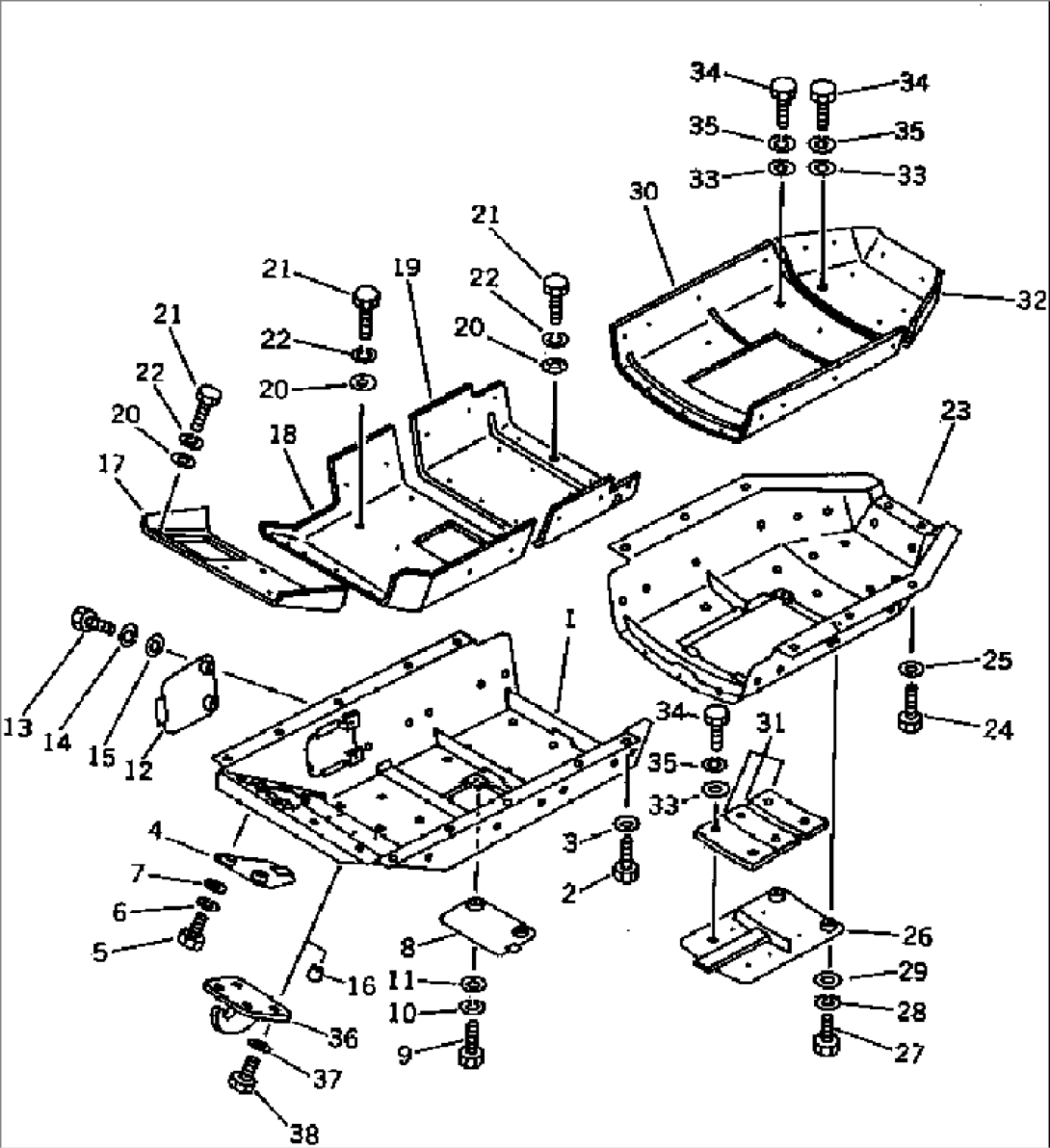

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 144-A62-7610 | GUARD,FRONT | 45330- | |
| 2 | 01010-51650 | BOLT | 45330- | |
| 3 | 01643-31645 | WASHER | 45330- | |
| 4 | 144-913-2130 | COVER | 45330- | |
| 5 | 01010-51230 | BOLT | 45330- | |
| 6 | 01602-21236 | WASHER,SPRING | 45330- | |
| 7 | 01643-31232 | WASHER | 45330- | |
| 8 | 144-854-1151 | COVER | 45330- | |
| 9 | 01010-51230 | BOLT | 45330- | |
| 10 | 01602-21236 | WASHER,SPRING | 45330- | |
| 11 | 01643-31232 | WASHER | 45330- | |
| 12 | 144-54-52120 | COVER | 45330- | |
| 13 | 01010-51230 | BOLT | 45330- | |
| 14 | 01602-21236 | WASHER,SPRING | 45330- | |
| 15 | 01643-31232 | WASHER | 45330- | |
| 16 | 07049-02025 | PLUG | 45330- | |
| 17 | 144-54-13370 | SEAT | 45330- | |
| 18 | 144-A62-7620 | SEAT | 45330- | |
| 19 | 144-54-13350 | SEAT | 45330- | |
| 20 | 144-54-21490 | PLATE | 45330- | |
| 21 | 01010-50820 | BOLT | 45330- | |
| 22 | 01602-20825 | WASHER,SPRING | 45330- | |
| 23 | 144-54-13330 | GUARD,REAR | 45330- | |
| 24 | 01010-51645 | BOLT | 45330- | |
| 25 | 01643-31645 | WASHER | 45330- | |
| 26 | 144-54-13340 | COVER | 45330- | |
| 27 | 01010-51230 | BOLT | 45330- | |
| 28 | 01602-21236 | WASHER,SPRING | 45330- | |
| 29 | 01643-31232 | WASHER | 45330- | |
| 30 | 144-54-13380 | SEAT | 45330- | |
| 31 | 141-54-34420 | SEAT | 45330- | |
| 32 | 144-54-13390 | SEAT | 45330- | |
| 33 | 144-54-21490 | PLATE | 45330- |
