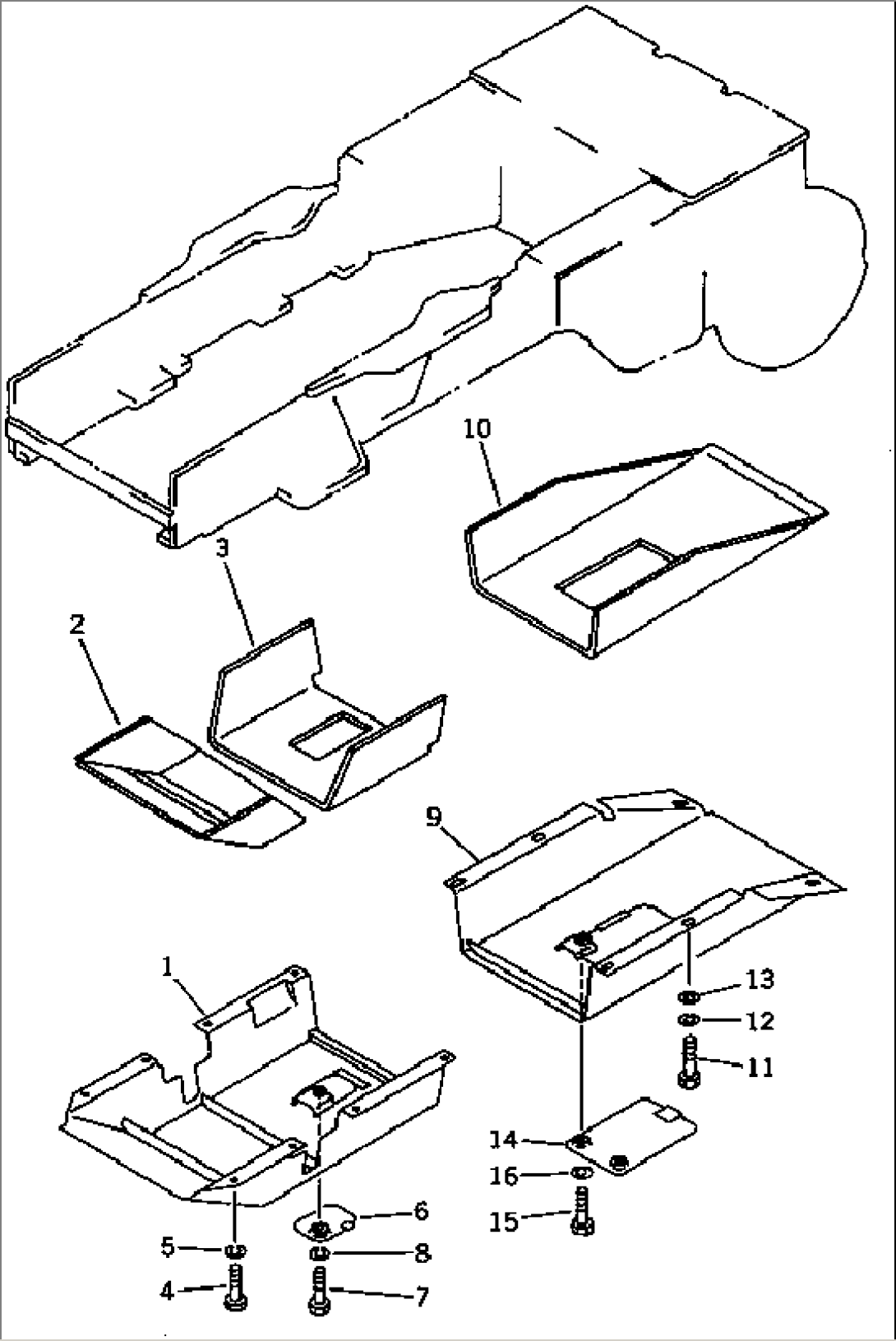

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 113-54-49240 | GUARD,FRONT | 41759- | |
| 1 | 04431-11000 | CLIP (WELDED) | 41759- | |
| 1 | 04431-30000 | PLATE | 41759- | |
| 2 | 113-A62-2350 | SHEET | 41759- | |
| 3 | 113-C62-1170 | SHEET | 41759- | |
| 4 | 01010-51435 | BOLT | 41759- | |
| 5 | 01602-21442 | WASHER,SPRING | 41759- | |
| 6 | 113-54-25120 | COVER | 41759- | |
| 7 | 01010-51025 | BOLT | 41759- | |
| 8 | 01602-21030 | WASHER,SPRING | 41759- | |
| 9 | 113-54-49250 | GUARD,REAR | 41759- | |
| 9 | 04431-11000 | CLIP (WELDED) | 41759- | |
| 9 | 04431-30000 | PLATE | 41759- | |
| 10 | 113-A62-2430 | SEAT | 41759- | |
| 11 | 01010-51435 | BOLT | 41759- | |
| 12 | 01602-21442 | WASHER,SPRING | 41759- | |
| 13 | 01643-31445 | WASHER | 41759- | |
| 14 | 113-54-25140 | COVER | 41759- | |
| 15 | 01010-51025 | BOLT | 41759- | |
| 16 | 01602-21030 | WASHER,SPRING | 41759- |
