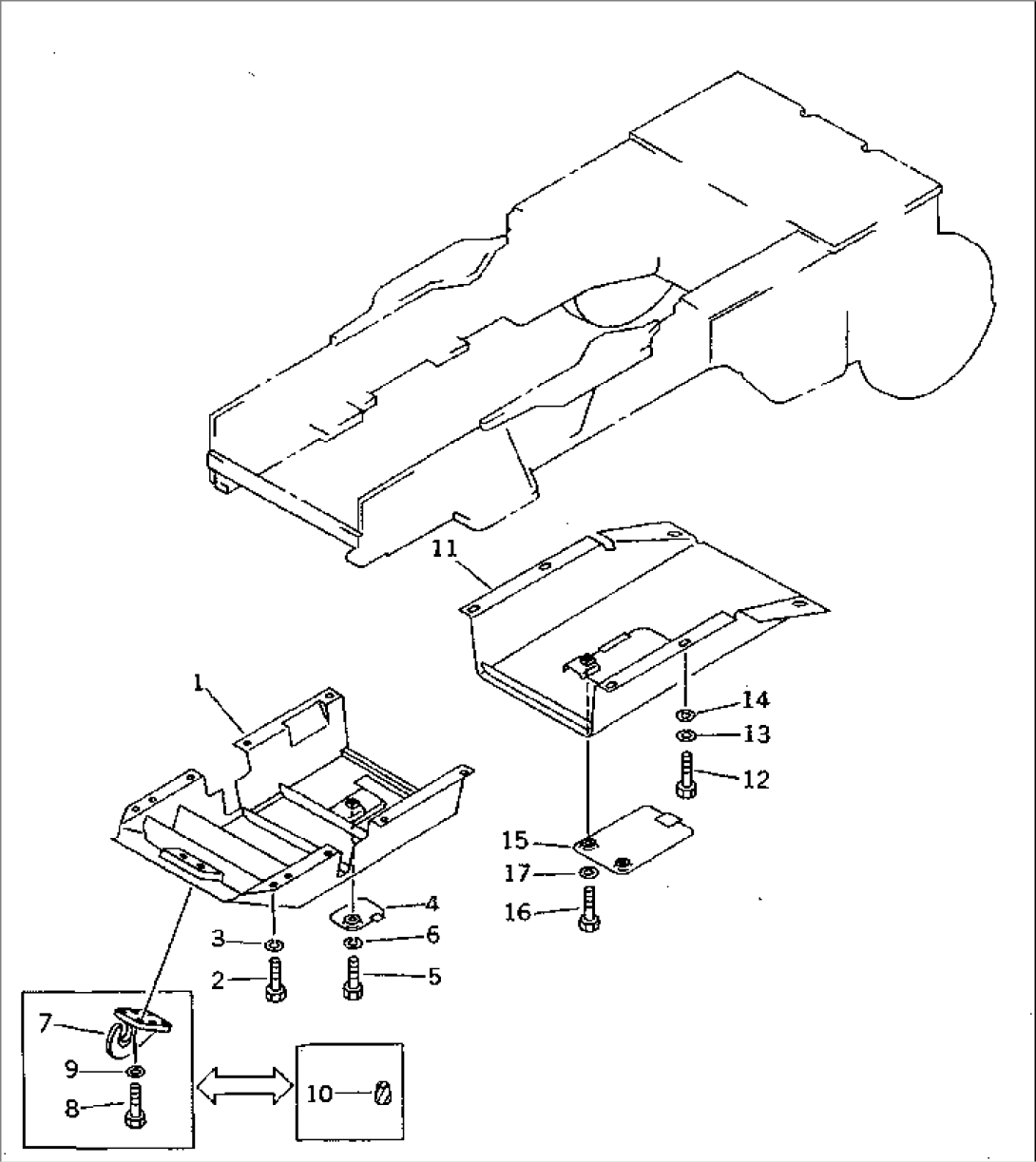

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 113-54-45210 | GUARD,FRONT | 45001-47616 | |
| 2 | 01010-81435 | BOLT | 45001-@ | |
| 3 | 01602-21442 | WASHER,SPRING | 45001-@ | |
| 4 | 113-54-25230 | COVER | 45001-47616 | |
| 5 | 01010-81025 | BOLT | 45001-@ | |
| 6 | 01602-21030 | WASHER,SPRING | 45001-@ | |
| 7 | 111-944-1110 | HOOK | 45001-@ | |
| 8 | 01010-81450 | BOLT | 45001-@ | |
| 9 | 01643-31445 | WASHER | 45001-@ | |
| 10 | 07049-01418 | PLUG | 45001-@ | |
| 11 | 11G-54-45110 | GUARD,REAR | 45001-47616 | |
| 12 | 01010-81435 | BOLT | 45001-@ | |
| 13 | 01602-21442 | WASHER,SPRING | 45001-@ | |
| 14 | 01643-31445 | WASHER | 45001-@ | |
| 15 | 113-54-25140 | COVER | 45001-@ | |
| 16 | 01010-81025 | BOLT | 45001-@ | |
| 17 | 01602-21030 | WASHER,SPRING | 45001-@ |
