| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-971-2110 | GUARD | 50001- | |
| 2 | 423-971-1120 | COVER | 50001- | |
| 3 | 01435-01255 | BOLT | 50001- | |
| 4 | 01435-01225 | BOLT | 50001- | |
| 5 | 01643-31232 | WASHER | 50001- | |
| 6 | 01580-11210 | NUT | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa380 3 s/n 50001 52999 (overseas version)
- Frame and guard
- Under guard(#50001 )
Поиск по каталогу

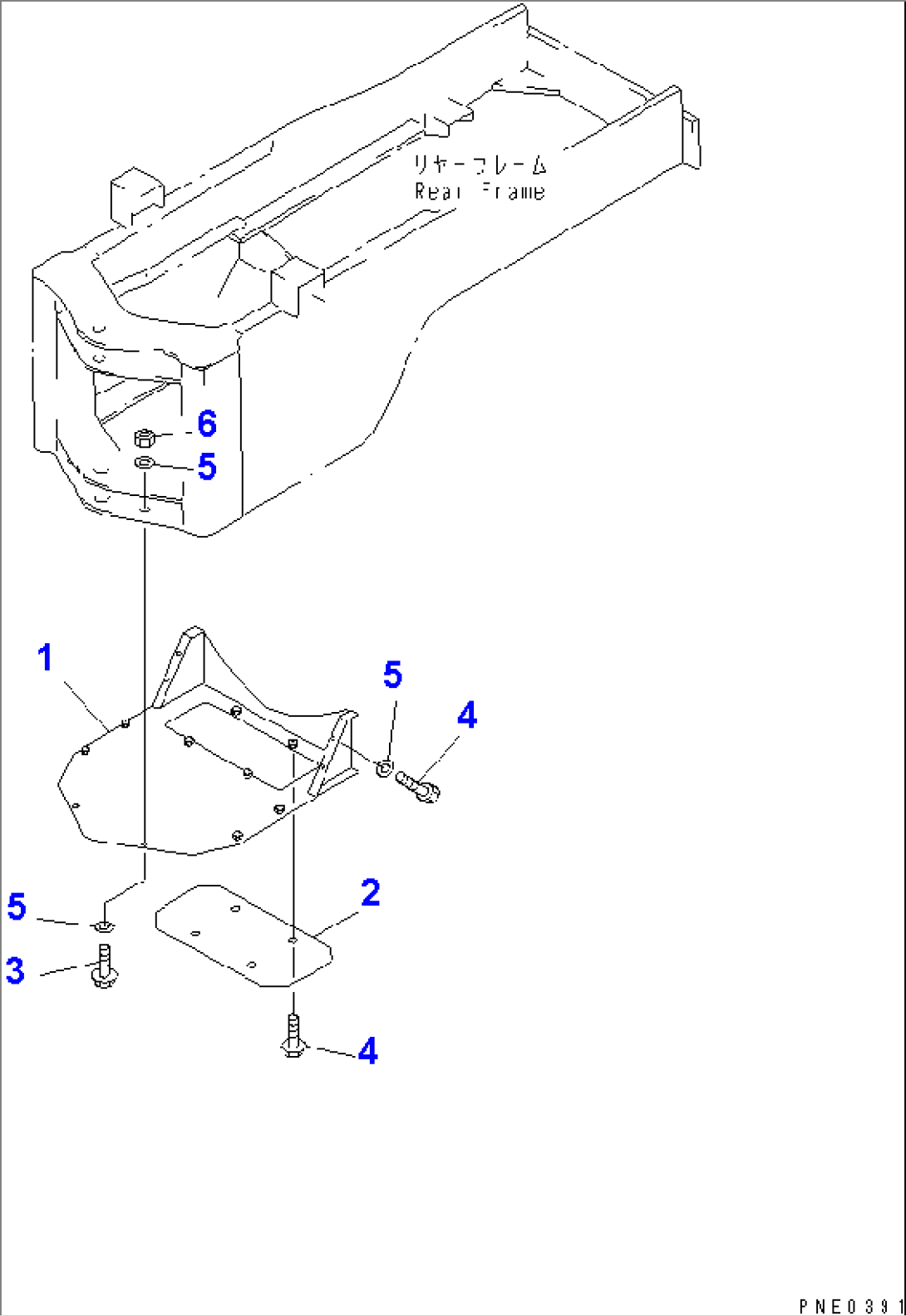

UNDER GUARD(#50001-)
