| Item | Part No. | Part Name | Qty | Serial No. |
| 561-20-41000 | UNIVERSAL JOINT A. | 1501- | ||
| 1 | 562-20-11100 | SPIDER ASS'Y | 1501- | |
| 2 | 411-20-11322 | FITTING | 1501- | |
| 3 | 561-20-41200 | SHAFT | 1501- | |
| 4 | 510-20-12810 | BOLT | 1501- | |
| 5 | 01582-01411 | NUT | 1501- | |
| 6 | 561-20-11810 | BOLT | 1501- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 2 s/n 1501 up
- Torque convertor and transmission
- Universal joint (for komatsu engine)
Поиск по каталогу

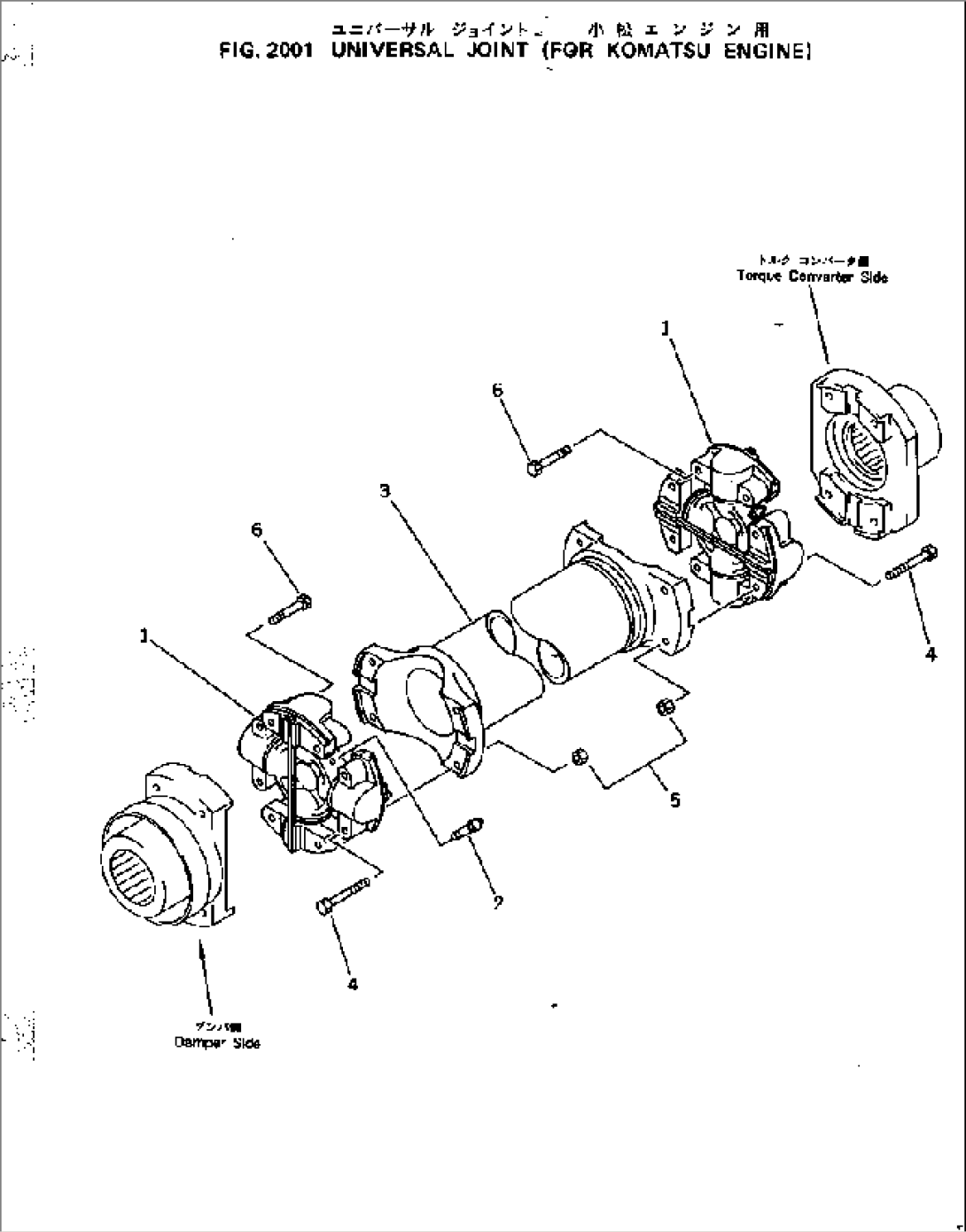

UNIVERSAL JOINT (FOR KOMATSU ENGINE)
