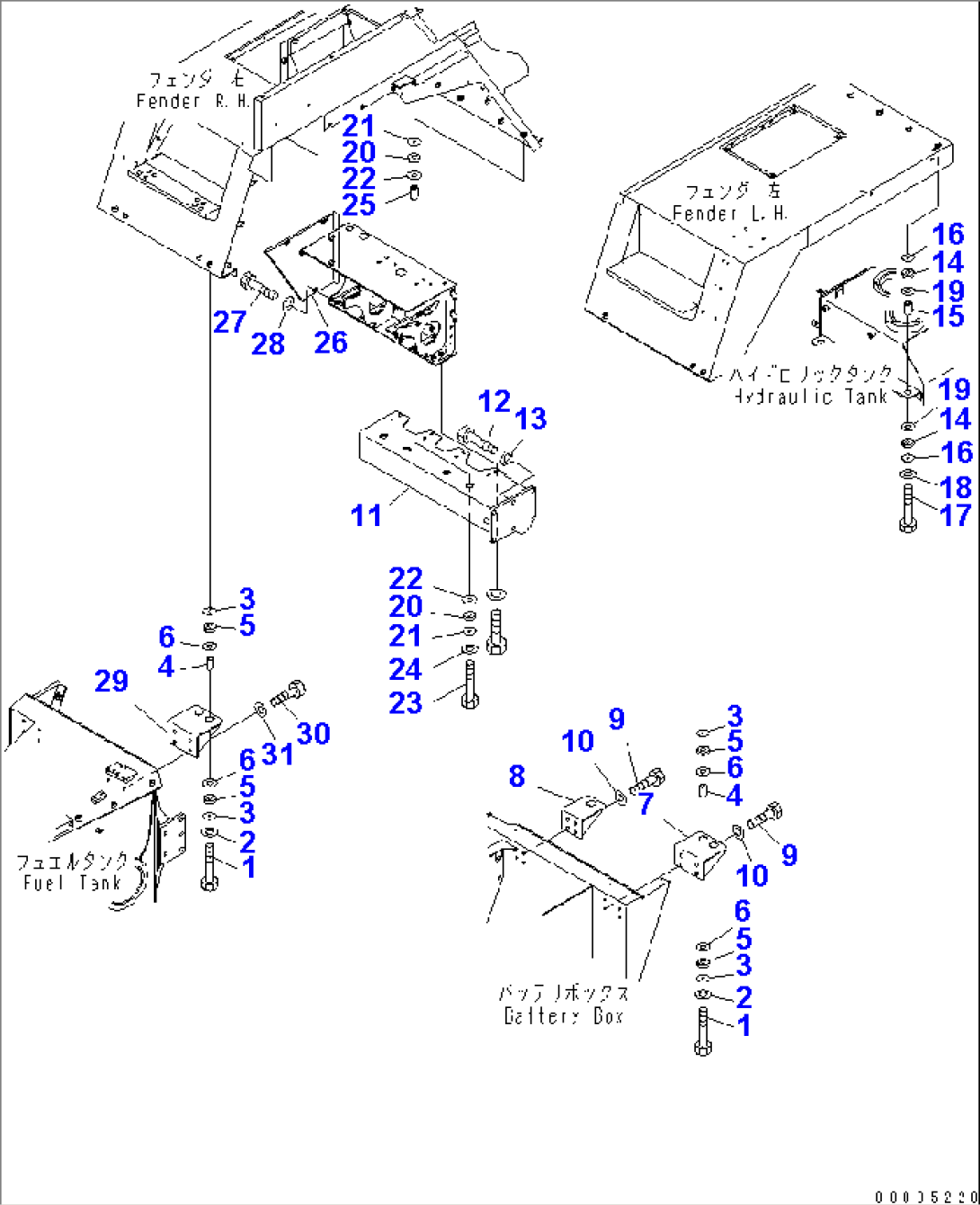

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81270 | BOLT | 2001- | |
| 2 | 01643-31232 | WASHER | 2001- | |
| 3 | 416-03-11210 | WASHER | 2001- | |
| 4 | 6142-22-4640 | SPACER | 2001- | |
| 5 | 416-03-11221 | CUSHION | 2001- | |
| 6 | 56B-54-11590 | SPACER | 2001- | |
| 7 | 56B-54-12A10 | BRACKET | 2217- | |
| 8 | 56B-54-12A20 | BRACKET | 2217- | |
| 9 | 01010-81225 | BOLT | 2217- | |
| 10 | 01643-31232 | WASHER | 2217- | |
| 11 | 56B-54-25190 | BRACKET | 2207- | |
| 12 | 01010-81645 | BOLT | 2001- | |
| 13 | 01643-31645 | WASHER | 2001- | |
| 14 | 416-03-11221 | CUSHION | 2001- | |
| 15 | 6142-22-4640 | SPACER | 2001- | |
| 16 | 416-03-11210 | WASHER | 2001- | |
| 17 | 01010-81270 | BOLT | 2001- | |
| 18 | 01643-31232 | WASHER | 2001- | |
| 19 | 56B-54-11590 | SPACER | 2001- | |
| 20 | 416-03-11221 | CUSHION | 2001- | |
| 21 | 416-03-11210 | WASHER | 2001- | |
| 22 | 56B-54-19120 | SPACER | 2001- | |
| 23 | 01010-81270 | BOLT | 2001- | |
| 24 | 01643-31232 | WASHER | 2001- | |
| 25 | 6142-22-4640 | SPACER | 2001- | |
| 26 | 56B-54-22810 | COVER | 2001- | |
| 27 | 01010-81050 | BOLT | 2001- | |
| 28 | 01643-31032 | WASHER | 2001- | |
| 29 | 56B-54-12A40 | BRACKET | 2217- | |
| 30 | 01010-81225 | BOLT | 2217- | |
| 31 | 01643-31232 | WASHER | 2217- |
