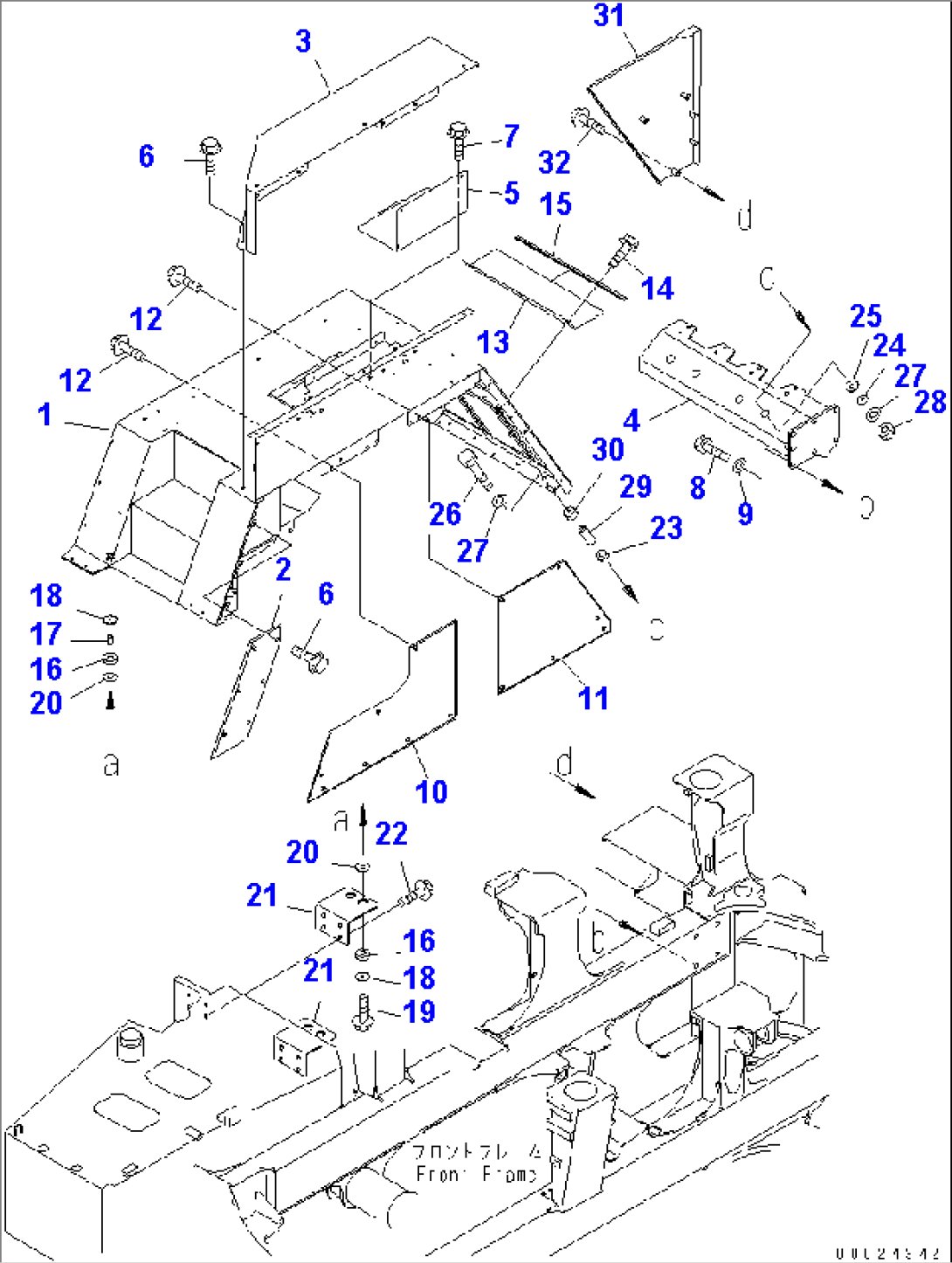

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-12127 | FENDER,R.H. | 1090- | |
| 2 | 56B-54-12141 | COVER | 1001- | |
| 3 | 56B-54-12153 | COVER | 1038- | |
| 4 | 56B-54-12193 | BRACKET | 1090- | |
| 5 | 56B-54-12172 | COVER | 1001- | |
| 6 | 01435-01220 | BOLT | 1001- | |
| 7 | 01435-01016 | BOLT | 1001- | |
| 8 | 01010-81645 | BOLT | 1001- | |
| 9 | 01643-31645 | WASHER | 1001- | |
| 10 | 56B-54-12242 | COVER | 1038- | |
| 11 | 56B-54-12252 | COVER | 1038- | |
| 12 | 01435-01020 | BOLT | 1001- | |
| 13 | 56B-54-12262 | COVER | 1001- | |
| 14 | 01435-01020 | BOLT | 1001- | |
| 15 | 56B-54-12830 | SEAL | 1001- | |
| 16 | 416-03-11221 | CUSHION | 1001- | |
| 17 | 6142-22-4640 | SPACER | 1001- | |
| 18 | 416-03-11210 | WASHER | 1001- | |
| 19 | 01435-01265 | BOLT | 1001- | |
| 20 | 56B-54-11590 | SPACER | 1002- | |
| 21 | 56B-54-12A40 | BRACKET | 1001- | |
| 22 | 01435-01220 | BOLT | 1001- | |
| 23 | 416-03-11221 | CUSHION | 1090- | |
| 24 | 416-03-11210 | WASHER | 1090- | |
| 25 | 56B-54-19120 | SPACER | 1090- | |
| 26 | 01010-81290 | BOLT | 1090- | |
| 27 | 01643-31232 | WASHER | 1090- | |
| 28 | 01580-11210 | NUT | 1090- | |
| 29 | 6142-22-4640 | SPACER | 1090- | |
| 30 | 56B-54-19110 | SPACER | 1090- | |
| 31 | 56B-54-12811 | COVER,R.H. | 1038- | |
| 32 | 01435-01045 | BOLT | 1001- |
