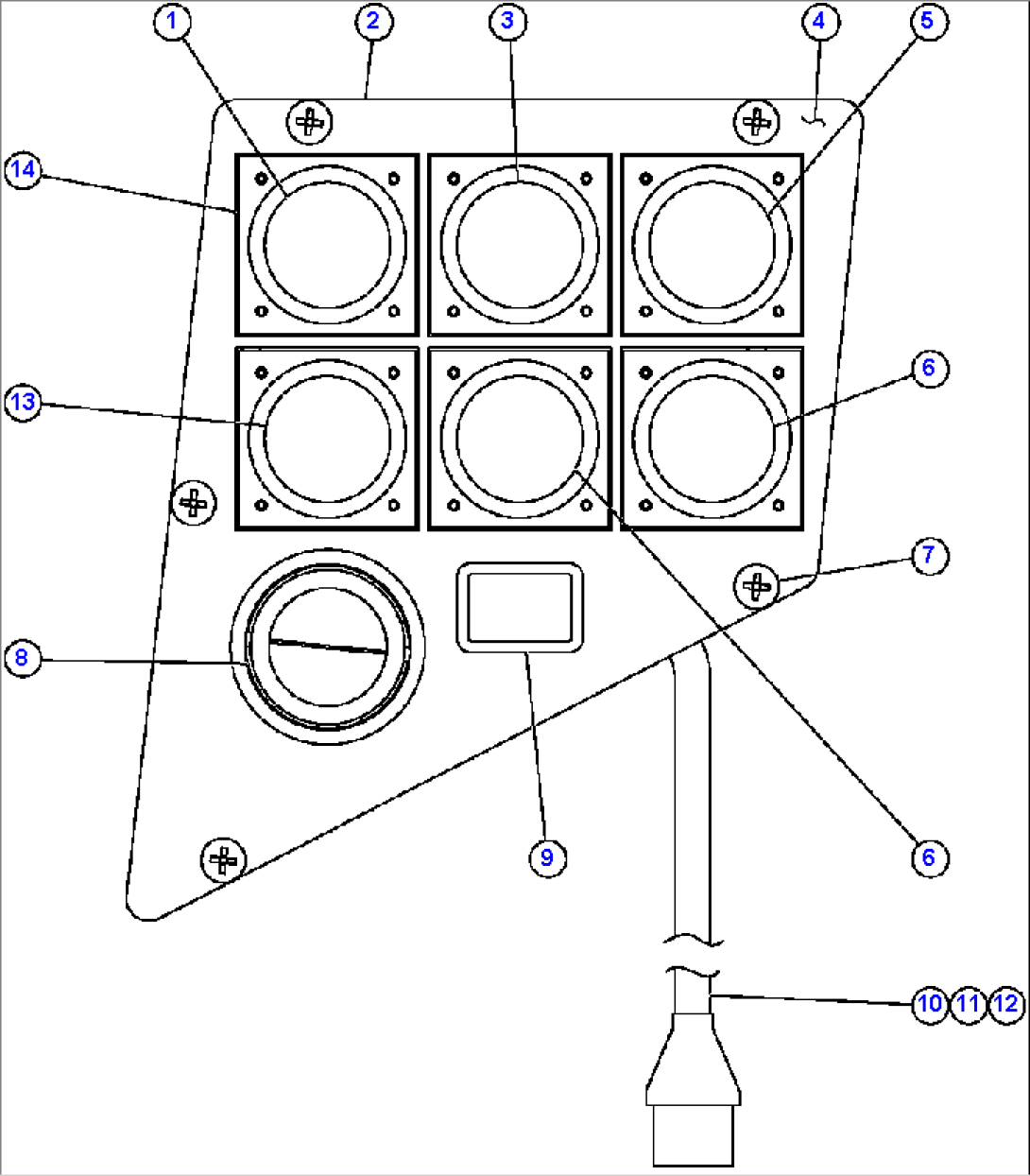

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB6303 | GAUGE, WATER TEMPERATURE | ||
| 2 | SM4358 | PLATE, MOUNTING | ||
| 3 | PB8551 | GAUGE, OIL PRESSURE | ||
| 4 | SM2722 | OVERLAY, LEXAN | ||
| 5 | PB6927 | VOLTMETER | ||
| 6 | PB6982 | INSERT, BLANK | ||
| 7 | PB7903 | BALL, LOUVER | ||
| 8 | SM0926 | SCREW, PAN - M6 X 1.00 | ||
| 9 | SM2785 | HOURMETER | ||
| 10 | EG4130 | HARNESS, GAUGE PANEL | ||
| 11 | VH5017 | TYRAP | ||
| 12 | VZ5080 | BULB | ||
| 13 | PB6926 | GAUGE, FUEL LEVEL | ||
| 14 | PB6401 | OVERLAY, BEZEL | ||
| 14 | (NOT SERVICED AS AN ASSEMBLY. | |||
| 14 | ORDER INDIVIDUAL COMPONENT PARTS.) |
