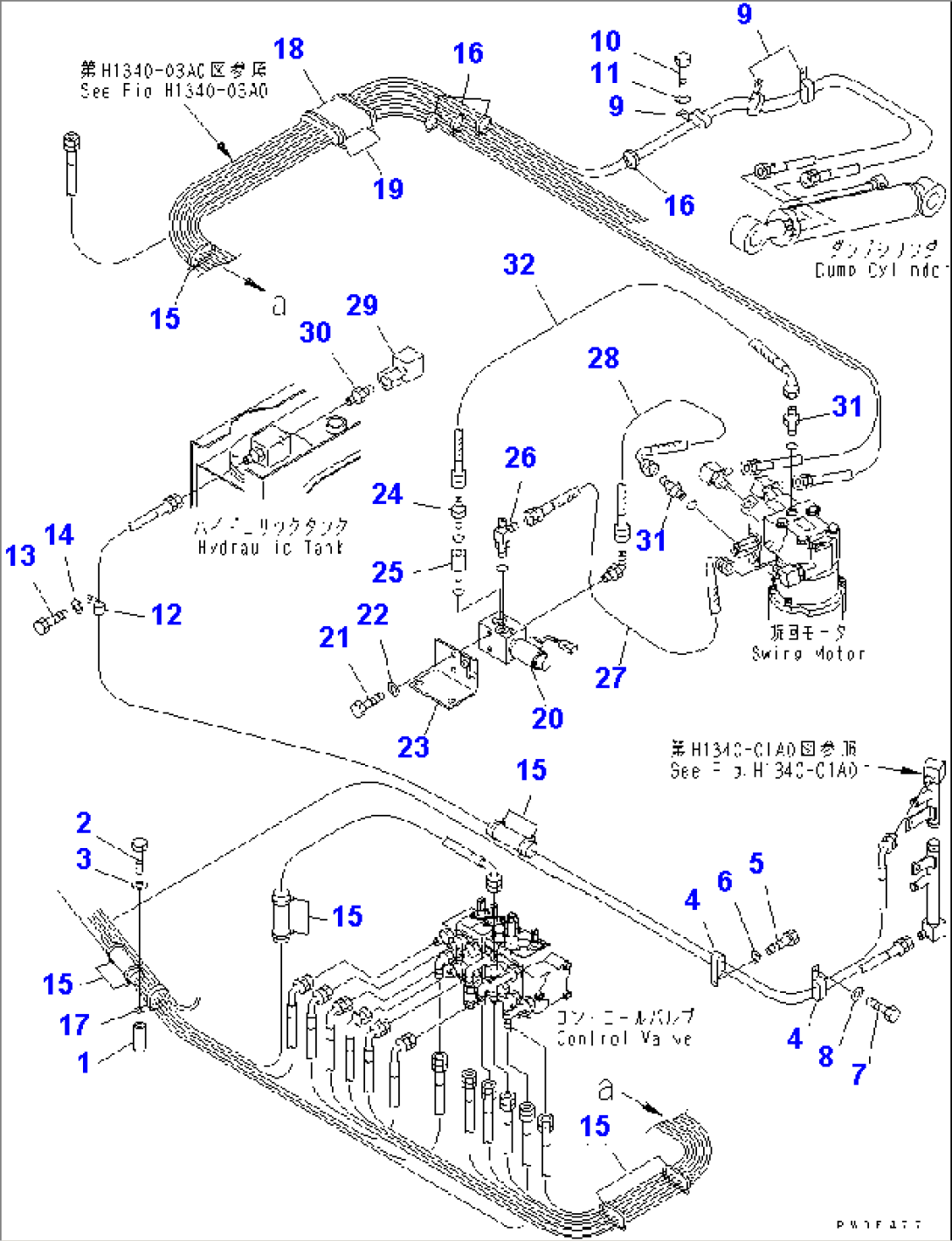

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6152-51-5520 | SPACER | 1027- | |
| 2 | 01010-81065 | BOLT | 1027- | |
| 3 | 01643-31032 | WASHER | 1027- | |
| 4 | 04435-52210 | CLIP | 1027- | |
| 5 | 01010-81016 | BOLT | 1027- | |
| 6 | 01643-31032 | WASHER | 1027- | |
| 7 | 01010-80816 | BOLT | 1027- | |
| 8 | 01643-30823 | WASHER | 1027- | |
| 9 | 04435-51810 | CLIP | 1027- | |
| 10 | 01010-81016 | BOLT | 1027- | |
| 11 | 01643-31032 | WASHER | 1027- | |
| 12 | 04434-51810 | CLIP | 1027- | |
| 13 | 01010-81016 | BOLT | 1027- | |
| 14 | 01643-31032 | WASHER | 1027- | |
| 15 | 08034-20536 | BAND | 1027- | |
| 16 | 08034-40521 | BAND | 1027- | |
| 17 | 208-62-38410 | CLIP | 1027- | |
| 18 | 10B-62-11521 | SHEET | 1027- | |
| 19 | 08034-20834 | BAND | 1027- | |
| 20 | 10B-60-11160 | VALVE | 1027- | |
| 21 | 01010-80816 | BOLT | 1027- | |
| 22 | 01643-30823 | WASHER | 1027- | |
| 23 | 10B-62-11530 | BRACKET | 1027- | |
| 24 | 13S-62-11840 | NIPPLE | 1027- | |
| 25 | 22U-62-13480 | ADAPTER | 1027- | |
| 26 | 23S-61-35980 | TEE | 1027- | |
| 27 | 10B-62-11620 | HOSE ASS'Y | 1027- | |
| 28 | 10B-62-11540 | HOSE ASS'Y | 1027- | |
| 29 | 10B-62-11550 | JOINT | 1027- | |
| 30 | 07238-10422 | CONNECTOR | 1027- | |
| 31 | 20N-62-31250 | NIPPLE | 1027- | |
| 32 | 10B-62-11610 | HOSE ASS'Y | 1027- |
