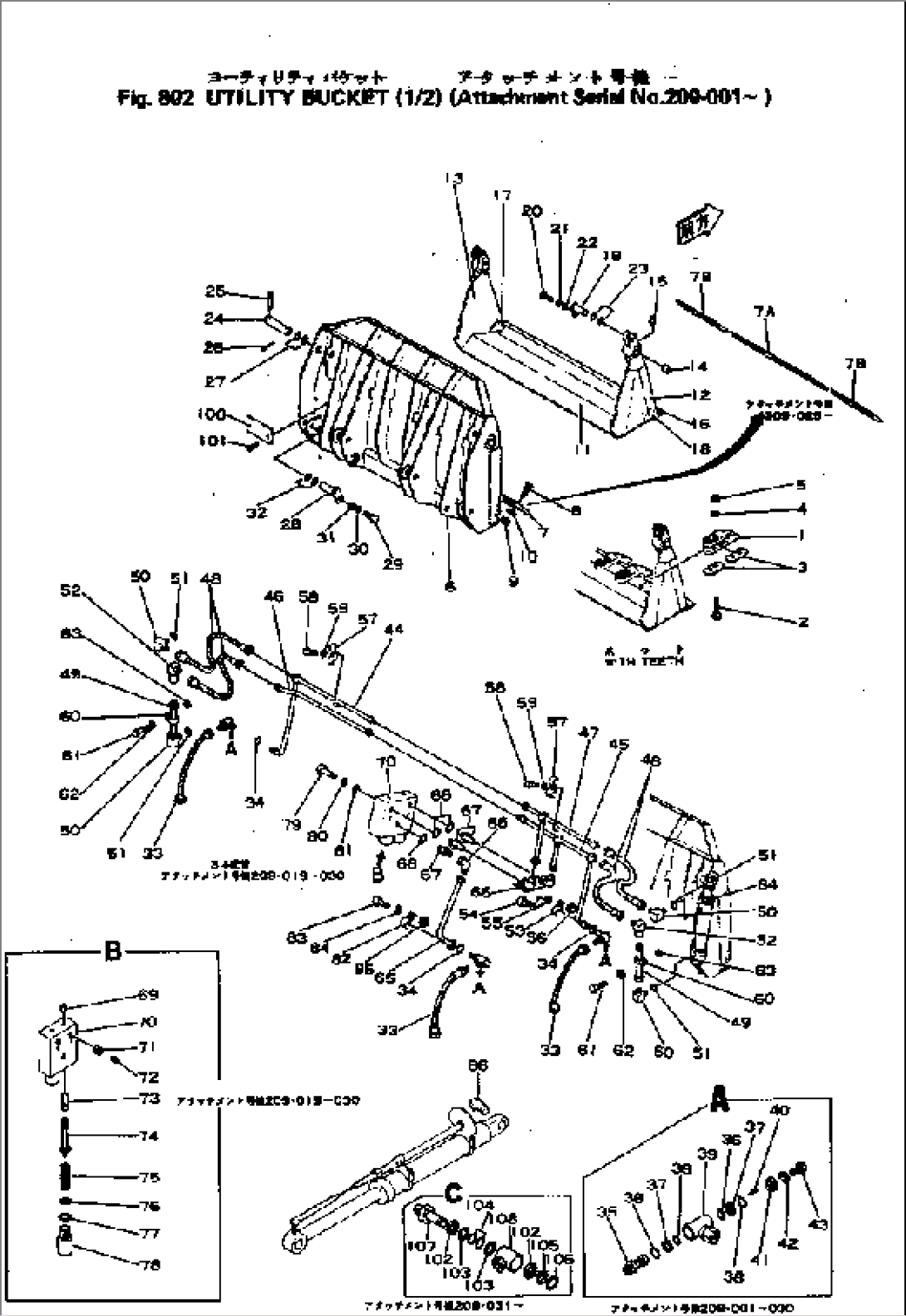

UTILITY BUCKET (1/2)

UTILITY BUCKET (1/2)
ItemPart No.Part NameQtySerial No.
381-897000-2BUCKET ASS'Y,0.85M3 (WITH TOOTH)(031)-
380-889667-1BUCKET ASS'Y,0.85M3 (WITH TOOTH)(019)-(030)
380-219730-1BUCKET ASS'Y,0.85M3 (WITH TOOTH)(001)-(018)
380-885625-5TOOTH ASS'Y(031)-
\0\380-885625-4TOOTH ASS'Y(022)-(030)
\0\380-885625-3TOOTH ASS'Y(009)-(021)
\0\380-885625-1TOOTH ASS'Y(001)-(008)
1381-971769-1TOOTH(031)-
380-885626-4TOOTH(022)-(030)
\0\380-885626-3TOOTH(009)-(021)
\0\380-885626-1TOOTH(001)-(008)
2381-971700-1BOLT(031)-
380-889892-1BOLT(019)-(030)
\0\380-S21224-8SCREW(001)-(018)
3381-975831-1SHIM¤ 0.5MM.-
380-885607-1SHIM¤ 1.0MM(001)-.
4380-888482-1WASHER(009)-
\0\380-WF312-00WASHER(001)-(008)
5380-H2121-00NUT(031)-
380-885671-1NUT(001)-(030)
381-898978-2BUCKET ASS'Y(031)-
380-889666-1BUCKET ASS'Y(019)-(030)
\0\380-887482-1BUCKET ASS'Y(001)-(018)
6381-898977-1BLADE(031)-
380-219770-2BLADE(019)-(030)
\0\380-219770-1BLADE(001)-(018)
7380-219721-1EDGE(001)-(024)
7A380-219722-2EDGE(043)-
\0\380-219722-1EDGE(025)-(042)
7B381-877904-2EDGE(043)-
\0\381-877904-1EDGE(025)-(042)
8380-219695-1BOLT(001)-
9380-H212-000NUT(001)-
10380-WL112-00WASHER(001)-
11380-219771-2CLAM ASS'Y(031)-
\0\380-219771-1CLAM(001)-(030)
12380-887487-1EDGE(001)-
13380-887486-1EDGE(001)-
14380-158842-1BUSHING(001)-
15380-118492-1FITTING(001)-
16380-887492-2EDGE(031)-
\0\380-887492-1EDGE(001)-(030)
17380-887496-1GUSSET(001)-
18380-887495-1GUSSET(001)-
19380-157509-1PIN(001)-
20380-S186-000SCREW(001)-
21380-WL18-000WASHER(001)-
22380-WF18-000WASHER(001)-
23380-172143-1RING(001)-
24380-888091-1PIN(001)-
25380-215860-1PIN(001)-
26380-CP47-000PIN(001)-
27380-172143-1RING(001)-
28380-888058-1PIN(001)-
29380-S186-000SCREW(001)-
30380-WL18-000WASHER(001)-
31380-WF18-000WASHER(001)-
32380-160529-1RING(001)-
33380-887503-1HOSE(031)-
380-887503-1HOSE(019)-(030)
380-887503-1HOSE(001)-(018)
34380-OR212-00O-RING(031)-
380-OR212-00O-RING(019)-(030)
380-OR212-00O-RING(001)-(018)
380-143685-2SWIVEL ASS'Y(019)-(030)
380-143685-2SWIVEL ASS'Y(001)-(018)
35380-886329-2STEM(001)-(030)
36380-888974-1O-RING(001)-(030)
37380-886332-1RING(001)-(030)
38380-OR423-00O-RING(001)-(030)
39380-886328-3BODY(001)-(030)
40380-886331-1PIN(001)-(030)
41380-886330-1GUARD(001)-(030)
42380-WL14-000WASHER(001)-(030)
43380-S244-000BOLT(001)-(030)
44381-898970-1TUBE(031)-
380-889566-1TUBE(019)-(030)
380-887499-1TUBE(001)-(018)
45381-898973-1TUBE(031)-
380-889527-1TUBE(019)-(030)
380-887500-1TUBE(001)-(018)
46381-898971-1TUBE(031)-
380-887501-1TUBE(001)-(030)
47381-898972-1TUBE(031)-
380-889528-1TUBE(019)-(030)
380-887501-1TUBE(001)-(018)
48380-196871-1HOSE(001)-
49380-219865-1TUBE(001)-
50380-029110-0ELBOW(001)-
51380-OR210-00O-RING(001)-
52380-029010-0ELBOW(001)-
53380-887505-1CLAMP(001)-
54380-S1511-00BOLT(001)-
55380-WL15-000WASHER(001)-
56380-H15-0000NUT(001)-
57380-887504-1CLAMP(001)-
58380-S158-000BOLT(001)-
59380-WL15-000WASHER(001)-
60380-887507-1CLAMP(001)-
61380-S157-000SCREW(001)-
62380-WL15-000WASHER(001)-
63380-H15-0000NUT(001)-
64(380-219726-1)CYLINDER ASS'Y,(SEE FIG.803)(001)-
65380-889526-1TUBE(019)-(030)
66380-029010-0ELBOW(019)-(030)
67380-020510-0ADAPTER(031)-
380-889157-1ADAPTER(019)-(030)
68380-OR210-00O-RING(031)-
380-OR214-00O-RING(019)-(030)
380-889158-1RELIEF VALVE ASS'Y(019)-(030)
69380-P42-0000PLUG(019)-(030)
70\6\HOUSING(019)-(030)
71380-889165-1SCREW(019)-(030)
72380-P42-0000PLUG(019)-(030)
73\6\SLEEVE(019)-(030)
74\6\POPPET(019)-(030)
75380-889163-1SPRING(019)-(030)
76380-WF36-000WASHER(019)-(030)
77380-OR421-00O-RING(019)-(030)
78380-889160-1CAP(019)-(030)
79380-S1618-00SCREW(031)-
380-S268-000BOLT(019)-(030)
80380-WL16-000WASHER(001)-
81380-WF16-000WASHER(019)-(030)
82380-889567-1CLAMP(019)-(030)
83380-S1511-00BOLT(019)-(030)
84380-WL15-000WASHER(019)-(030)
85380-H15-0000NUT(019)-(030)
86380-889670-1DECAL(003)-
380-219979-1RELIEF VALVE ASS'Y(031)-
87\6\HOUSING(031)-
88380-220458-1SLEEVE(031)-
89380-220459-1POPPET(031)-
90380-220455-1SPRING(031)-
91380-220456-1GUIDE(031)-
92380-OR47-000O-RING(031)-
93380-OR210-00O-RING(031)-
94380-220457-1NUT(031)-
95380-220454-1NUT(031)-
95A380-220460-1SCREW(031)-
96380-124529-1NUT(031)-
97380-215073-1NUT(031)-
98380-021212-0PLUG(031)-
99380-OR212-00O-RING(031)-
100381-898523-1PLATE(004)-
101381-897040-1SCREW(004)-
381-975202-1SWIVEL ASS'Y(031)-
102381-975203-1SEAL(031)-
103381-975204-1RING(031)-
104381-975205-1O-RING(031)-
105381-975207-1WASHER(031)-
106381-975206-1RING(031)-
107\6\SHAFT(031)-
108\6\ROTAR(031)-
