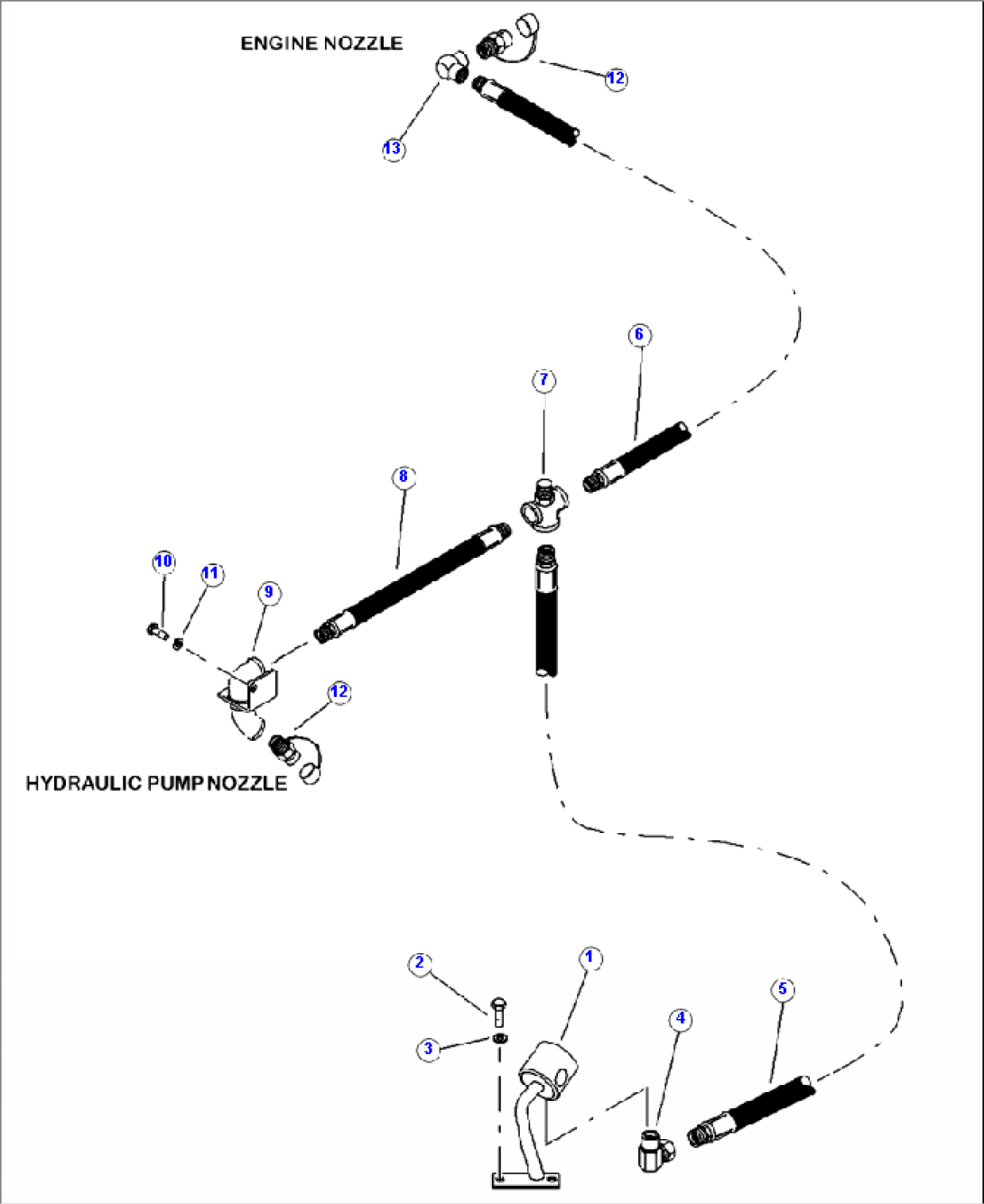

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TEE, DISTRIBUTION ( SEE FIG. V0100-07A0 ) | |||
| 2 | 11707KF | BOLT (3/8 IN x 1 IN) | ||
| 3 | 15528KF | WASHER, SAE FLAT (3/8 IN) | ||
| 4 | 10359KF | ELBOW | ||
| 5 | 28570KF | HOSE ASSEMBLY | ||
| 6 | 28566KF | HOSE ASSEMBLY | ||
| 7 | 28561KF | MANIFOLD, FIRE SUPPRESSION DISTRIBUTION | ||
| 8 | 28568KF | HOSE ASSEMBLY | ||
| 9 | 18769KF | MANIFOLD, FIRE SUPPRESSION | ||
| 10 | 11707KF | BOLT (3/8 IN x 1 IN) | ||
| 11 | 15528KF | WASHER, SAE FLAT (3/8 IN) | ||
| 12 | 16775 | NOZZLE | ||
| 13 | (NSS) | FITTING, WELDED | ||
| F1 - THIS PART IS AVAILABLE FROM AUTHORIZED ANSUL DISTRIBUTORS ONLY. |
