| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-01001) | TORQFLOW ASS'Y | 1059- | ||
| \0\569-15-01000 | TORQFLOW ASS'Y | 1002-1058 | ||
| (569-15-00010) | TRANSMISSION ASS'Y | 1002- | ||
| (569-15-00500) | VALVE ASS'Y | 1002- | ||

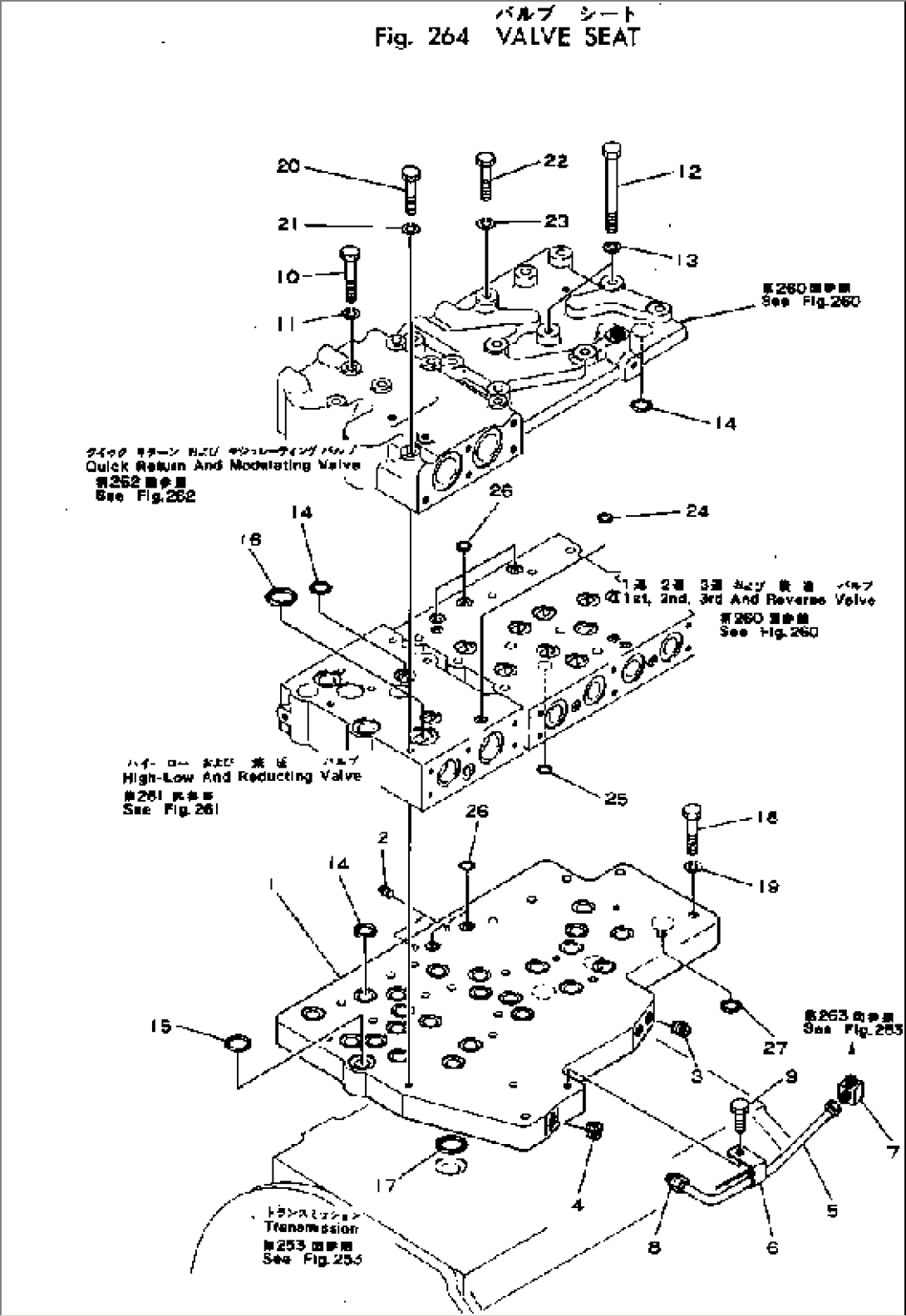

| 569-15-00510 | SEAT ASS'Y | 1002- | ||
| 1 | \6\ | SEAT | 1002- | |
| 2 | 07042-00108 | PLUG | 1002- | |
| 3 | 07042-00312 | PLUG | 1002- | |
| 4 | 07043-00415 | PLUG | 1002- | |
| 5 | 569-15-15751 | TUBE | 1002- | |
| 6 | 569-15-15991 | CLAMP | 1002- | |
| 7 | 568-13-16750 | ELBOW | 1002- | |
| 8 | 07213-50813 | CONNECTOR | 1002- | |
| 9 | 01010-51025 | BOLT | 1002- | |
| 10 | 01011-51035 | BOLT | 1002- | |
| 11 | 01602-21030 | WASHER | 1002- | |
| 12 | 01010-51095 | BOLT | 1002- | |
| 13 | 01602-21030 | WASHER | 1002- | |
| 14 | 07000-62021 | O-RING | 1002- | |
| 15 | 07000-63025 | O-RING | 1002- | |
| 16 | 07000-63030 | O-RING | 1002- | |
| 17 | 07000-63038 | O-RING | 1002- | |
| 18 | 01010-51045 | BOLT | 1002- | |
| 19 | 01602-21030 | WASHER | 1002- | |
| 20 | 01011-51060 | BOLT | 1002- | |
| 21 | 01602-21030 | WASHER | 1002- | |
| 22 | 01011-51020 | BOLT | 1002- | |
| 23 | 01602-21030 | WASHER | 1002- | |
| 24 | 07000-61009 | O-RING | 1002- | |
| 25 | 07000-62012 | O-RING | 1002- | |
| 26 | 07000-62014 | O-RING | 1002- | |
| 27 | 07000-62021 | O-RING | 1002- |
