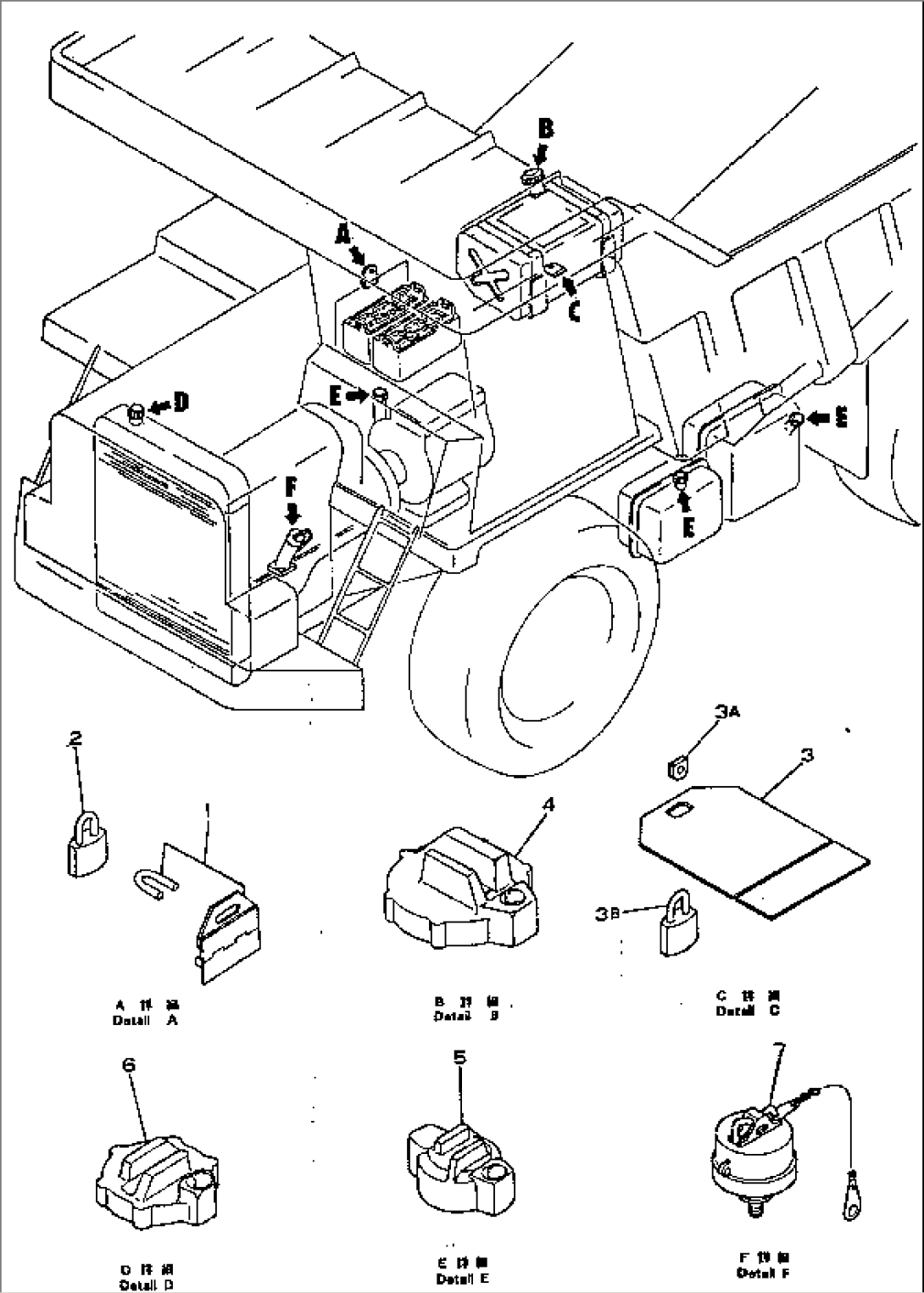

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-95-37110 | LOCK ASS'Y | 1002- | |
| 2 | 09460-00002 | LOCK | 1002- | |
| 566-95-37120 | LOCK ASS'Y | 1002- | ||
| 3 | 566-95-37130 | HINGE | 1002- | |
| 3A | 566-95-37140 | PLATE | 1002- | |
| 3B | 09460-00002 | LOCK | 1002- | |
| 4 | 07091-01200 | CAP | 1002- | |
| 5 | 07092-00000 | CAP | 1002- | |
| 6 | 07093-00000 | CAP | 1002- | |
| 7 | 600-031-1030 | CAP ASS'Y | 1002- | |
| 7 | 600-031-1040 | CAP | 1002- | |
| 7 | 600-031-1090 | LOCK | 1002- |
