| Item | Part No. | Part Name | Qty | Serial No. |

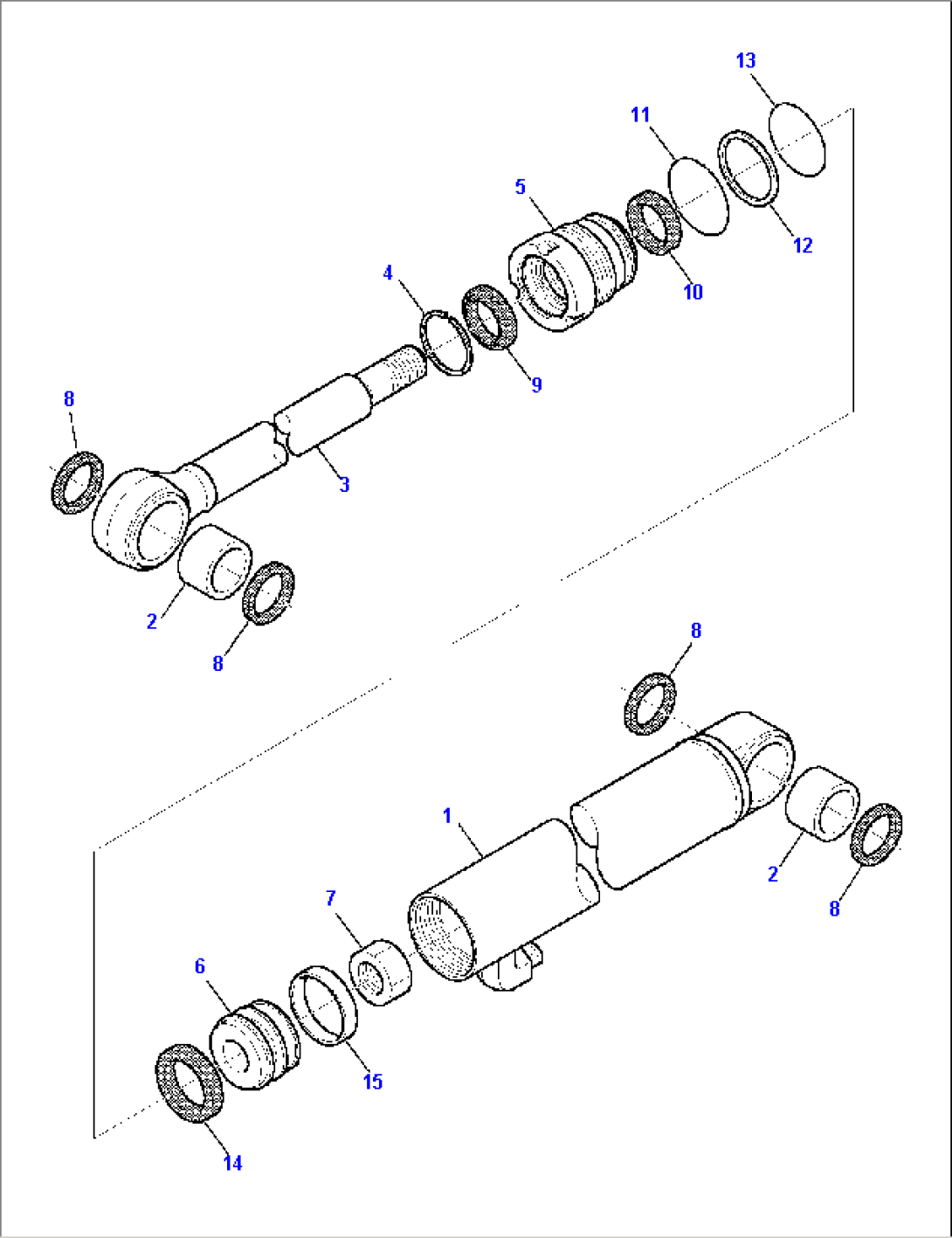

| \0 | 3F0726062 | VARIABLE GAUGE UNDERCARRIAGE CYLINDER, ASSY. | F31605- | |
| 1 | 3F0726063 | CYLINDER | F31605- | |
| 2 | 3F0588605 | BUSHING | F31605- | |
| 3 | 3F0726064 | PISTON ROD | F31605- | |
| 4 | 855661161 | RING, SNAP | F31605- | |
| 5 | 3F0588606 | CYLINDER HEAD | F31605- | |
| 6 | 3F0588601 | PISTON | F31605- | |
| 7 | 801920111 | NUT | F31605- | |
| \7 | 878000498 | KIT, GASKET | F31605- | |
| 8 | \6\ | GASKET | F31605- | |
| 9 | \6\ | GASKET | F31605- | |
| 10 | \6\ | GASKET | F31605- | |
| 11 | \6\ | O-RING | F31605- | |
| 12 | \6\ | RING, WEAR | F31605- | |
| 13 | \6\ | O-RING | F31605- | |
| 14 | \6\ | GASKET | F31605- | |
| 15 | \6\ | PACKING ROD | F31605- |
