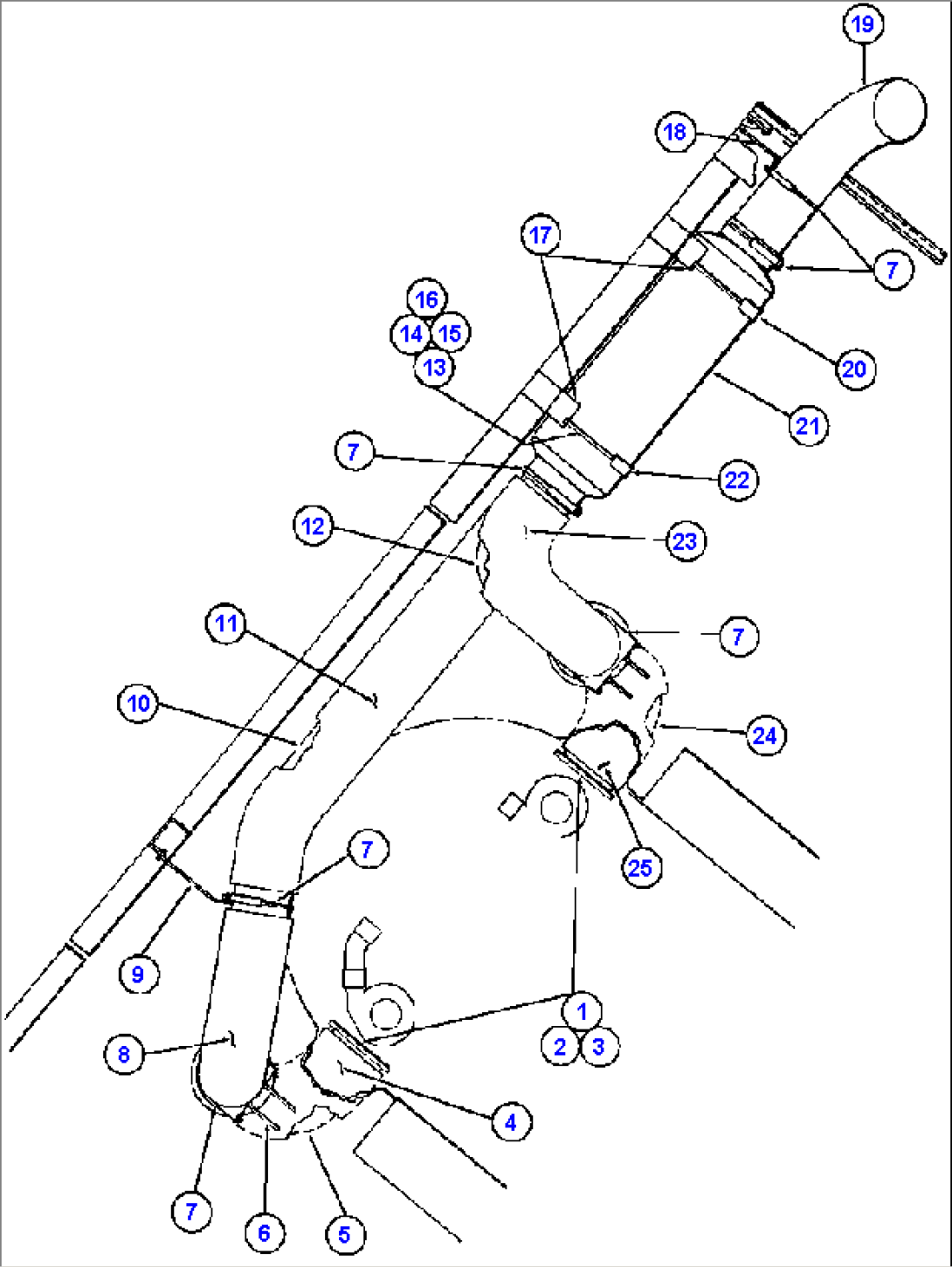

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | C1617 | CAPSCREW - 1/2" - 13NC X 2 1/4" | ||
| 2 | C1540 | LOCKWASHER - 1/2" | ||
| 3 | C1523 | NUT - 1/2" - 13NC | ||
| 4 | PB7223 | BLANKET, EXHAUST | ||
| 5 | TY4571 | EXHAUST TUBE - L.H. | ||
| 6 | JG8908 | CHANNEL | ||
| 7 | TA6490 | CLAMP ASSM | ||
| 7 | C0312 | LOCKWASHER - 3/8" | ||
| 7 | C1521 | NUT - 3/8" - 16NC | ||
| 7 | TA6483 | CLAMP | ||
| 7 | TA6491 | U-BOLT | ||
| 8 | PB7226 | BLANKET, EXHAUST | ||
| 9 | TZ1195 | PLATE, BENT | ||
| 10 | TY4575 | EXHAUST TUBE - L.H. | ||
| 11 | PB7227 | BLANKET, EXHAUST | ||
| 12 | TY4574 | EXHAUST TUBE - R.H. | ||
| 13 | C0312 | LOCKWASHER - 3/8" | ||
| 14 | C1521 | NUT - 3/8" - 16NC | ||
| 15 | SD4572 | JAM NUT - 3/8" - 16NC | ||
| 16 | TY4023 | T-BOLT | ||
| 17 | TZ4017 | CLAMP | ||
| 18 | TZ5938 | CHANNEL | ||
| 19 | TZ5937 | TUBE | ||
| 20 | TY4020 | CLAMP, MUFFLER | ||
| 21 | PB6873 | MUFFLER, EXHAUST | ||
| 22 | TY4020 | CLAMP, MUFFLER | ||
| 23 | PB7224 | BLANKET, EXHAUST | ||
| 24 | TY4568 | EXHAUST TUBE - R.H. | ||
| 25 | PB7225 | BLANKET, EXHAUST |
