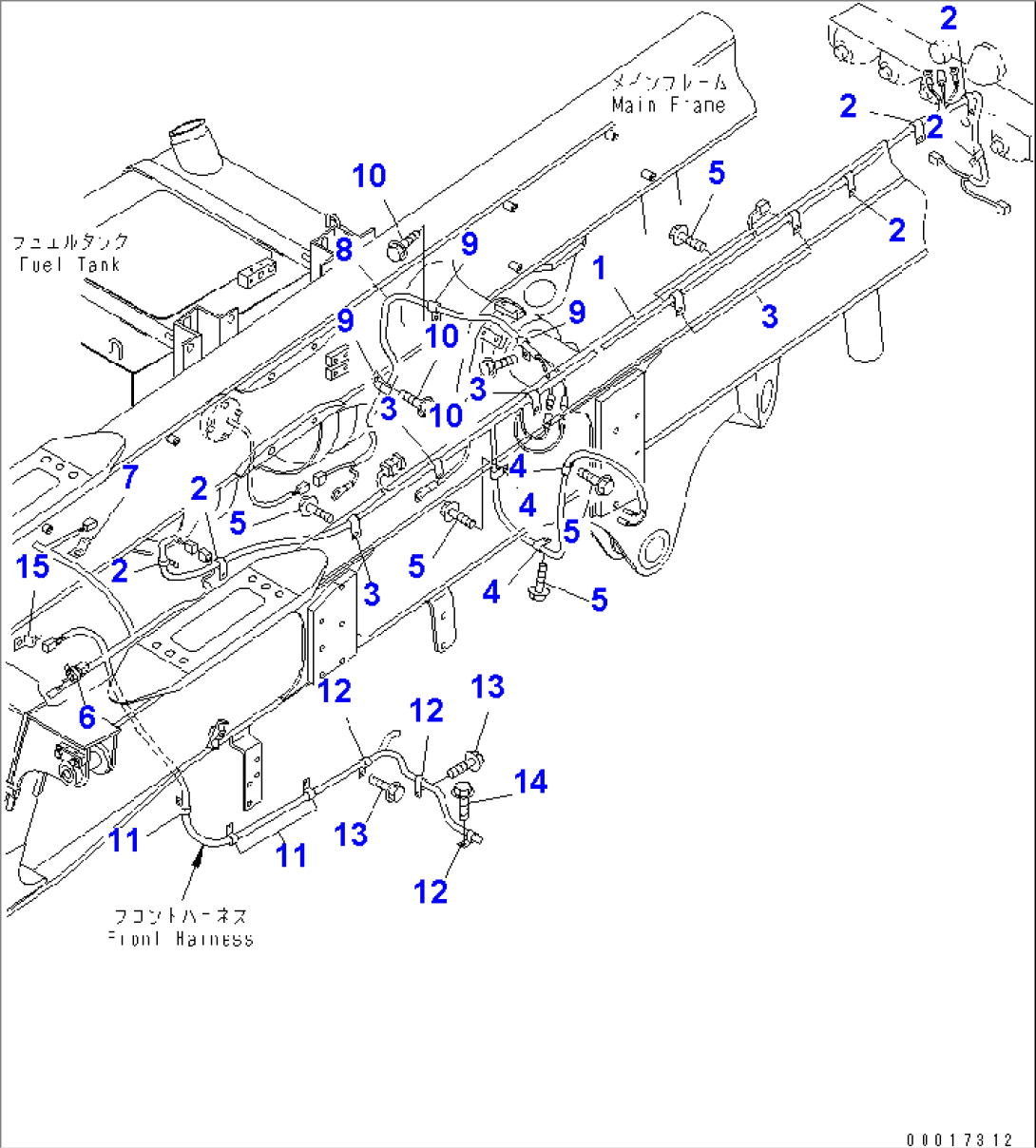

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-06-71175 | WIRING HARNESS | 1601- | |
| 2 | 04434-51410 | CLIP | 1605- | |
| 3 | 04434-51710 | CLIP | 1605- | |
| 4 | 04434-51010 | CLIP | 1605- | |
| 5 | 01435-01016 | BOLT | 1001- | |
| 6 | 08034-20519 | BAND | 1201- | |
| 7 | 08053-00912 | CLIP | 1201- | |
| 8 | 567-06-42311 | WIRING HARNESS | 1001- | |
| 9 | 04434-50810 | CLIP | 1001- | |
| 10 | 01435-01016 | BOLT | 1001- | |
| 11 | 04434-51010 | CLIP | 1602- | |
| 12 | 04434-51010 | CLIP | 1602- | |
| 13 | 01435-01016 | BOLT | 1602- | |
| 14 | 01435-01016 | BOLT | 1605- | |
| 15 | 08053-01512 | CLIP | 1605- |
