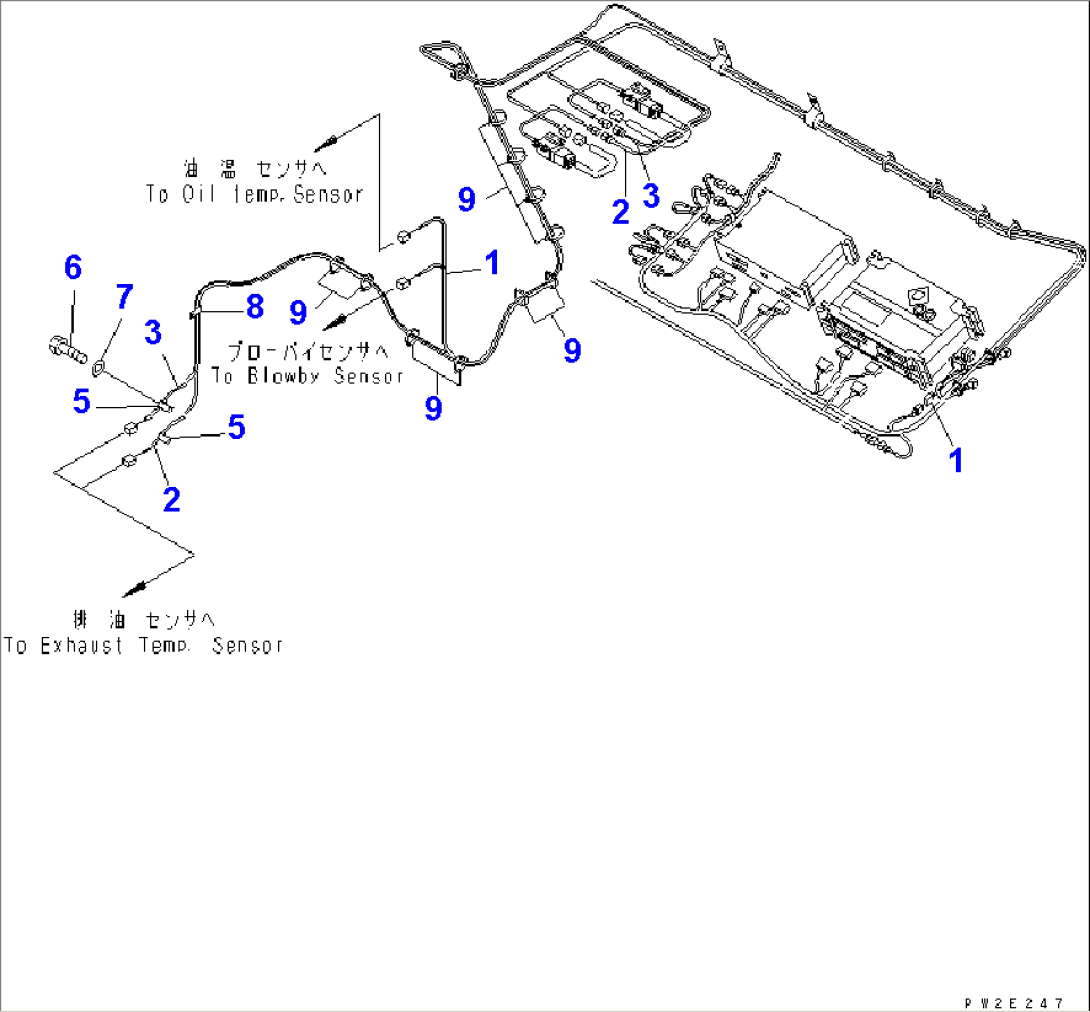

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-97-62220 | WIRING HARNESS | 1001- | |
| 2 | 569-97-62280 | WIRING HARNESS | 1001- | |
| 3 | 569-97-62290 | WIRING HARNESS | 1001- | |
| 5 | 04434-50612 | CLIP | 1001- | |
| 6 | 01010-81220 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 04434-50812 | CLIP | 1001- | |
| 9 | 08034-20519 | BAND | 1001- |
