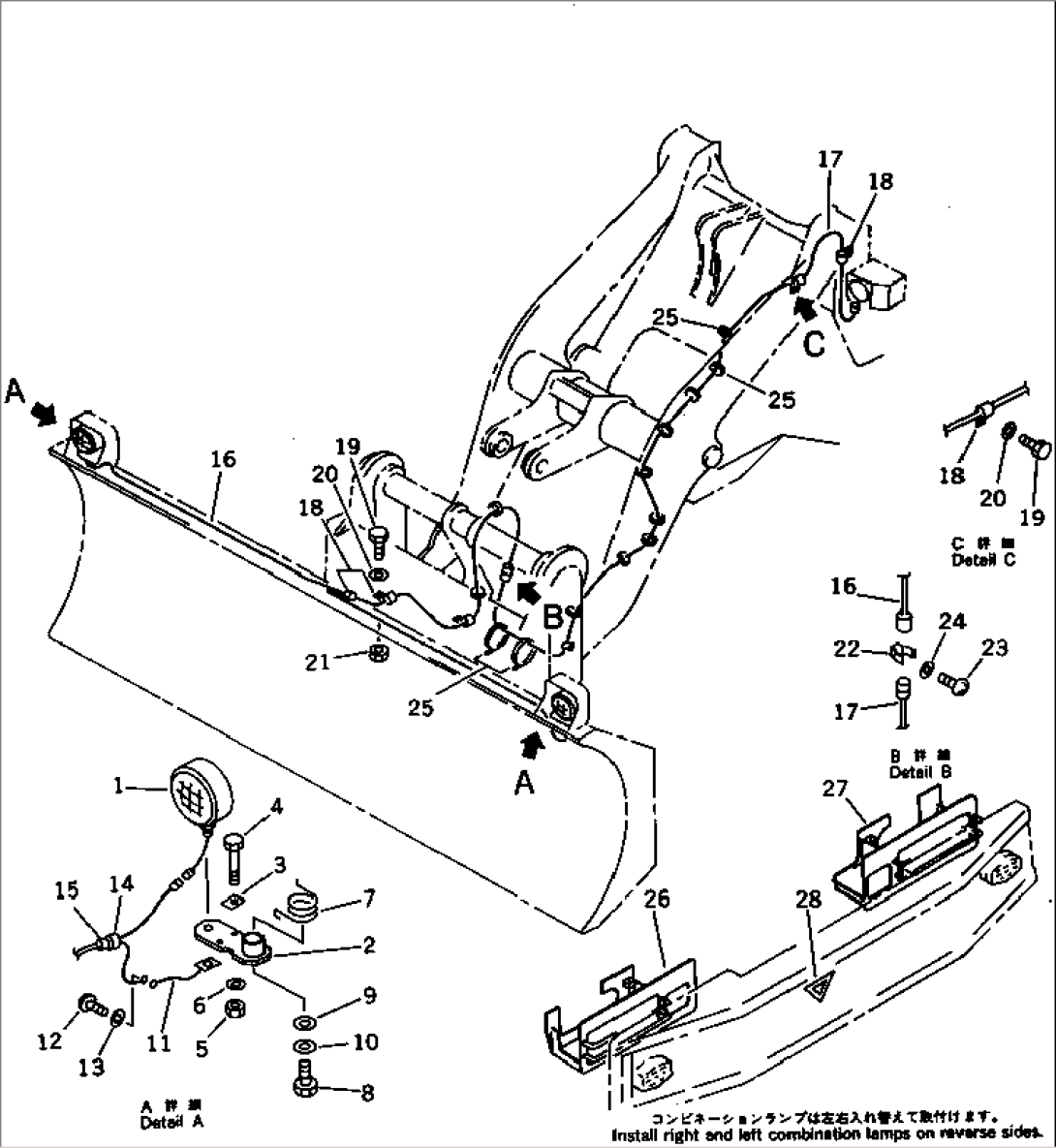

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-904-1610 | LAMP ASS'Y | 10001- | |
| 08102-12403 | BULB¤ 3W | 10001- | ||
| 423-904-1620 | LENS,FRONT¤ ORANGE | 10001- | ||
| 423-904-1630 | LENS,REAR¤ YELLOW | 10001- | ||
| 423-904-1640 | SCREW | 10001- | ||
| 423-904-1650 | SHEET | 10001- | ||
| 2 | 423-904-1670 | SUPPORT | 10001- | |
| 3 | 423-904-1680 | RUBBER | 10001- | |
| 4 | 01010-31040 | BOLT | 10001- | |
| 5 | 01598-01011 | NUT | 10001- | |
| 6 | 01643-31032 | WASHER | 10001- | |
| 7 | 423-904-1710 | SPRING,L.H. | 10001- | |
| 423-904-1720 | SPRING,R.H. | 10001- | ||
| 8 | 01010-31225 | BOLT | 10001- | |
| 9 | 423-904-1690 | WASHER | 10001- | |
| 10 | 01643-31232 | WASHER | 10001- | |
| 11 | 423-904-1740 | WIRE | 10001- | |
| 12 | 01220-40408 | SCREW | 10001- | |
| 13 | 01601-00410 | WASHER,SPRING | 10001- | |
| 14 | 08013-01007 | CAP | 10001- | |
| 15 | 08019-01014 | CLIP | 10001- | |
| 16 | 418-914-1210 | WIRE ASS'Y | 10001- | |
| 17 | 418-914-1220 | WIRE ASS'Y | 10001- | |
| 18 | 08035-01510 | CLIP | 10001- | |
| 19 | 01010-31020 | BOLT | 10001- | |
| 20 | 01643-31032 | WASHER | 10001- | |
| 21 | 01580-11008 | NUT | 10001- | |
| 22 | 421-06-12910 | CLIP | 10001- | |
| 23 | 01220-40610 | SCREW | 10001- | |
| 24 | 01643-30623 | WASHER | 10001- | |
| 25 | 08034-00519 | BAND | 10001- | |
| 26 | 418-904-1852 | SUPPORT,L.H. | 10001-29999 | |
| 27 | 418-904-1862 | SUPPORT,R.H. | 10001-29999 | |
| 28 | 423-904-1810 | PLATE | 10001- | |
| 29 | 423-904-1820 | PLATE¤ OPERATING,(NOT SHOWN) | 10001- |
