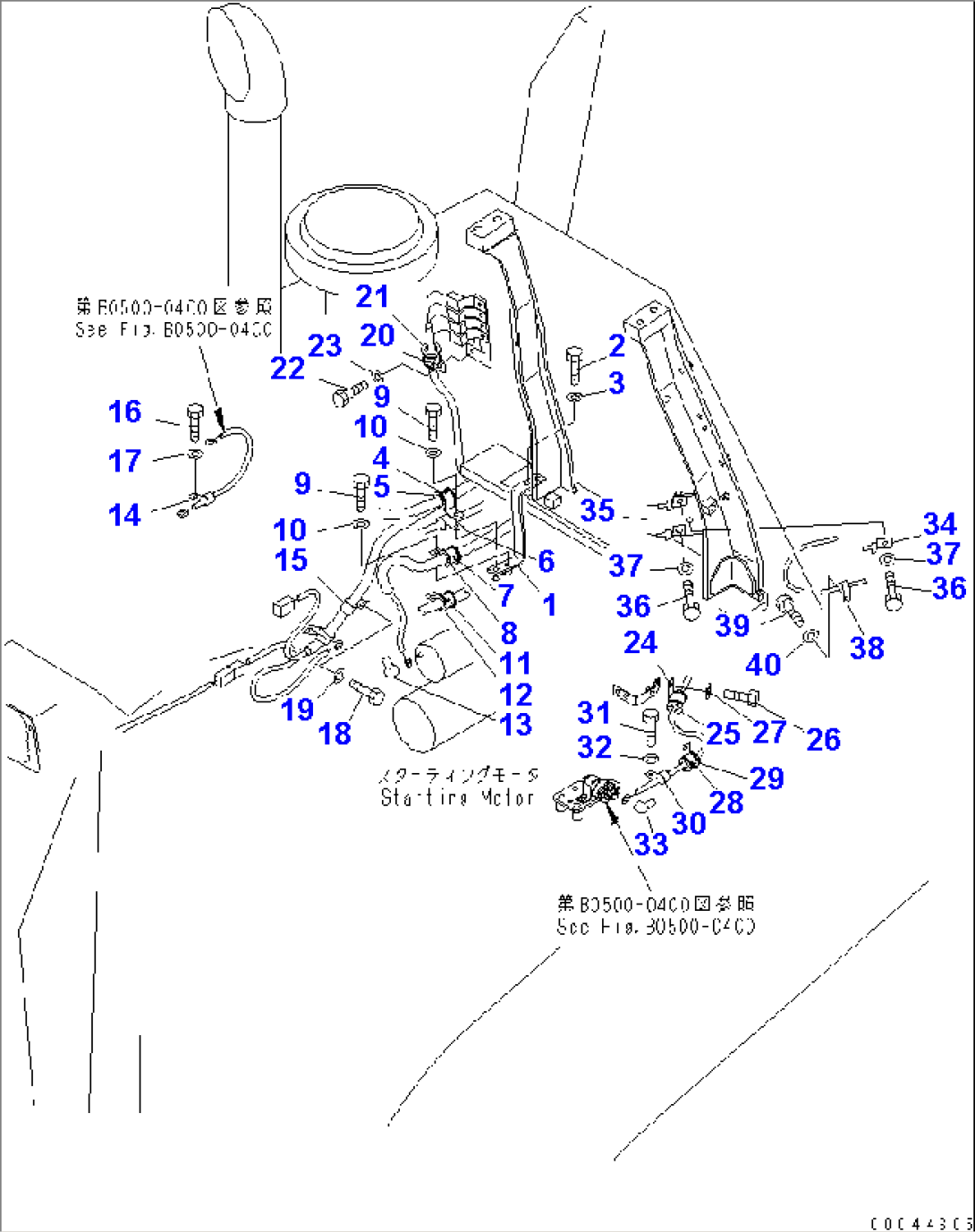

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-32281 | BRACKET | 69001- | |
| 2 | 01010-81020 | BOLT | 69001- | |
| 3 | 01643-31032 | WASHER | 69001- | |
| 4 | 04434-53411 | CLIP | 69001- | |
| 5 | 07095-20627 | CUSHION | 69001- | |
| 6 | 04434-51910 | CLIP | 69001- | |
| 7 | 04434-53211 | CLIP | 69001- | |
| 8 | 07095-20523 | CUSHION | 69001- | |
| 9 | 01010-81025 | BOLT | 69001- | |
| 10 | 01643-31032 | WASHER | 69001- | |
| 11 | 04434-52511 | CLIP | 69001- | |
| 12 | 07095-20318 | CUSHION | 69001- | |
| 13 | 08038-00035 | CAP | 69001- | |
| 14 | 04434-51910 | CLIP | 69001- | |
| 15 | 04434-51710 | CLIP | 69001- | |
| 16 | 01010-81020 | BOLT | 69001- | |
| 17 | 01643-31032 | WASHER | 69001- | |
| 18 | 01010-81016 | BOLT | 69001- | |
| 19 | 01643-31032 | WASHER | 69001- | |
| 20 | 423-62-43810 | CLIP | 69053- | |
| 20 | 155-911-1790 | CLIP | 69001-69052 | |
| 21 | 07095-20627 | CUSHION | 69001- | |
| 22 | 01010-81030 | BOLT | 69001- | |
| 23 | 01643-31032 | WASHER | 69001- | |
| 24 | 04434-52108 | CLIP | 69001- | |
| 25 | 07095-20314 | CUSHION | 69001- | |
| 26 | 01010-80820 | BOLT | 69001- | |
| 27 | 01643-30823 | WASHER | 69001- | |
| 28 | 08035-02508 | CLIP | 69001- | |
| 29 | 07095-20314 | CUSHION | 69001- | |
| 30 | 600-051-2140 | CLIP | 69001- | |
| 31 | 01010-80820 | BOLT | 69001- | |
| 32 | 01643-30823 | WASHER | 69001- | |
| 33 | 08038-02027 | CAP | 69001- | |
| 34 | 08193-20010 | CLIP | 69001- | |
| 35 | 600-051-2100 | CLIP | 69001- | |
| 36 | 01010-81016 | BOLT | 69001- | |
| 37 | 01643-31032 | WASHER | 69001- | |
| 38 | 04434-51410 | CLIP | 69001- | |
| 39 | 01010-81020 | BOLT | 69001- | |
| 40 | 01643-31032 | WASHER | 69001- |
