| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-52110 | CLIP | B45001- | |
| 2 | 07095-20314 | CUSHION | B45001- | |
| 3 | 01010-81020 | BOLT | B45001- | |
| 4 | 01643-31032 | WASHER | B45001- | |
| 5 | 600-051-2140 | CLIP | B45001- | |
| 6 | 01010-81020 | BOLT | B45001- | |
| 7 | 01643-31032 | WASHER | B45001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D61px 15e0 bw s/n b45001 up
- Electrical system
- Vehicle wiring (floor heater relay)
Поиск по каталогу

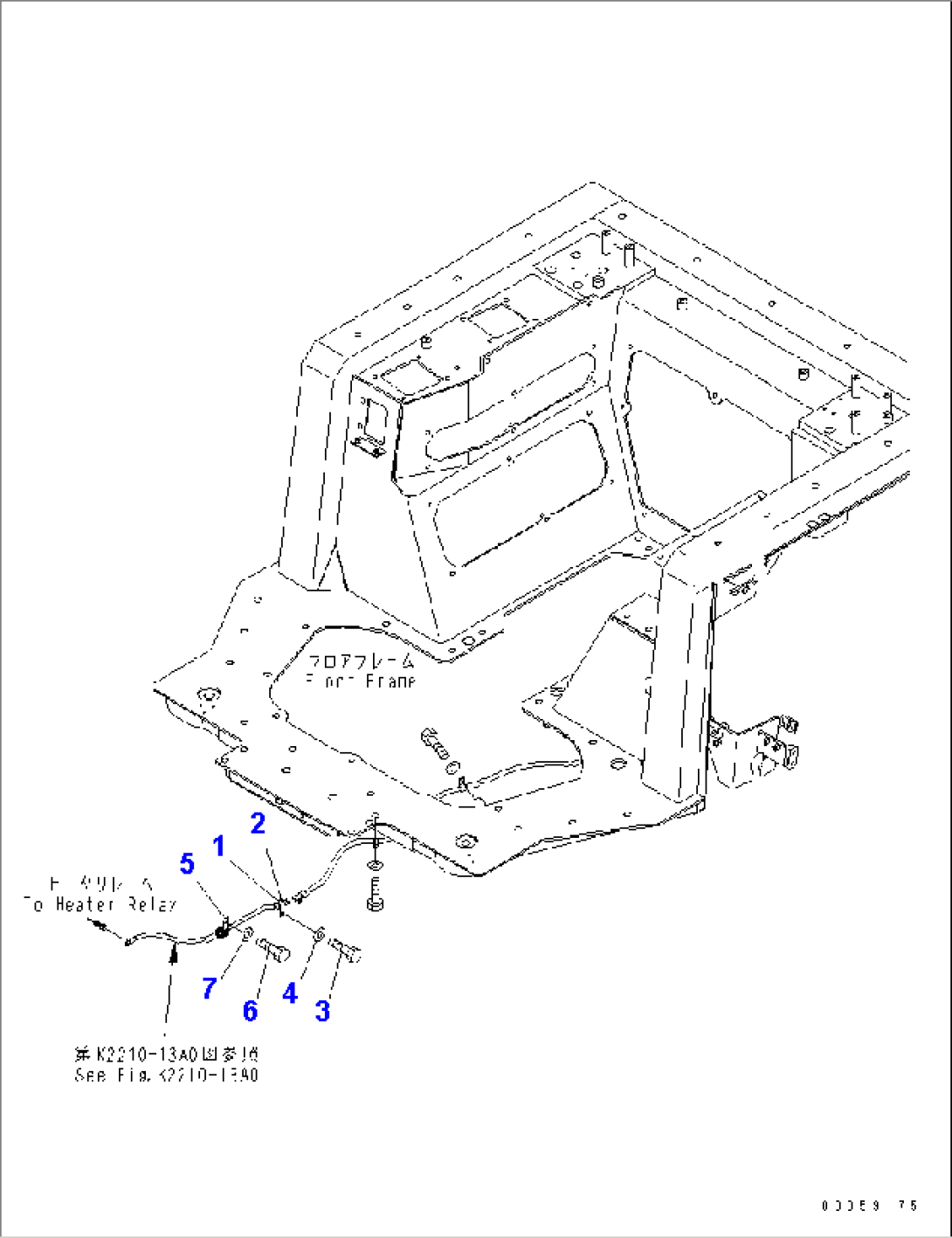

VEHICLE WIRING (FLOOR HEATER RELAY)
