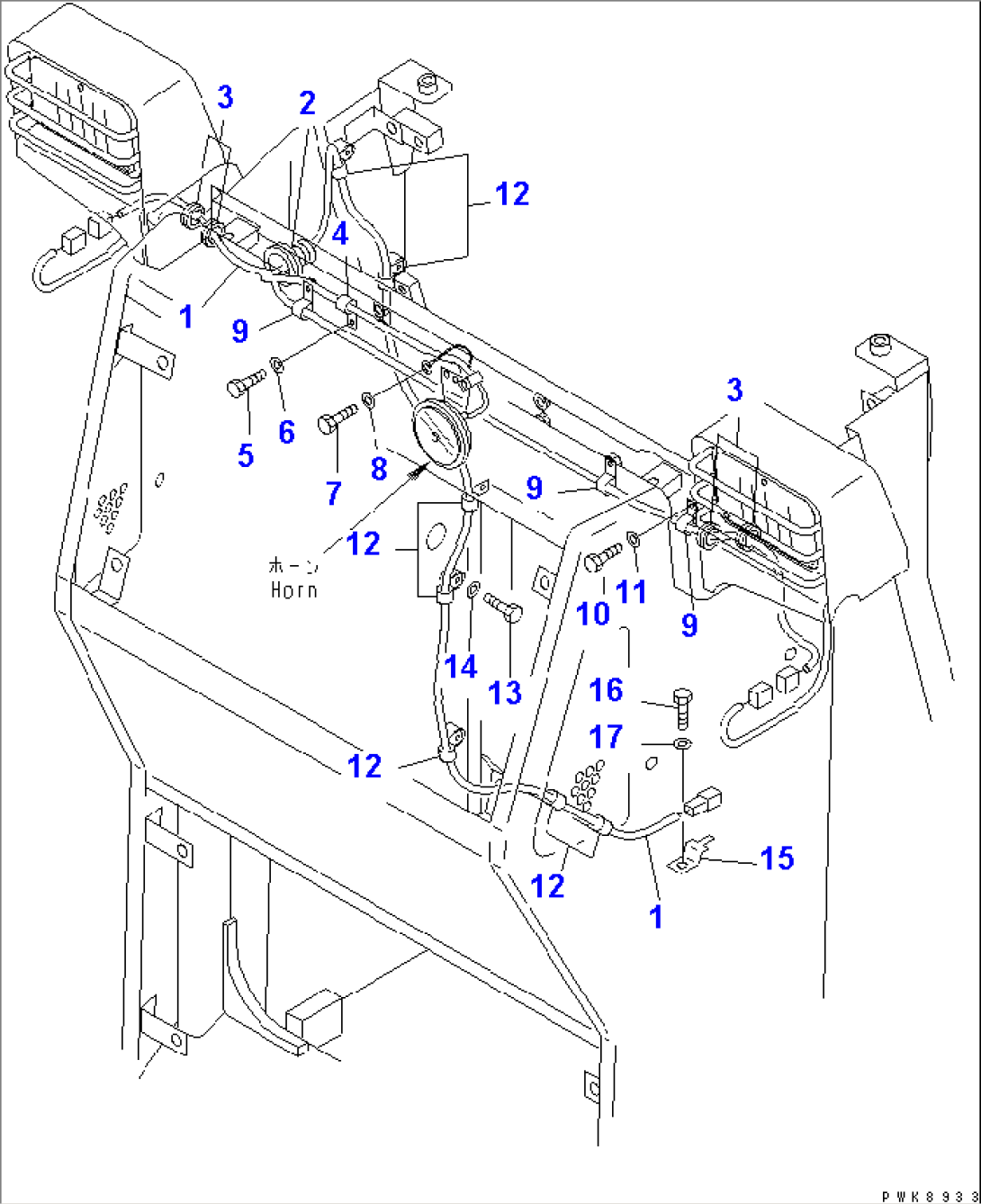

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-06-61151 | WIRING HARNESS | 1001- | |
| 2 | 08037-12036 | GROMMET | 1001- | |
| 3 | 287-43-13270 | CUSHION | 1001- | |
| 4 | 04434-51010 | CLIP | 1001- | |
| 5 | 01010-81020 | BOLT | 1001- | |
| 6 | 01643-31032 | WASHER | 1001- | |
| 7 | 01010-81016 | BOLT | 1001- | |
| 8 | 01643-31032 | WASHER | 1001- | |
| 9 | 04434-51010 | CLIP | 1001- | |
| 10 | 01010-81020 | BOLT | 1001- | |
| 11 | 01643-31032 | WASHER | 1001- | |
| 12 | 04434-51010 | CLIP | 1001- | |
| 13 | 01010-81020 | BOLT | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 08053-01510 | CLIP | 1001- | |
| 16 | 01010-81020 | BOLT | 1001- | |
| 17 | 01643-31032 | WASHER | 1001- |
