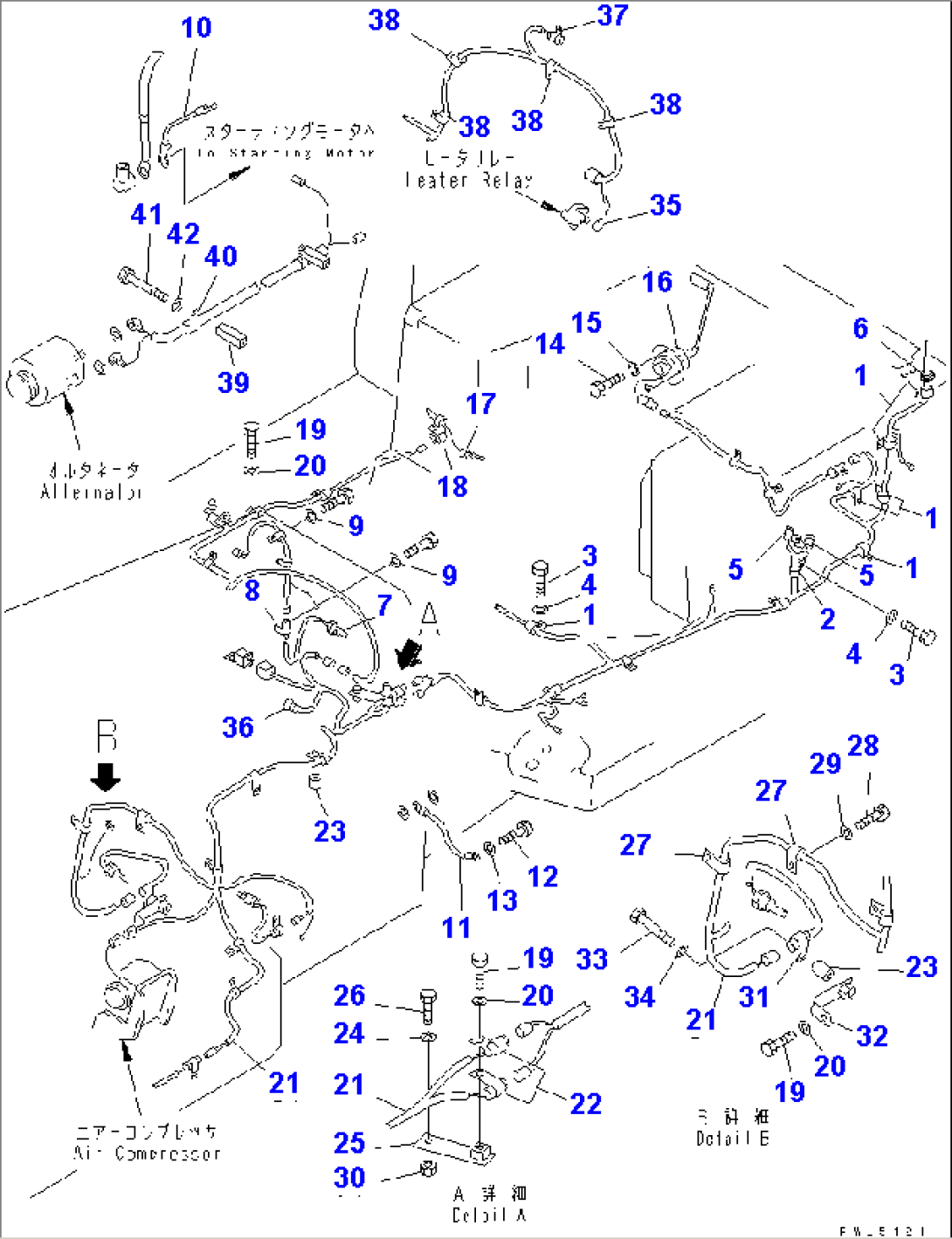

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08036-01014 | CLIP | 3689- | |
| 2 | 08036-01814 | CLIP | 3689- | |
| 3 | 01010-81020 | BOLT | 3689- | |
| 4 | 01643-31032 | WASHER | 3689- | |
| 5 | 195-06-41830 | CLIP | 3689- | |
| 6 | 195-06-41740 | PLUG | 3689- | |
| 7 | 7861-91-3310 | SENSOR,T/C OIL TEMPERATURE | 3689- | |
| 8 | 195-06-41820 | CLIP | 3689- | |
| 9 | 01643-31232 | WASHER | 3689- | |
| 10 | 195-06-25290 | FUSE ASS'Y | 3689- | |
| 11 | 175-06-51440 | WIRE | 3689- | |
| 12 | 01010-81220 | BOLT | 3689- | |
| 13 | 01643-31232 | WASHER | 3689- | |
| 14 | 01010-81025 | BOLT | 3689- | |
| 15 | 01602-21030 | WASHER | 3689- | |
| 16 | 07000-12085 | O-RING | 3689- | |
| 17 | 7861-91-3440 | SENSOR,HYDRAULIC OIL TEMPERATURE | 3689- | |
| 18 | 195-06-41810 | CLIP | 3689- | |
| 19 | 01010-81220 | BOLT | 3689- | |
| 20 | 01643-31232 | WASHER | 3689- | |
| 21 | 154-06-41123 | WIRING HARNESS | 3846- | |
| 154-06-41122 | WIRING HARNESS | 3689-3845 | ||
| 22 | 195-06-41830 | CLIP | 3689- | |
| 23 | 195-33-11220 | SPACER | 3689- | |
| 24 | 01643-31032 | WASHER | 3689- | |
| 25 | 154-Z11-5340 | BRACKET | 3691- | |
| \0\154-06-41390 | BRACKET | 3689-3690 | ||
| 26 | 01010-81035 | BOLT | 3689- | |
| 27 | 08036-10814 | CLIP | 3689- | |
| 28 | 01010-81020 | BOLT | 3689- | |
| 29 | 01643-31032 | WASHER | 3689- | |
| 30 | 01580-11008 | NUT | 3689- | |
| 31 | 195-06-41820 | CLIP | 3689- | |
| 32 | 207-62-51270 | BRACKET | 3689- | |
| 33 | 01010-81250 | BOLT | 3689- | |
| 34 | 01643-31232 | WASHER | 3689- | |
| 35 | 08038-02027 | CAP | 3689- | |
| 36 | 08038-00519 | CAP | 3689- | |
| 37 | 195-06-41820 | CLIP | 3689- | |
| 38 | 08036-11214 | CLIP | 3689- | |
| 39 | 195-01-16420 | COLLAR | 3689- | |
| 40 | 08035-02508 | CLIP | 3689- | |
| 41 | 01011-81015 | BOLT | 3689- | |
| 42 | 01643-31032 | WASHER | 3689- |
