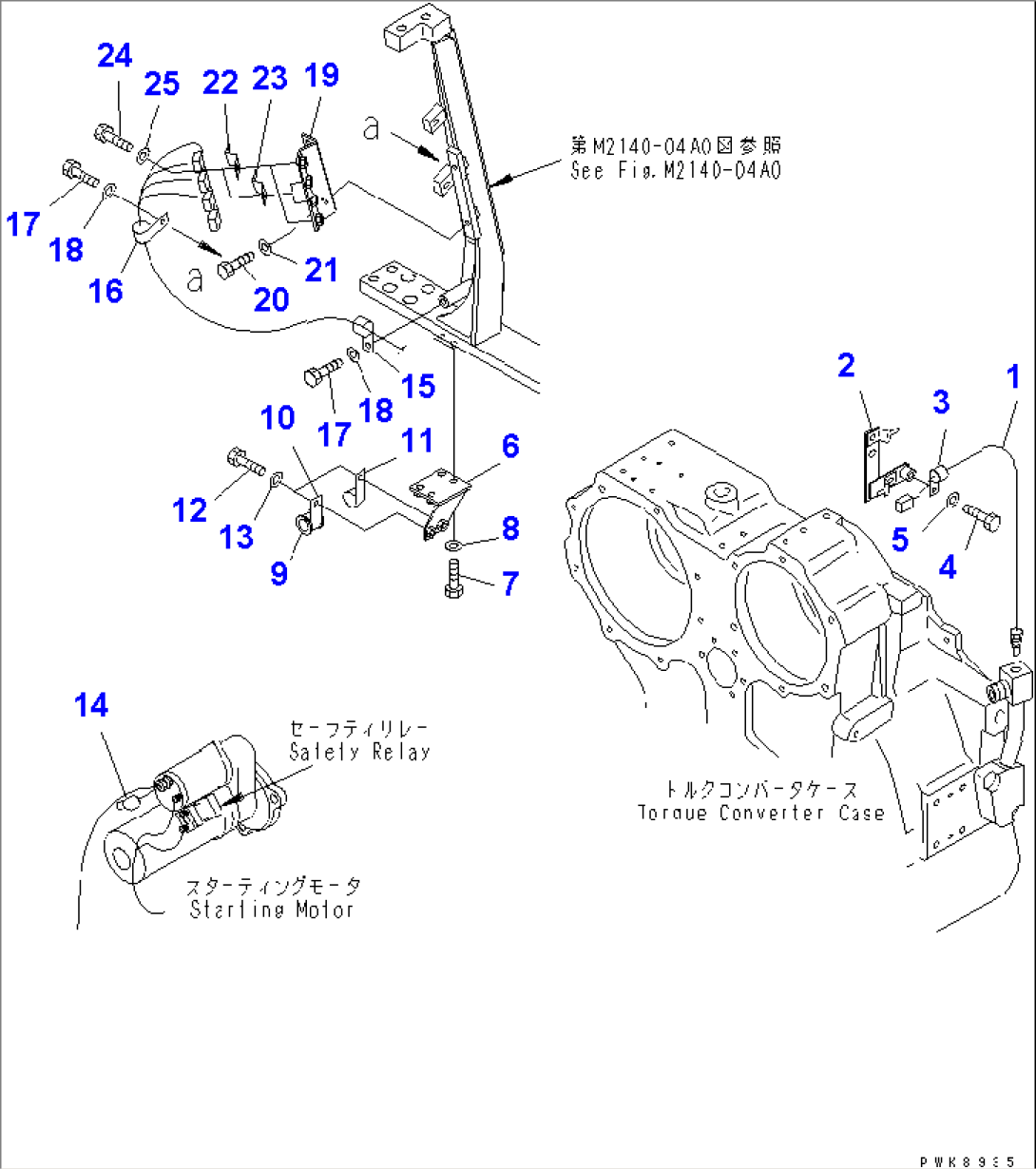

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7861-92-3320 | SENSOR,T/M OIL TEMPERATURE | 1001- | |
| 2 | 134-06-61390 | BRACKET | 1001- | |
| 3 | 04434-50610 | CLIP | 1001- | |
| 4 | 01010-81020 | BOLT | 1001- | |
| 5 | 01643-31032 | WASHER | 1001- | |
| 6 | 134-54-62141 | BRACKET | 1001- | |
| 7 | 01010-81025 | BOLT | 1001- | |
| 8 | 01643-31032 | WASHER | 1001- | |
| 9 | 07095-20523 | CUSHION | 1001- | |
| 10 | 04434-53212 | CLIP | 1001- | |
| 11 | 04434-52310 | CLIP | 1001- | |
| 12 | 01010-81020 | BOLT | 1001- | |
| 13 | 01643-31032 | WASHER | 1001- | |
| 14 | 08038-00035 | CAP | 1001- | |
| 15 | 04434-52712 | CLIP | 1001- | |
| 16 | 04434-51912 | CLIP | 1001- | |
| 17 | 01010-81020 | BOLT | 1001- | |
| 18 | 01643-31032 | WASHER | 1001- | |
| 19 | 134-54-62392 | PLATE | 1168- | |
| 134-54-62391 | PLATE | 1156-1167 | ||
| 134-54-62390 | PLATE | 1001-1155 | ||
| 20 | 01010-81025 | BOLT | 1001- | |
| 21 | 01643-31032 | WASHER | 1001- | |
| 22 | 08053-01510 | CLIP | 1001- | |
| 23 | 08053-00910 | CLIP | 1001- | |
| 24 | 01010-81020 | BOLT | 1001- | |
| 25 | 01643-31032 | WASHER | 1001- |
