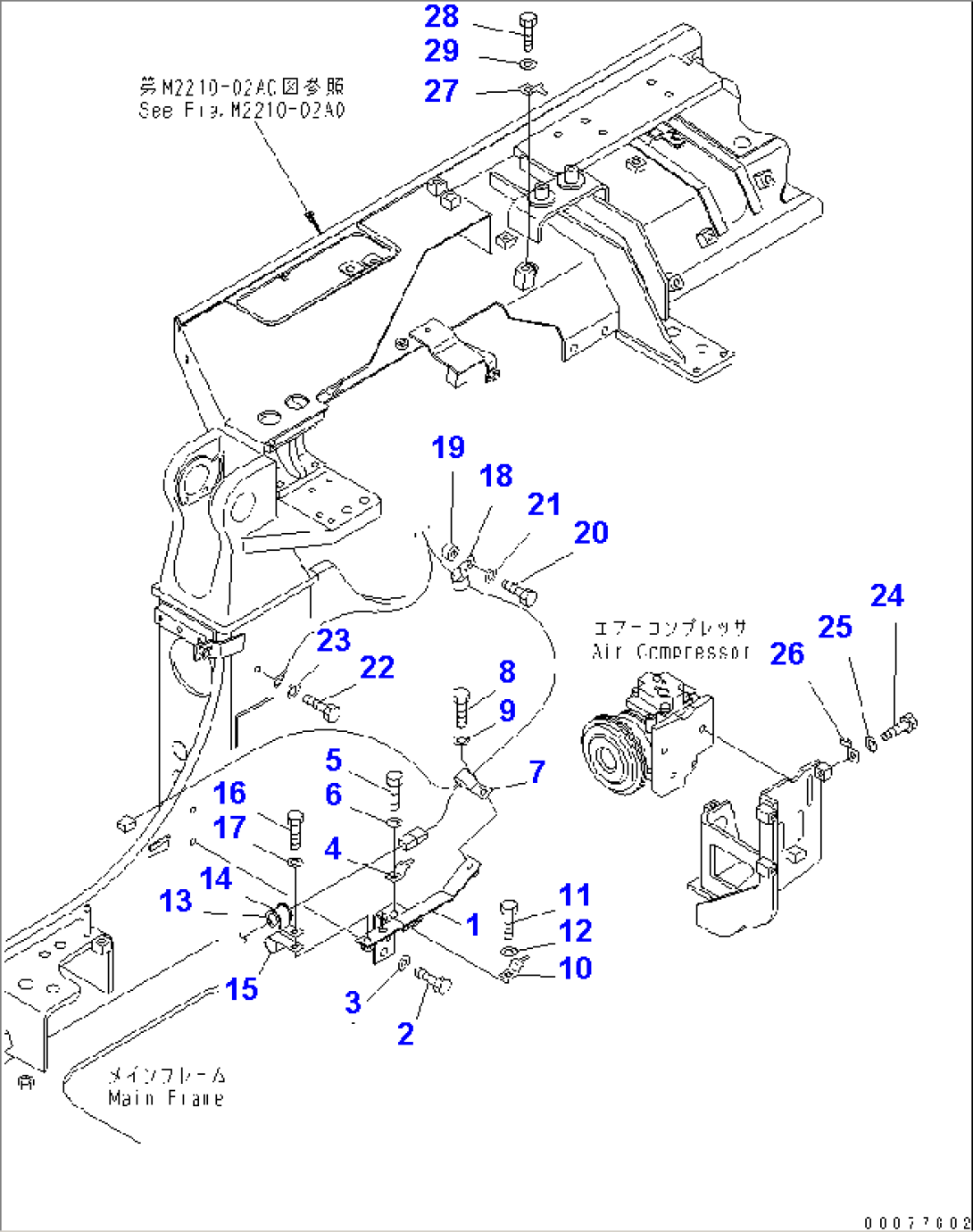

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-06-65180 | BRACKET | 2001- | |
| 2 | 01010-81225 | BOLT | 2001- | |
| 3 | 01643-31232 | WASHER | 2001- | |
| 4 | 08053-00910 | CLIP | 2001- | |
| 5 | 01010-81020 | BOLT | 2001- | |
| 6 | 01643-31032 | WASHER | 2001- | |
| 7 | 04434-51910 | CLIP | 2001- | |
| 8 | 01010-81020 | BOLT | 2001- | |
| 9 | 01643-31032 | WASHER | 2001- | |
| 10 | 08193-20010 | CLIP | 2001- | |
| 11 | 01010-81020 | BOLT | 2001- | |
| 12 | 01643-31032 | WASHER | 2001- | |
| 13 | 07095-20318 | CUSHION | 2001- | |
| 14 | 04434-52510 | CLIP | 2001- | |
| 15 | 04434-51010 | CLIP | 2001- | |
| 16 | 01010-81020 | BOLT | 2001- | |
| 17 | 01643-31032 | WASHER | 2001- | |
| 18 | 04434-51912 | CLIP | 2001- | |
| 19 | 203-62-21720 | SPACER | 2001- | |
| 20 | 01010-81235 | BOLT | 2001- | |
| 21 | 01643-31232 | WASHER | 2001- | |
| 22 | 01010-81220 | BOLT | 2001- | |
| 23 | 01643-31232 | WASHER | 2001- | |
| 24 | 01010-81016 | BOLT | 2001- | |
| 25 | 01643-31032 | WASHER | 2001- | |
| 26 | 08053-01510 | CLIP | 2001- | |
| 27 | 08053-01512 | CLIP | 2001- | |
| 28 | 01010-81220 | BOLT | 2001- | |
| 29 | 01643-31232 | WASHER | 2001- |
