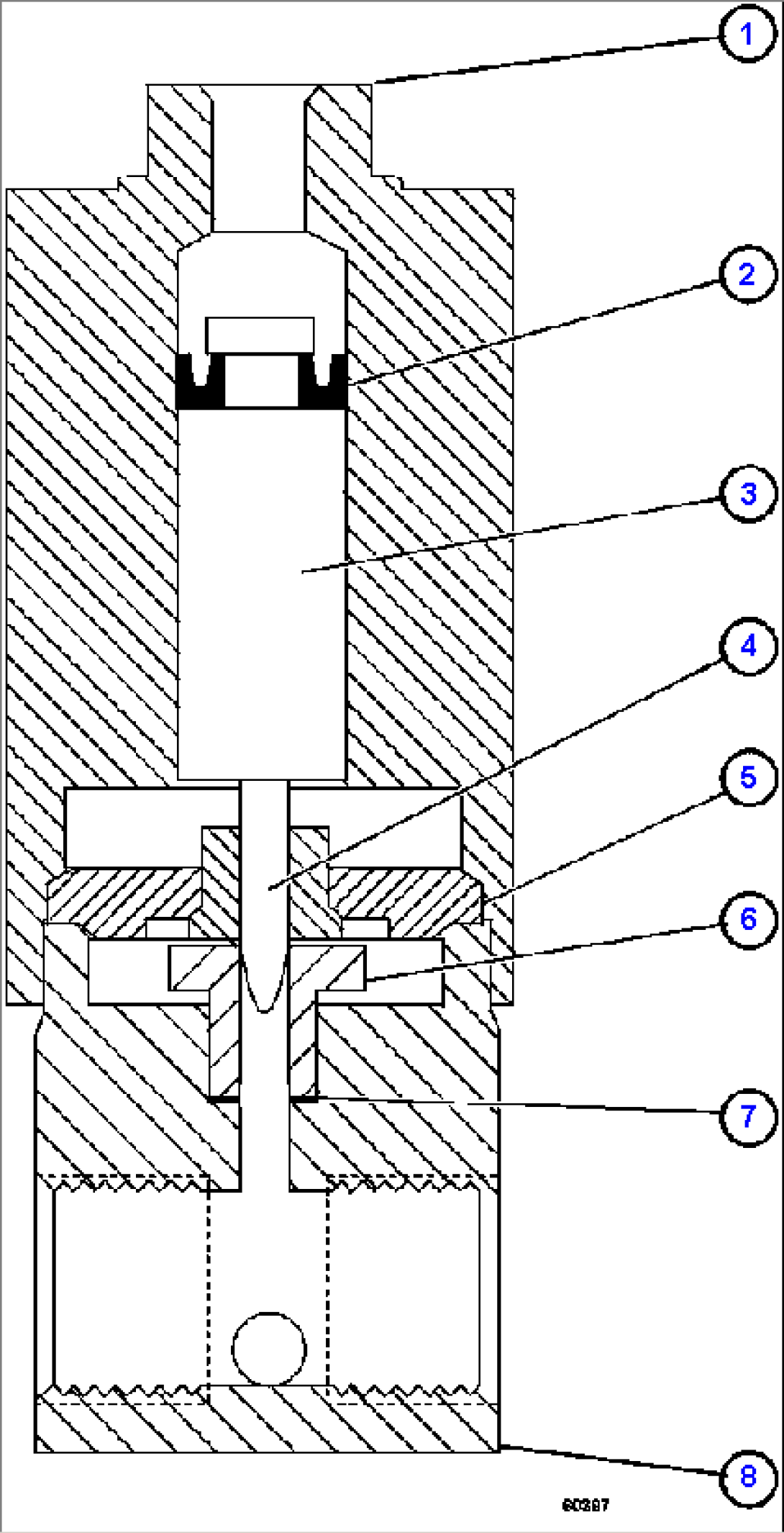

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | LA0913 | CYLINDER | ||
| 2 | LA0914 | U-CUP | ||
| 3 | BF5432 | PISTON | ||
| 4 | VJ8523 | NEEDLE | ||
| 5 | LA0641 | PACKING, VALVE | ||
| 6 | VJ8524 | SEAT, VALVE | ||
| 7 | LA0662 | GASKET | ||
| 8 | LA0916 | BODY |
- Главная
- Каталог запчастей
- Самосвалы
- Afe71 a 960e 2kt s/n a50028 a50064
- Options & miscellaneous group
- Vent valve assembly la0912
Поиск по каталогу
VENT VALVE ASSEMBLY LA0912
