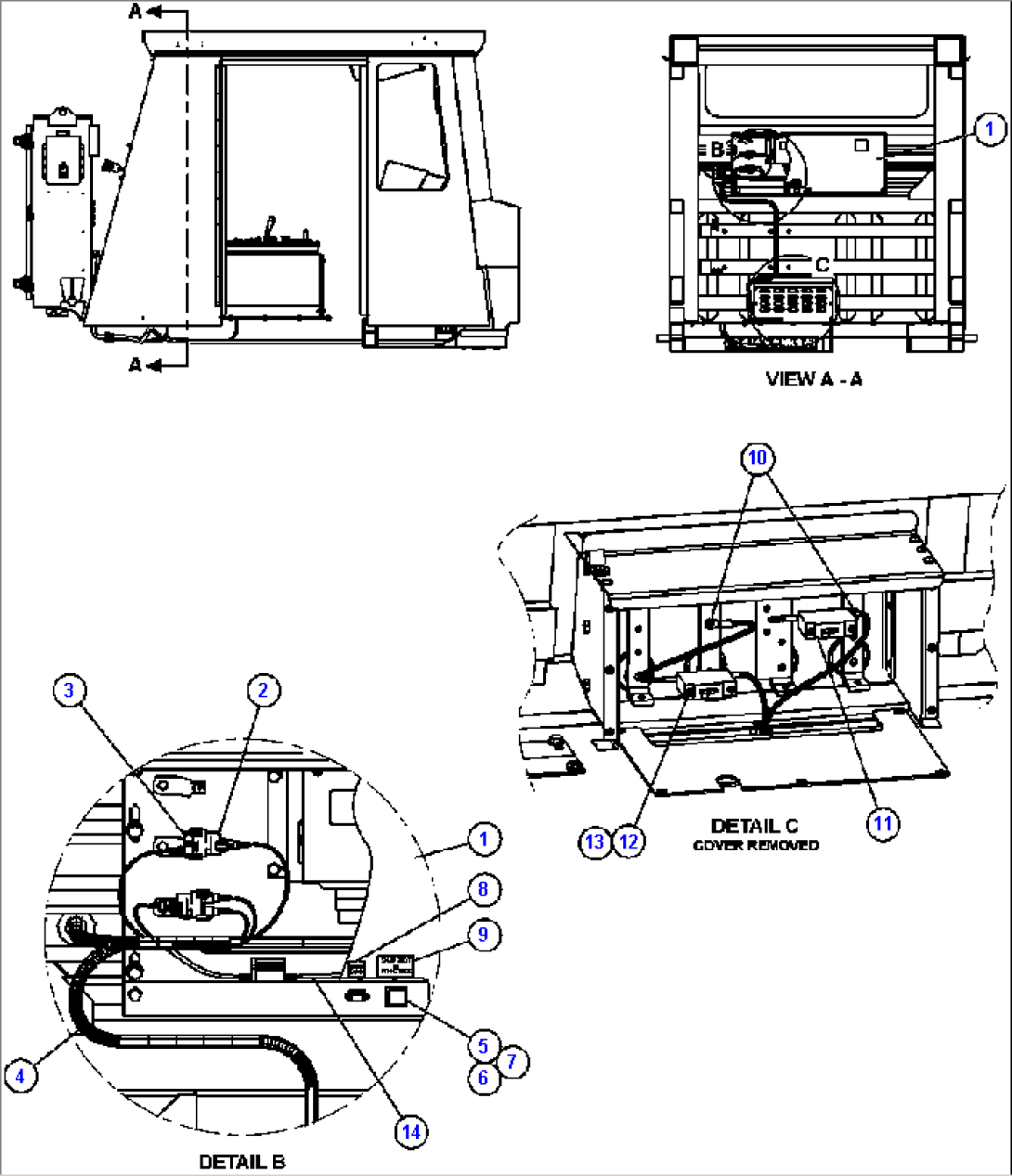

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EK9203 | PLATE, COVER | ||
| 2 | PC0616 | TEE RECEPTACLE | ||
| 3 | PC0618 | TERMINATING PLUG | ||
| 4 | EL0115 | HARNESS | ||
| 5 | SM4443 | FLASHER ASSEMBLY, CLEAR LENS | ||
| 6 | (NOT USED THIS APPLICATION) | |||
| 7 | PC0551 | LAMP, WHITE LED | ||
| 8 | WB3172 | NAME PLATE - VHMS DIAG | ||
| 9 | WB3171 | NAME PLATE - SNAPSHOT IN PROGRESS | ||
| 10 | VH2585 | TERMINAL, RING 16-14 AWG | ||
| 11 | SM3196 | CIRCUIT BREAKER - 5 AMP | ||
| 12 | SM2467 | CIRCUIT BREAKER - 10 AMP 65VDC | ||
| 13 | SM1602 | MACHINE SCREW - SEMS | ||
| 14 | 78261-23410 | HARNESS, ADAPTER |
