| Item | Part No. | Part Name | Qty | Serial No. |

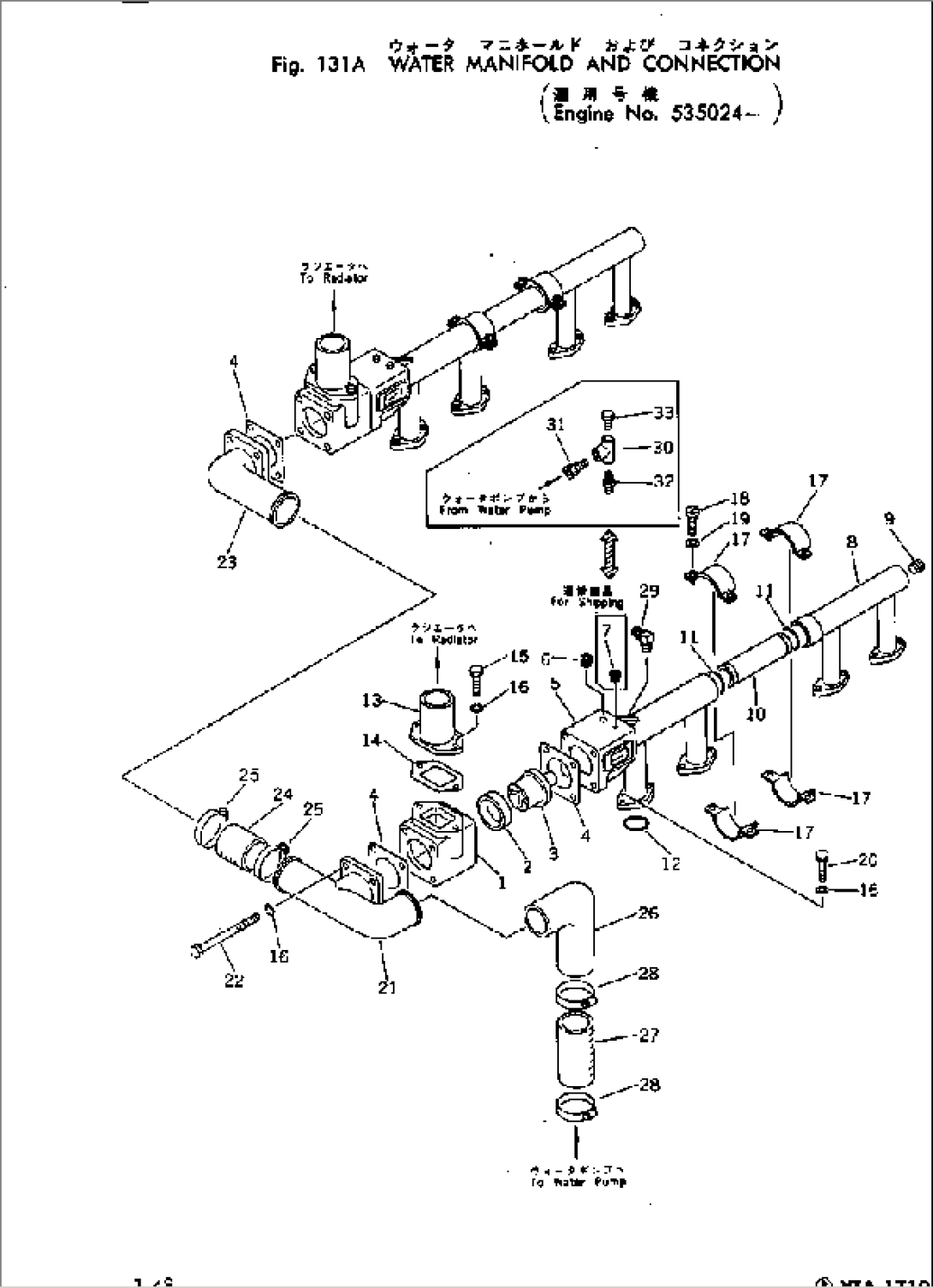

| CUAR-6577 | HOUSING ASS'Y,THERMOSTAT | 535024- | ||
| 1 | CU200248 | HOUSING | 535024- | |
| 2 | CU186780 | SEAL | 433904- | |
| 3 | CU204586 | THERMOSTAT | 504151- | |
| 4 | CU200260 | GASKET | 535024- | |
| 5 | CU200246 | MANIFOLD,FRONT R.H. | 535024- | |
| 5 | CU200247 | MANIFOLD,FRONT L.H. | 535024- | |
| 6 | CU3008468 | PLUG | .- | |
| 6 | \0\02720-20810 | PLUG | 535024-. | |
| 7 | CU3008469 | PLUG | .- | |
| 7 | \0\02720-20204 | PLUG | 535024-. | |
| 8 | CU170807 | MANIFOLD,REAR R.H. | 433904- | |
| 8 | CU170808 | MANIFOLD,REAR L.H. | 433904- | |
| 9 | 02720-21214 | PLUG | 535024- | |
| 10 | CU143396 | CONNECTION | 433904- | |
| 11 | 02893-05043 | O-RING | 433904- | |
| 12 | CU193301 | O-RING | 433904- | |
| 13 | CU218247 | CONNECTION,OUTLET | 550574- | |
| 14 | CU200259 | GASKET | 535024- | |
| 15 | 02010-20632 | BOLT | 535024- | |
| 16 | 01602-00929 | WASHER,SPRING | 535024- | |
| 17 | CU170810 | SHIELD,HEAT | 535024- | |
| 18 | CUS-1326 | SCREW | 535024- | |
| 19 | 02310-00712 | WASHER,SPRING | 535024- | |
| 20 | 6710-61-1160 | BOLT | 433904- | |
| 21 | CU200252 | CONNECTION | 535024- | |
| 22 | CUS-169-A | BOLT | 535024- | |
| 23 | CU200251 | CONNECTION | 535024- | |
| 24 | CU3017278 | HOSE | 535024- | |
| 25 | CU43828-E | CLAMP | 535024- | |
| 26 | CU200253 | TUBE | 535024- | |
| 27 | CU3017278 | HOSE | 535024- | |
| 28 | CU3026396 | CLAMP | 535024- | |
| 29 | 6631-11-6231 | ELBOW | 535024- | |
| 30 | CU70802 | TEE | 535024- | |
| 31 | CU68138 | ELBOW | 535024- | |
| 32 | CU139969 | NIPPLE | 535024- | |
| 33 | CU69901 | PLUG | 535024- |
