| Item | Part No. | Part Name | Qty | Serial No. |

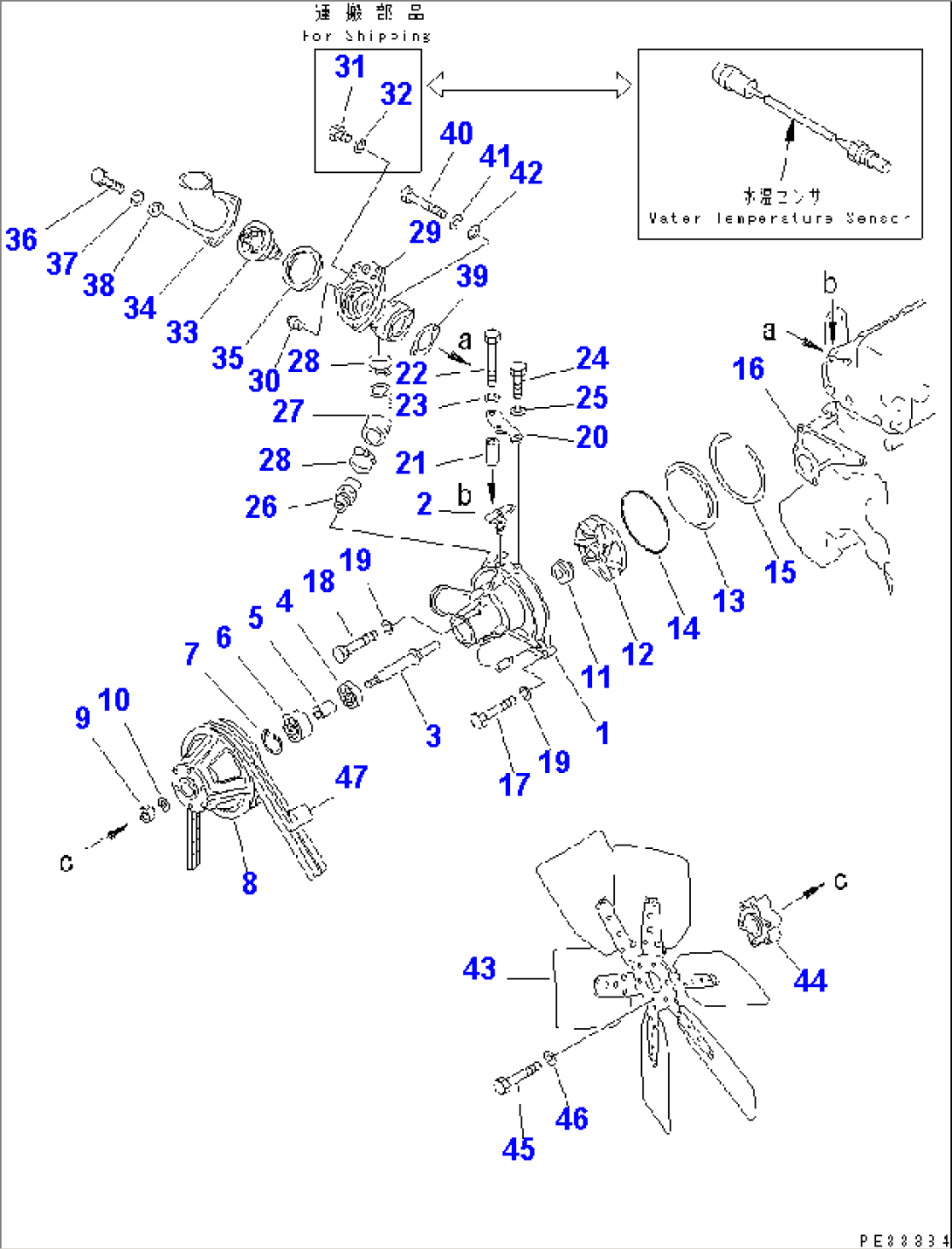

| 6138-61-1670 | WATER PUMP ASS'Y | 54110-@ | ||
| 1 | \6\ | BODY | .-@ | |
| 1 | \6\ | BODY | 54110-. | |
| 2 | 07062-00000 | VALVE | 54110-@ | |
| 3 | 6134-61-1320 | SHAFT | 54110-@ | |
| 4 | 06007-06205 | BEARING,BALL | 54110-@ | |
| 5 | 6131-62-1230 | SPACER | 54110-@ | |
| 6 | 6130-62-1520 | BEARING,BALL | 54110-@ | |
| 7 | 6134-61-1370 | RING,SNAP | 54110-@ | |
| 8 | 6138-61-3670 | PULLEY,HARDENING | 54110-@ | |
| 9 | 01599-01820 | NUT | 54110-@ | |
| 10 | 01643-31845 | WASHER | 54110-@ | |
| 11 | 6150-61-1520 | SEAL, WATER (K2) | 54110-@ | |
| 12 | 6138-61-1330 | IMPELLER | 54110-@ | |
| 13 | 6138-61-1120 | COVER | 54110-@ | |
| 14 | 07000-05160 | O-RING (K2) | 54110-@ | |
| 15 | 6138-61-1130 | RING,SNAP | 54110-@ | |
| 16 | 6136-61-1811 | GASKET (K2) | 54110-@ | |
| 17 | 01010-31060 | BOLT | 54110-60517 | |
| 18 | 01010-31050 | BOLT | 54110-60517 | |
| 19 | 01602-01030 | WASHER,SPRING | 54110-60517 | |
| 20 | 6136-61-1210 | BRACKET | 54110-@ | |
| 21 | 6112-23-6971 | SPACER | 54110-@ | |
| 22 | 01010-31080 | BOLT | 54110-60517 | |
| 23 | 01602-01030 | WASHER,SPRING | 54110-60517 | |
| 24 | 01010-30816 | BOLT | 54110-60517 | |
| 25 | 01602-00825 | WASHER,SPRING | 54110-60517 | |
| 26 | 6136-61-6111 | NIPPLE | 54110-@ | |
| 27 | 6138-61-6120 | HOSE | 54110-@ | |
| 28 | 07281-00489 | CLAMP | 54110-@ | |
| 29 | 6138-11-6420 | HOUSING,THERMOSTAT | 54110-@ | |
| 30 | 07042-00415 | PLUG | 54110-@ | |
| 31 | 6672-12-6290 | PLUG,(FOR SHIPPING) | 54110-@ | |
| 32 | 07005-01612 | SEAL, WASHER,(FOR SHIPPING) (K1) | 56997-@ | |
| 32 | 07005-01612 | SEAL, WASHER,(FOR SHIPPING) (K2) | 54110-56996 | |
| 33 | 600-421-6310 | THERMOSTAT | 54110-@ | |
| 34 | 6138-11-6511 | CONNECTOR,WATER | 58668-@ | |
| 34 | \1\6138-11-6510 | CONNECTOR,WATER | 54110-58667 | |
| 35 | 6138-11-6810 | GASKET (K1) | 54110-@ | |
| 36 | 01010-30830 | BOLT | 54110-60517 | |
| 37 | 01602-00825 | WASHER,SPRING | 54110-60517 | |
| 38 | 01640-20816 | WASHER | 54110-60517 | |
| 39 | 6136-11-1821 | GASKET (K1) | 54110-@ | |
| 40 | 01010-31060 | BOLT | 54110-60517 | |
| 41 | 01602-01030 | WASHER,SPRING | 54110-60517 | |
| 42 | 01640-01016 | WASHER | 54110-60517 | |
| 43 | 600-633-0740 | FAN,COOLING | 54110-@ | |
| 44 | 6130-61-3332 | SPACER | 54110-@ | |
| 45 | 01010-31070 | BOLT | 54110-60517 | |
| 46 | 01602-01030 | WASHER,SPRING | 54110-60517 | |
| 47 | 04121-21763 | V-BELT SET | 54110-@ |
