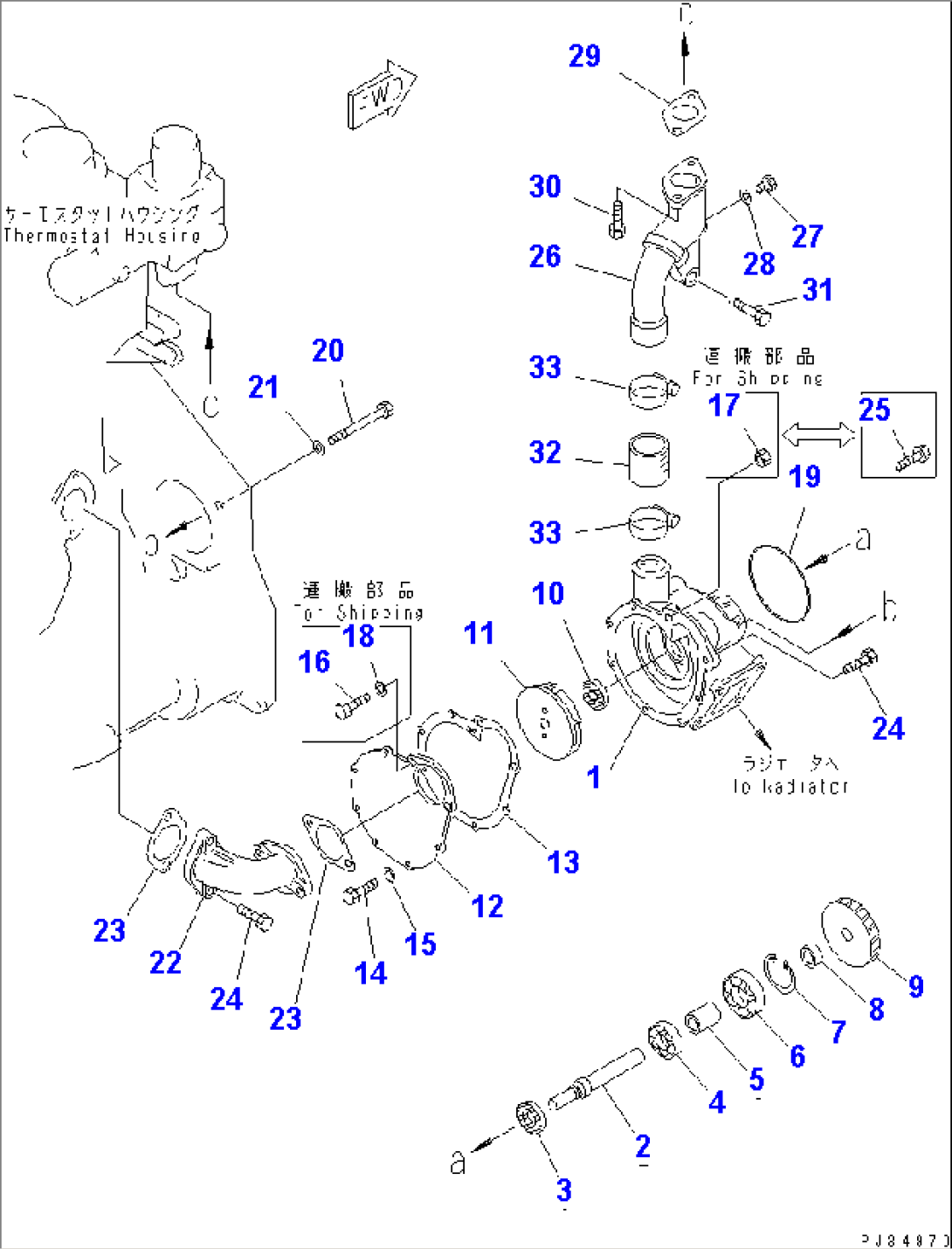

| Item | Part No. | Part Name | Qty | Serial No. |
| 6150-61-1101 | WATER PUMP ASS'Y | 10001- | ||
| 1 | \6\ | BODY | 10001- | |
| 2 | 6151-61-1310 | SHAFT | 10001- | |
| 3 | 6150-61-1510 | SEAL (K6) | 10001- | |
| 4 | 06030-06004 | BEARING,BALL | 10001- | |
| 5 | 6150-61-1360 | SPACER | 10001- | |
| 6 | 06030-06304 | BEARING,BALL | 10001- | |
| 7 | 04065-05220 | RING,SNAP | 10001- | |
| 8 | 6150-61-1350 | SPACER | 10001- | |
| 9 | 6150-61-1410 | GEAR | 10001- | |
| 10 | 6150-61-1520 | SEAL¤ WATER (K6) | 14706- | |
| \0\6610-61-1512 | SEAL¤ WATER (K6) | 10001-14705 | ||
| 11 | 6150-61-1210 | IMPELLER | 10001- | |
| 12 | 6150-61-1151 | COVER | 10001- | |
| 13 | 6150-61-1161 | GASKET (K6) | 10001- | |
| 14 | 01010-50816 | BOLT | 10001- | |
| 15 | 01602-20825 | WASHER,SPRING | 10001- | |
| 16 | 01010-31030 | BOLT,(FOR SHIPPING) | 10001- | |
| 17 | 01580-01008 | NUT,(FOR SHIPPING) | 10001- | |
| 18 | 01641-01016 | WASHER,(FOR SHIPPING) | 10001- | |
| 19 | 07000-02115 | O-RING (K6) | 10001- | |
| 20 | 01011-51010 | BOLT | 10001- | |
| 21 | 01640-21016 | WASHER | 10001- | |
| 22 | 6150-61-6311 | CONNECTOR | 10001- | |
| 23 | 6150-61-1820 | GASKET (K6) | 10001- | |
| 24 | 01010-51030 | BOLT | 10001- | |
| 25 | 01010-51035 | BOLT | 10001- | |
| 26 | 6150-61-6510 | CONNECTOR | 10001- | |
| 27 | 6110-53-5910 | PLUG | 10001- | |
| 28 | 07005-01412 | GASKET | 10001- | |
| 29 | 6150-61-6830 | GASKET (K1) | 10001- | |
| 30 | 01010-51030 | BOLT | 10001- | |
| 31 | 01010-51040 | BOLT | 10001- | |
| 32 | 6141-64-7270 | HOSE | 10001- | |
| 33 | 07281-00709 | CLAMP | 10001- |
