| Item | Part No. | Part Name | Qty | Serial No. |

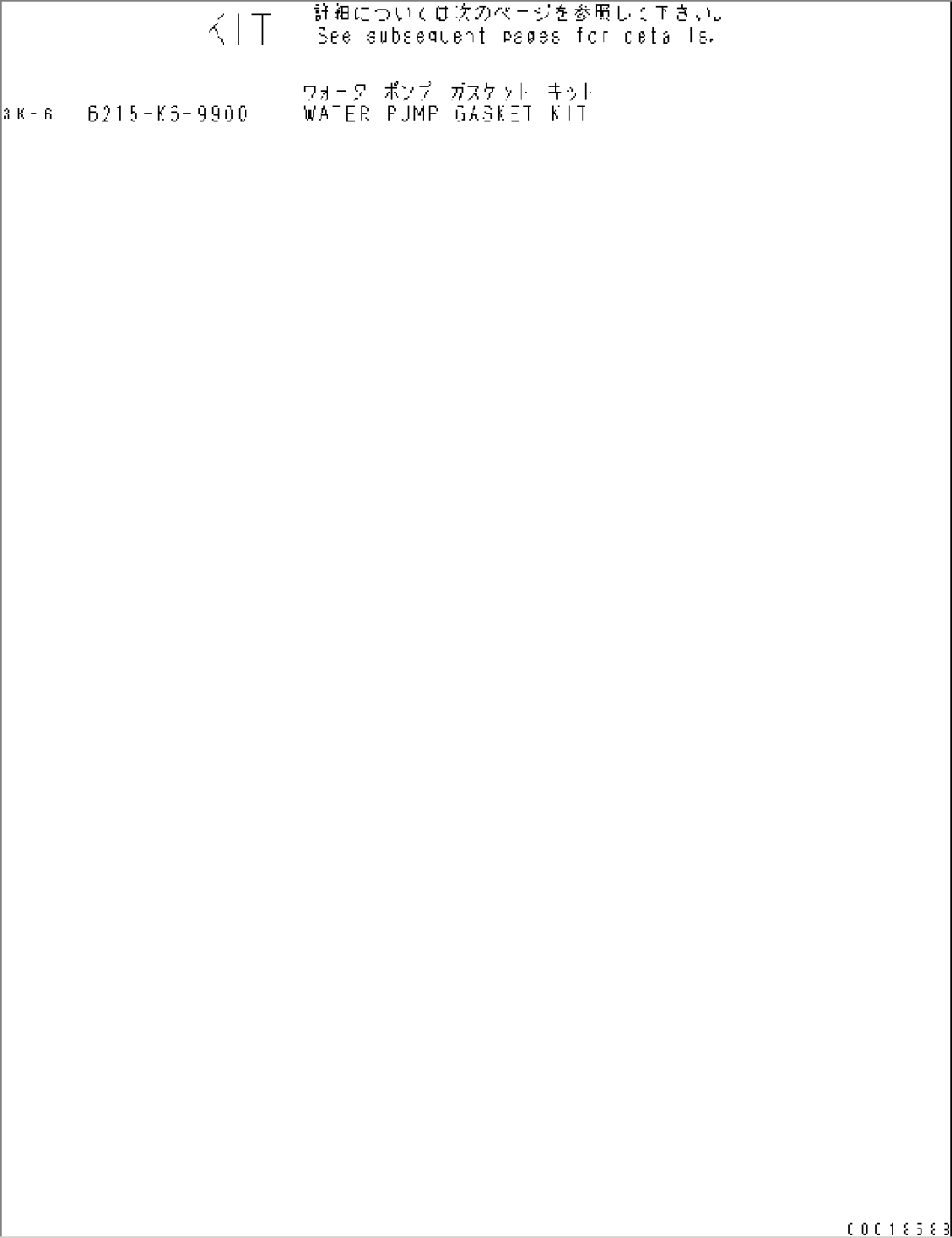

| 6 | 6215-K6-9900 | GASKET KIT,WATER PUMP | 10909- | |
| 6 | 6150-61-1510 | SEAL,OIL | 10909-13326 | |
| 6 | 6162-63-1514 | SEAL, WATER | 12262- | |
| 6 | \0\6215-61-1810 | SEAL, WATER | 11575-12261 | |
| 6 | (\2\6162-63-1513) | SEAL, WATER | (10034-11574) | |
| 6 | (\2\6162-63-1512) | SEAL, WATER | (10034-11096) | |
| 6 | (\2\6162-63-1511) | SEAL, WATER | (10034-10441) | |
| 6 | 07000-02140 | O-RING | 10909- | |
| 6 | 07000-02060 | O-RING | 10909- | |
| 6 | 07000-72016 | O-RING | 12472- | |
| 6 | \1\07000-62016 | O-RING | 10909-12471 | |
| 6 | 07000-72100 | O-RING | 12472- | |
| 6 | \1\07000-62100 | O-RING | 10909-12471 | |
| 6 | 6215-61-6530 | GASKET | 10909- | |
| 6 | 07000-G3045 | O-RING | 11045- | |
| 6 | \0\6215-61-7540 | O-RING | 10909-11044 | |
| 6 | 07000-G2090 | O-RING | 11045- | |
| 6 | \0\6215-61-7380 | O-RING | 10909-11044 | |
| 6 | 07000-G2080 | O-RING | 11045- | |
| 6 | \0\6215-61-7370 | O-RING | 10909-11044 | |
| 6 | 6215-61-7360 | GASKET | 10909- | |
| 6 | 6215-61-7340 | GASKET | 10909- | |
| THE FOLLOWING PARTS ARE NOT USED FOR THIS MODEL. | ||||
| 6 | 07000-02080 | O-RING | 10909- | |
| 6 | 07000-02090 | O-RING | 10909- | |
| 6 | 07000-03045 | O-RING | 10909- | |
| THE FOLLOWING PARTS ARE THE PARTS NOT INCLUDED IN THE GASKET KIT. | ||||
| 6 | 6215-61-1180 | SEAL,OIL | 13327- | |
| 6 | 6215-81-9720 | O-RING | 13327- |
