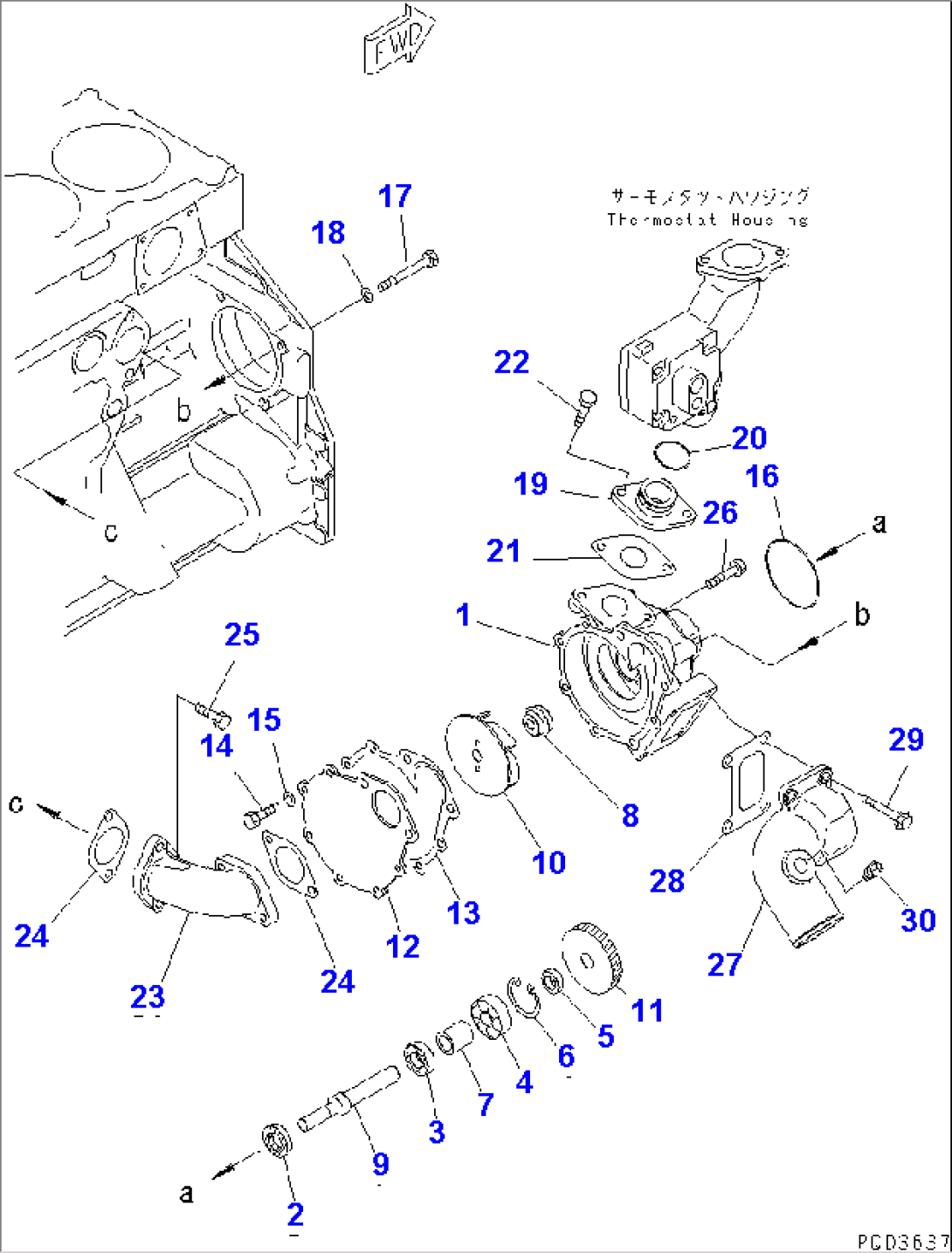

| Item | Part No. | Part Name | Qty | Serial No. |
| 6151-62-1102 | WATER PUMP ASS'Y | 75152- | ||
| 1 | \6\ | BODY | 71646- | |
| 2 | 6150-61-1510 | SEAL (K6) | 71646- | |
| 3 | 06030-06004 | BEARING | 71646- | |
| 4 | 06030-06304 | BEARING | 71646- | |
| 5 | 6150-61-1350 | SPACER | 71646- | |
| 6 | 04065-05220 | RING,SNAP | 71646- | |
| 7 | 6151-61-1360 | SPACER | 71646- | |
| 8 | 6211-61-1530 | SEAL¤ WATER (K6) | 75152- | |
| 9 | 6151-62-1310 | SHAFT | 71646- | |
| 10 | 6151-61-1210 | IMPELLER | 71646- | |
| 11 | 6150-61-1410 | GEAR | 71646- | |
| 12 | 6151-61-1151 | COVER | 71646- | |
| 13 | 6151-61-1162 | GASKET (K6) | 71646- | |
| 14 | 01010-80816 | BOLT | 71646- | |
| 15 | 01602-20825 | WASHER | 71646- | |
| 16 | 07000-72115 | O-RING | 82451- | |
| \0\07000-62115 | O-RING (K6) | 71646-82450 | ||
| 17 | 01011-81010 | BOLT | 71646- | |
| 18 | 01640-21016 | WASHER | 71646- | |
| 19 | 6150-62-6510 | CONNECTOR | 71646- | |
| 20 | 02893-05037 | O-RING (K6) | 71646- | |
| 21 | 6150-61-1821 | GASKET (K6) | 71646- | |
| 22 | 01010-81020 | BOLT | 71646- | |
| 23 | 6151-61-6311 | CONNECTOR | 71646- | |
| 24 | 6150-61-1821 | GASKET (K6) | 71646- | |
| 25 | 01010-81030 | BOLT | 71646- | |
| 26 | 01010-81035 | BOLT | 71646- | |
| 27 | 6150-61-6920 | CONNECTOR | 71646- | |
| 28 | 6150-61-6911 | GASKET (K6) | 71646- | |
| 29 | 01437-01025 | BOLT | 71646- | |
| 30 | 07042-00415 | PLUG | 71646- |
