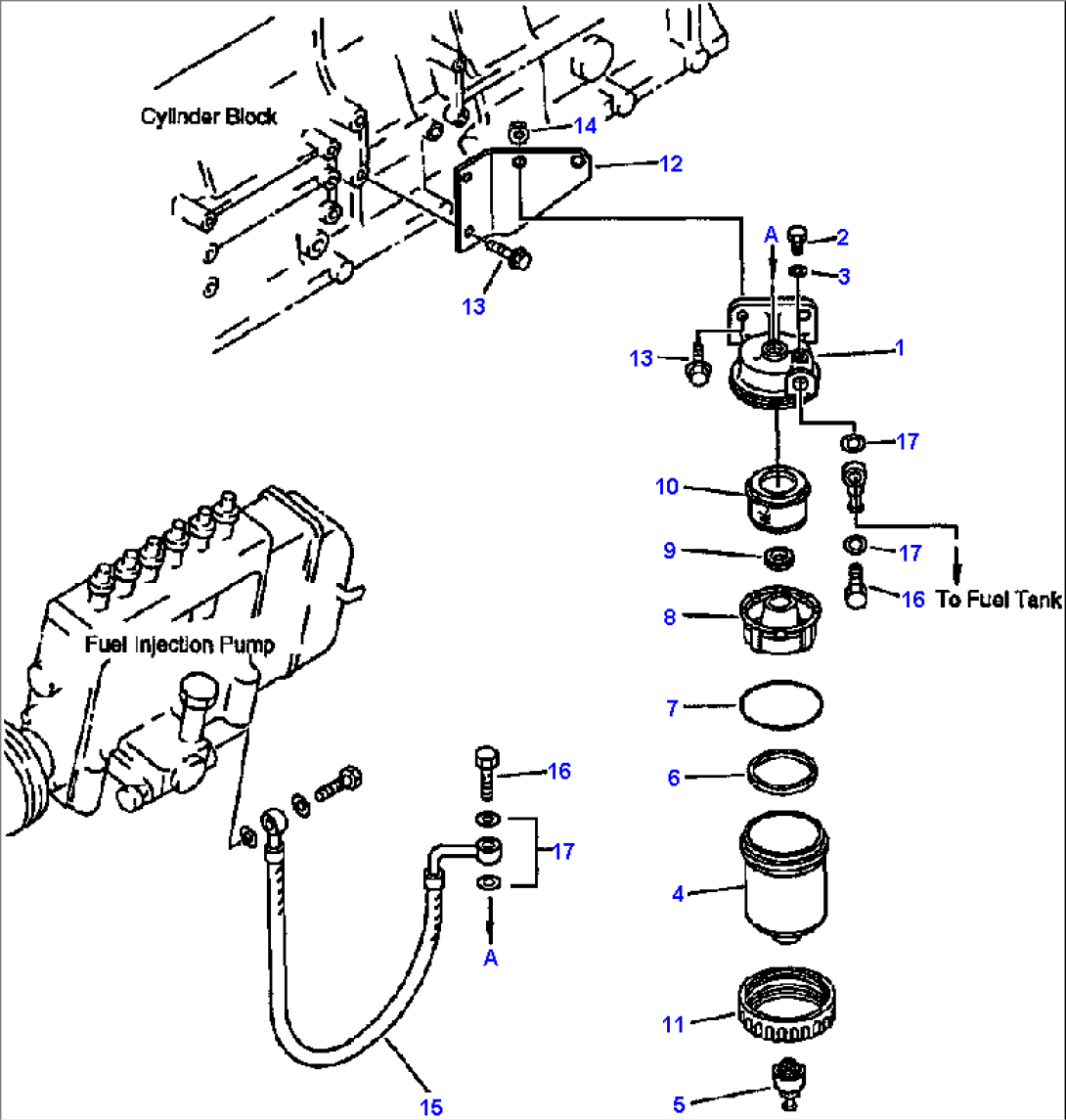

| Item | Part No. | Part Name | Qty | Serial No. |
| 600-311-9731 | SEPARATOR, WATER | | |
| 1 | 600-311-9911 | COVER | | |
| 2 | 6110-73-6231 | PLUG | | |
| 3 | 07005-00812 | GASKET, PLUG | | |
| 4 | 600-311-9920 | CASE | | |
| 5 | 600-311-9760 | PLUG, DRAIN | | |
| 6 | 600-311-9950 | RING, RETAINING | | |
| 7 | 600-311-9890 | O-RING | | |
| 8 | 600-311-9941 | PLATE | | |
| 9 | 600-311-9961 | GASKET | | |
| 10 | 600-311-9971 | SCREEN | | |
| 11 | 600-311-9931 | NUT | | |
| 12 | 6211-71-9230 | BRACKET, MOUNT SEPARATOR | | |
| 13 | 01435-01020 | BOLT, MOUNT BRACKET AND SEPARATOR | | |
| 14 | 01584-01008 | NUT, MOUNT SEPARATOR | | |
| 15 | 6210-71-5360 | HOSE, SEPARATOR TO INJECTION PUMP | | |
| 16 | 07206-31014 | BOLT, JOINT | | |
| 17 | 07005-01412 | GASKET | | |
| N/I | | GASKET KIT, CYLINDER BLOCK (SEE PG E9-002) | | |
| | | | |
| | F1 - INCLUDED IN CYLINDER BLOCK GASKET KIT 6211-K2-0105. | | |
| | | | |
