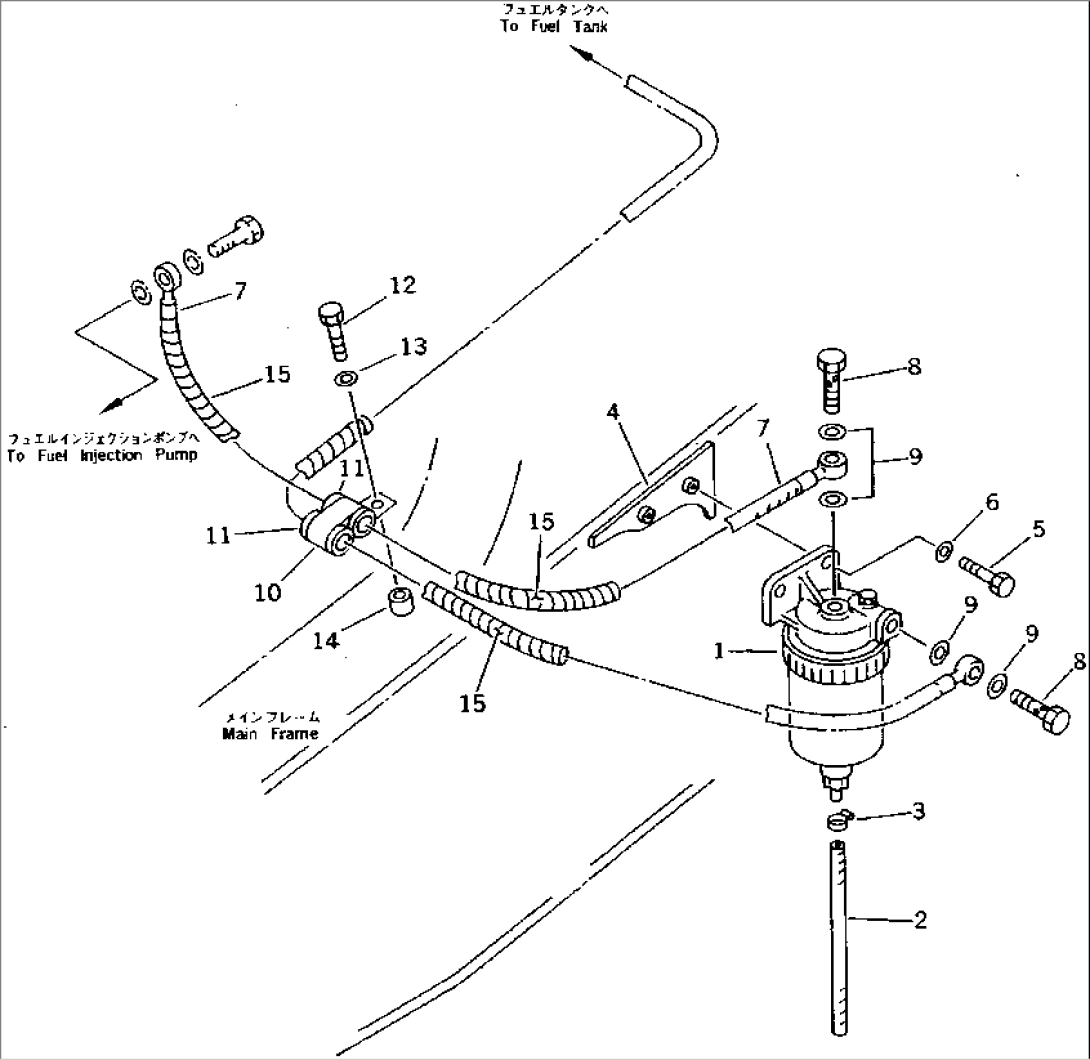

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-311-9731 | WATER SEPARATOR A. | 1001-1999 | |
| 2 | 07286-00820 | HOSE | 1001-1999 | |
| 3 | 07285-00125 | CLIP | 1001-1999 | |
| 4 | 566-84-6A130 | SEAT | 1001-1999 | |
| 5 | 01010-51025 | BOLT | 1001-1999 | |
| 6 | 01643-31032 | WASHER | 1001-1999 | |
| 7 | 07271-11480 | HOSE | 1001-1999 | |
| 8 | 07206-31014 | BOLT,JOINT | 1001-1999 | |
| 9 | 07005-01412 | SEAL, WASHER | 1001-1999 | |
| 10 | 391-62-19250 | CLIP | 1001-1999 | |
| 11 | 566-06-41290 | INSULATOR | 1001-1999 | |
| 12 | 01010-51020 | BOLT | 1001-1999 | |
| 13 | 01643-31032 | WASHER | 1001-1999 | |
| 14 | 01571-01016 | SEAT | 1001-1999 | |
| 15 | 565-04-11420 | TUBE,SPIRAL | 1001-1999 |
