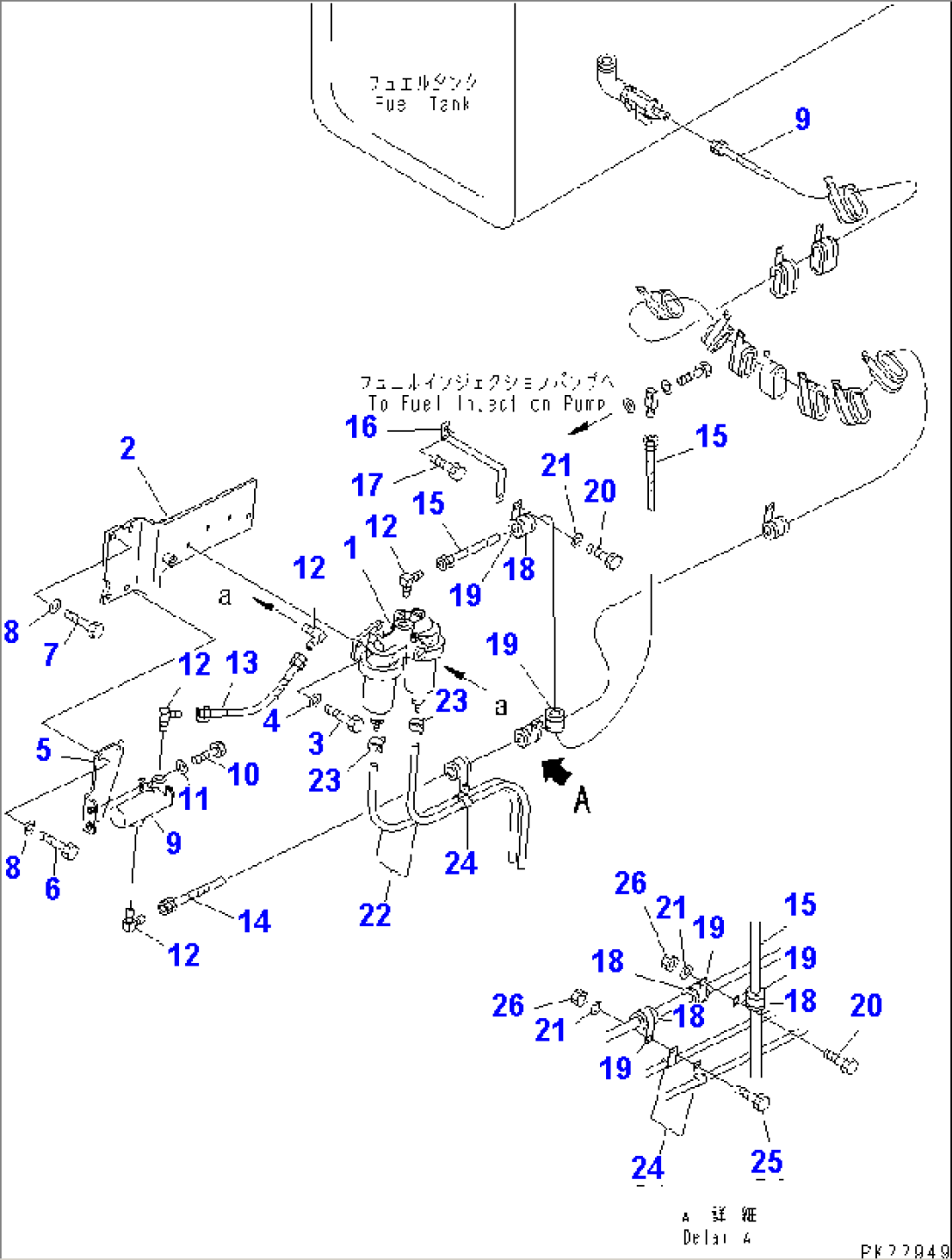

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-311-9711 | WATER SEPARATOR A. | 4001- | |
| 2 | 569-84-31120 | BRACKET | 4001- | |
| 3 | 01010-51035 | BOLT | 4001- | |
| 4 | 01643-31032 | WASHER | 4001- | |
| 5 | 07102-20448 | HOSE | 4001- | |
| 6 | 01010-51035 | BOLT | 4001- | |
| 7 | 01010-51030 | BOLT | 4001- | |
| 8 | 01643-31032 | WASHER | 4001- | |
| 9 | 07058-20000 | FILTER ASS'Y | 4001- | |
| 10 | 01010-50825 | BOLT | 4001- | |
| 11 | 01643-30823 | WASHER | 4001- | |
| 12 | 566-35-14410 | ELBOW | 4001- | |
| 13 | 07102-20403 | HOSE | 4001- | |
| 14 | 07102-20449 | HOSE | 4001- | |
| 15 | 07102-20410 | HOSE | 4001- | |
| 16 | 569-84-31130 | BRACKET | 4001- | |
| 17 | 01010-50865 | BOLT | 4001- | |
| 18 | 08036-03014 | CLIP | 4001- | |
| 19 | 561-43-41620 | INSULATOR | 4001- | |
| 20 | 01010-51016 | BOLT | 4001- | |
| 21 | 01643-31032 | WASHER | 4001- | |
| 22 | 07270-01080 | TUBE | 4001- | |
| 23 | 07285-00110 | CLIP | 4001- | |
| 24 | 08036-01414 | CLIP | 4001- | |
| 25 | 01010-51020 | BOLT | 4001- | |
| 26 | 01580-01008 | NUT | 4737- | |
| 26 | \0\01580-11008 | NUT | 4001-4736 |
