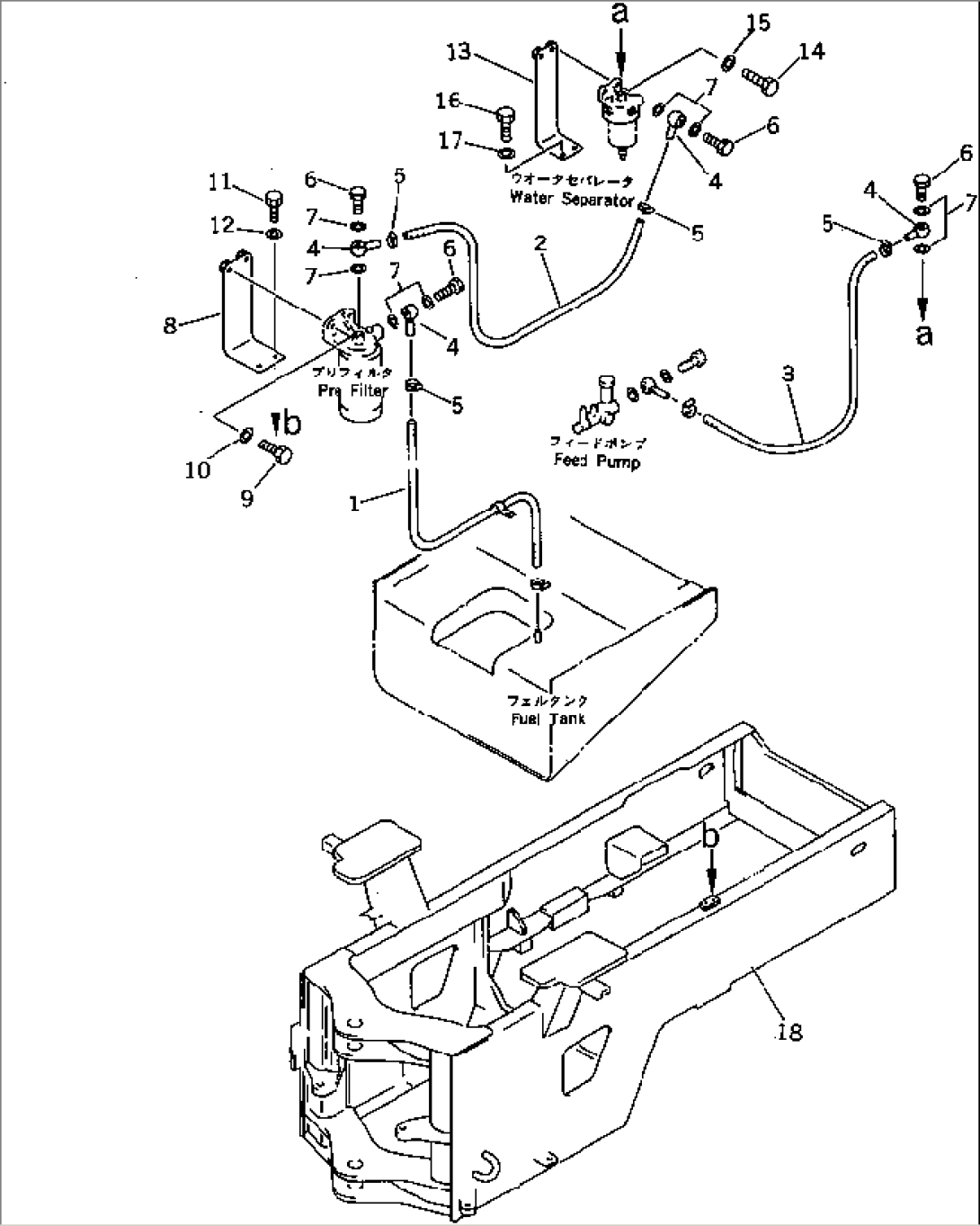

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07270-41010 | TUBE | 10001- | |
| 2 | 07270-21060 | TUBE | 10001- | |
| 3 | 07270-21060 | TUBE | 10001- | |
| 4 | 419-04-10130 | JOINT | 10001- | |
| 5 | 07281-00197 | CLAMP | 10001- | |
| 6 | 07206-11014 | BOLT,JOINT | 10001- | |
| 7 | 07005-01412 | GASKET | 10001- | |
| 8 | 41B-04-13110 | BRACKET | 10001- | |
| 9 | 01010-51030 | BOLT | 10001- | |
| 10 | 01643-31032 | WASHER | 10001- | |
| 11 | 01010-51020 | BOLT | 10001- | |
| 12 | 01643-31032 | WASHER | 10001- | |
| 13 | 418-04-11250 | BRACKET | 10001- | |
| 14 | 01010-50825 | BOLT | 10001- | |
| 15 | 01643-30823 | WASHER | 10001- | |
| 16 | 01010-51025 | BOLT | 10001- | |
| 17 | 01643-31032 | WASHER | 10001- | |
| 18 | 01573-20208 | SEAT (WELDED) | 10001- | |
| 19 | 01573-20206 | SEAT (WELDED) | 10001- | |
| 20 | 419-Z02-1110 | TUBE | 10001- | |
| 21 | 07280-01210 | CLAMP | 10001- | |
| 22 | 08034-20519 | BAND | .- | |
| 08034-00519 | BAND | 10001-. | ||
| 23 | 08034-20519 | BAND | .- | |
| 08034-00519 | BAND | 10001-. |
