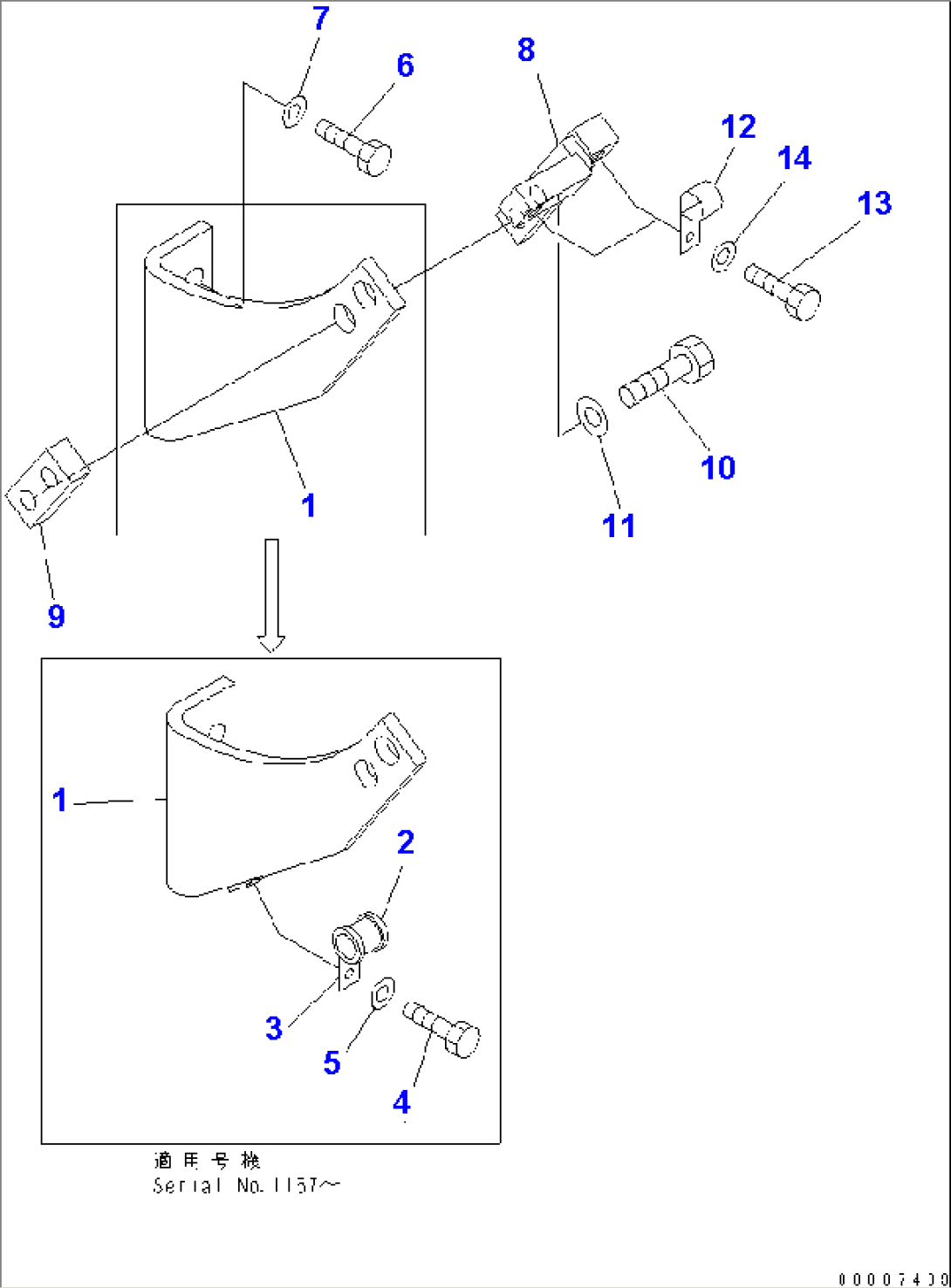

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-01-61792 | BRACKET | 1167- | |
| 134-01-61791 | BRACKET | 1164-1166 | ||
| 2 | 07095-20213 | CUSHION | 1167- | |
| 3 | 04434-51910 | CLIP | 1167- | |
| 4 | 01010-81020 | BOLT | 1167- | |
| 5 | 01643-31032 | WASHER | 1167- | |
| 6 | 01010-81025 | BOLT | 1164- | |
| 7 | 01643-31032 | WASHER | 1164- | |
| 8 | 134-01-61850 | BRACKET | 1164- | |
| 9 | 198-61-11280 | SEAT | 1164- | |
| 10 | 01010-81035 | BOLT | 1164- | |
| 11 | 01643-31032 | WASHER | 1164- | |
| 12 | 04434-51010 | CLIP | 1164- | |
| 13 | 01010-81020 | BOLT | 1164- | |
| 14 | 01643-31032 | WASHER | 1164- |
