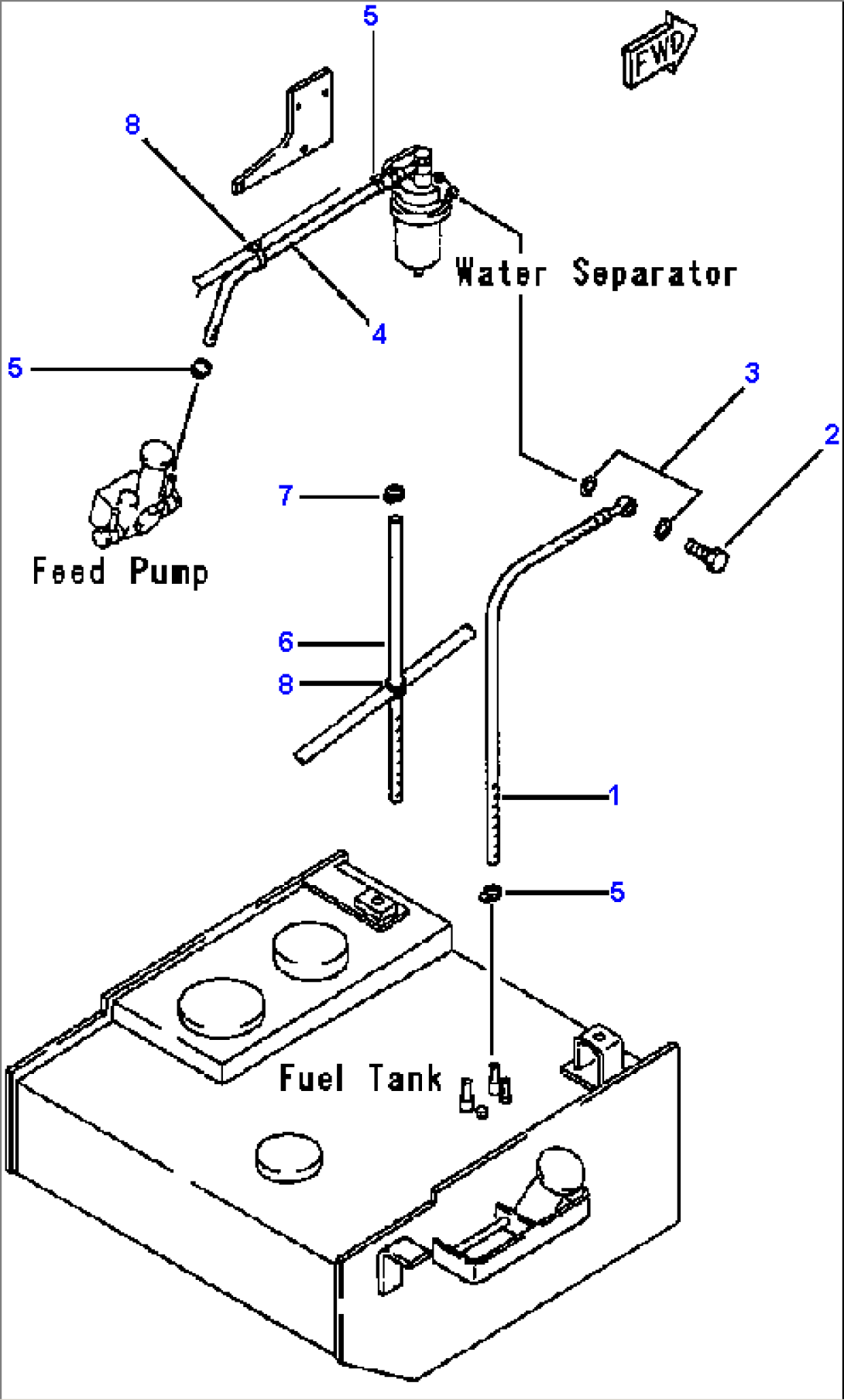

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-04-14111 | HOSE, FUEL TANK TO SEPARATOR | ||
| 2 | 07206-11014 | BOLT | ||
| 3 | 07005-01412 | GASKET | ||
| 4 | 07270-21042 | HOSE, SEPARATOR TO FEED PUMP | ||
| 5 | 07281-00197 | CLAMP, HOSE | ||
| 6 | 07270-21061 | HOSE, DRAIN | ||
| 7 | 07281-00197 | CLAMP, HOSE | ||
| 8 | 08034-20519 | STRAP, TIE |
