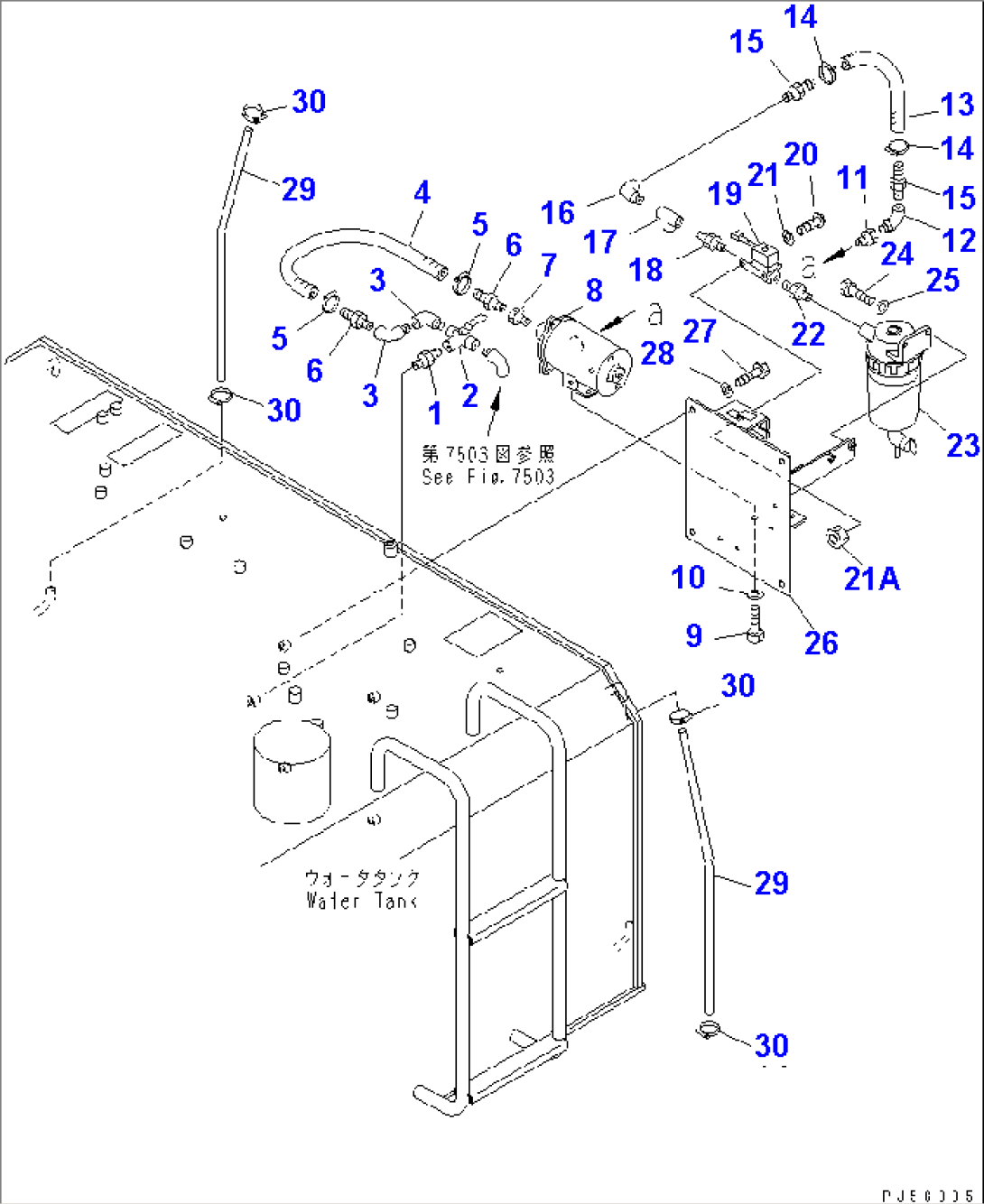

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07325-20400 | NIPPLE | 12001-12029 | |
| 2 | 262-870-5210 | VALVE ASS'Y,3-WAY | 12001-12029 | |
| 3 | 07323-90400 | ELBOW | 12001-12029 | |
| 4 | 262-71-72110 | HOSE | 12001-12029 | |
| 5 | 07281-00289 | CLAMP | 12001-12029 | |
| 6 | 262-71-72240 | JOINT | 12001-12029 | |
| 7 | 07326-20604 | ADAPTER | 12001-12029 | |
| 8 | 262-71-71100 | PUMP ASS'Y,WATER | 12001-12029 | |
| 9 | 01010-50814 | BOLT | 12001-12029 | |
| 10 | 01643-30823 | WASHER | 12001-12029 | |
| 11 | 07326-20604 | ADAPTER | 12001-12029 | |
| 12 | 07323-90400 | ELBOW | 12001-12029 | |
| 13 | 262-71-72120 | HOSE | 12001-12029 | |
| 14 | 07281-00289 | CLAMP | 12001-12029 | |
| 15 | 262-71-72240 | JOINT | 12001-12029 | |
| 16 | 07323-90400 | ELBOW | 12001-12029 | |
| 17 | 07324-20400 | TEE | 12001-12029 | |
| 18 | 07325-20400 | NIPPLE | 12001-12029 | |
| 19 | 262-71-71700 | VALVE ASS'Y,SOLENOID | 12001-12029 | |
| 20 | 01220-40525 | SCREW | 12006-12029 | |
| 01220-40510 | SCREW | 12001-12005 | ||
| 21 | 01641-20508 | WASHER | 12001-12029 | |
| 21A | 01580-10504 | NUT | 12006-12029 | |
| 22 | 26A-80-11160 | NIPPLE | 12001-12029 | |
| 23 | 262-71-71400 | FILTER ASS'Y,WATER | 12001-12029 | |
| 262-71-71410 | ELEMENT | 12001-12029 | ||
| 24 | 01010-50825 | BOLT | 12001-12029 | |
| 25 | 01643-30823 | WASHER | 12001-12029 | |
| 26 | 262-71-72160 | BRACKET | 12001-12029 | |
| 27 | 01010-51025 | BOLT | 12001-12029 | |
| 28 | 01643-31032 | WASHER | 12001-12029 | |
| 29 | 262-71-72200 | GAUGE ASS'Y,WATER LEVEL | 12001-12029 | |
| 30 | 07281-00167 | CLAMP | 12001-12029 |
