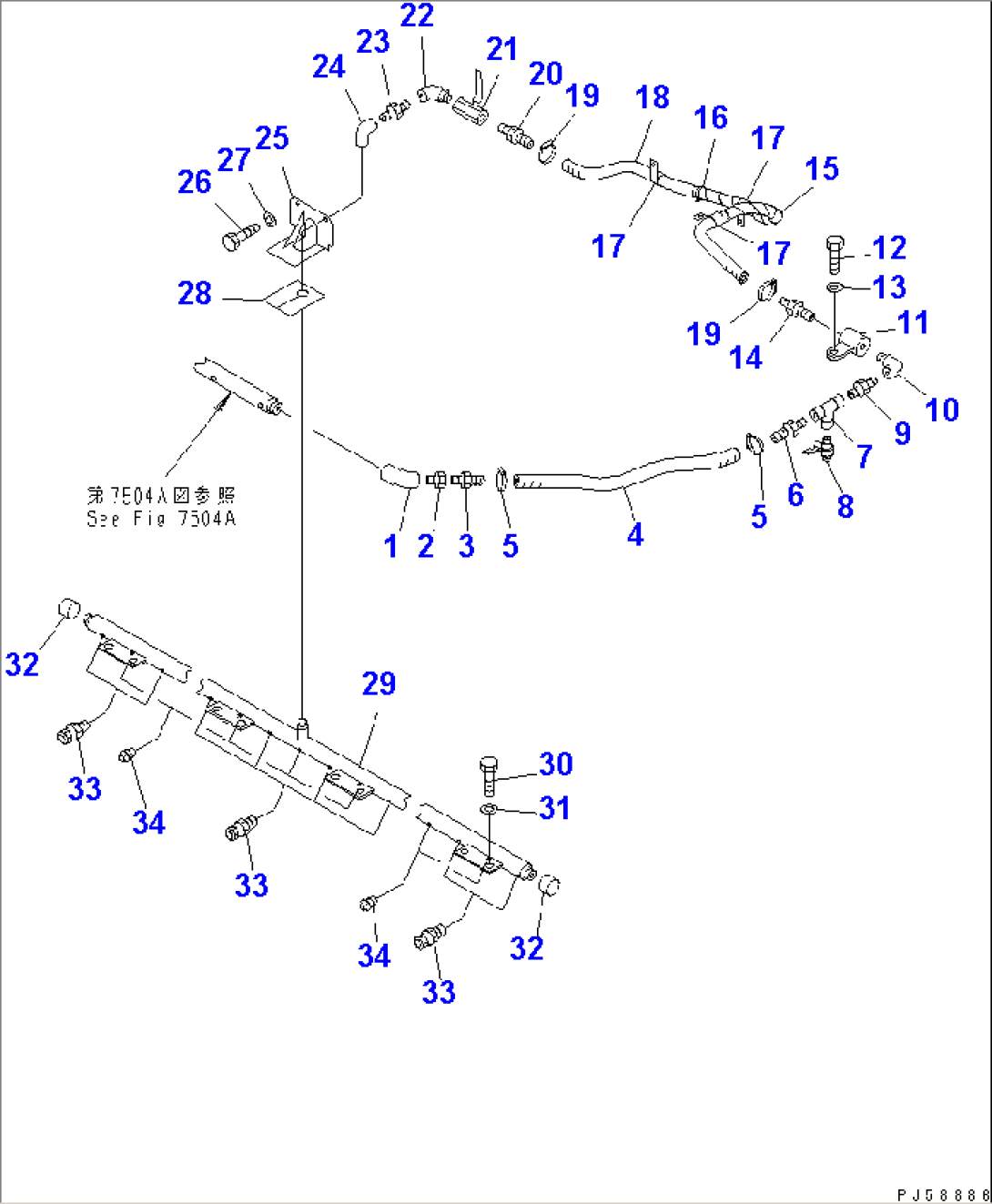

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07323-C0600 | ELBOW | 12024- | |
| 2 | 07326-10604 | ADAPTER | 12024- | |
| 3 | 262-71-72240 | JOINT | 12024- | |
| 4 | 262-71-73240 | HOSE | 12024- | |
| 5 | 07281-00289 | CLAMP | 12024- | |
| 6 | 262-71-72240 | JOINT | 12024- | |
| 7 | 07324-20400 | TEE | 12024- | |
| 8 | 262-71-72230 | VALVE | 12024- | |
| 9 | 07325-20400 | NIPPLE | 12024- | |
| 10 | 07323-90400 | ELBOW | 12024- | |
| 11 | 262-71-72250 | JOINT | 12024- | |
| 12 | 01010-51016 | BOLT | 12024- | |
| 13 | 01643-31032 | WASHER | 12024- | |
| 14 | 262-71-72240 | JOINT | 12024- | |
| 15 | 273-60-24450 | TUBE,SPIRAL | 12024- | |
| 16 | 08034-00834 | BAND | 12024- | |
| 17 | 04434-53211 | CLIP | 12024- | |
| 18 | 262-71-73230 | HOSE | 12024- | |
| 19 | 07281-00289 | CLAMP | 12024- | |
| 20 | 262-71-72240 | JOINT | 12024- | |
| 21 | 07700-40460 | VALVE | 12024- | |
| 22 | 07323-90400 | ELBOW | 12024- | |
| 23 | 07325-20400 | NIPPLE | 12024- | |
| 24 | 07323-80400 | ELBOW | 12024- | |
| 25 | 262-70-72840 | COVER | 12024- | |
| 26 | 01010-50820 | BOLT | 12024- | |
| 27 | 01643-30823 | WASHER | 12024- | |
| 28 | 262-70-72850 | RUBBER | 12024- | |
| 29 | 262-71-73220 | TUBE | 12024- | |
| 30 | 01010-51225 | BOLT | 12024- | |
| 31 | 01643-31232 | WASHER | 12024- | |
| 32 | 262-71-73140 | CAP | 12024- | |
| 33 | 262-71-71510 | NOZZLE | 12024- | |
| 262-71-71520 | NOZZLE,FLAT (OPT) | 12024- | ||
| 34 | 07042-20108 | PLUG | 12024- |
