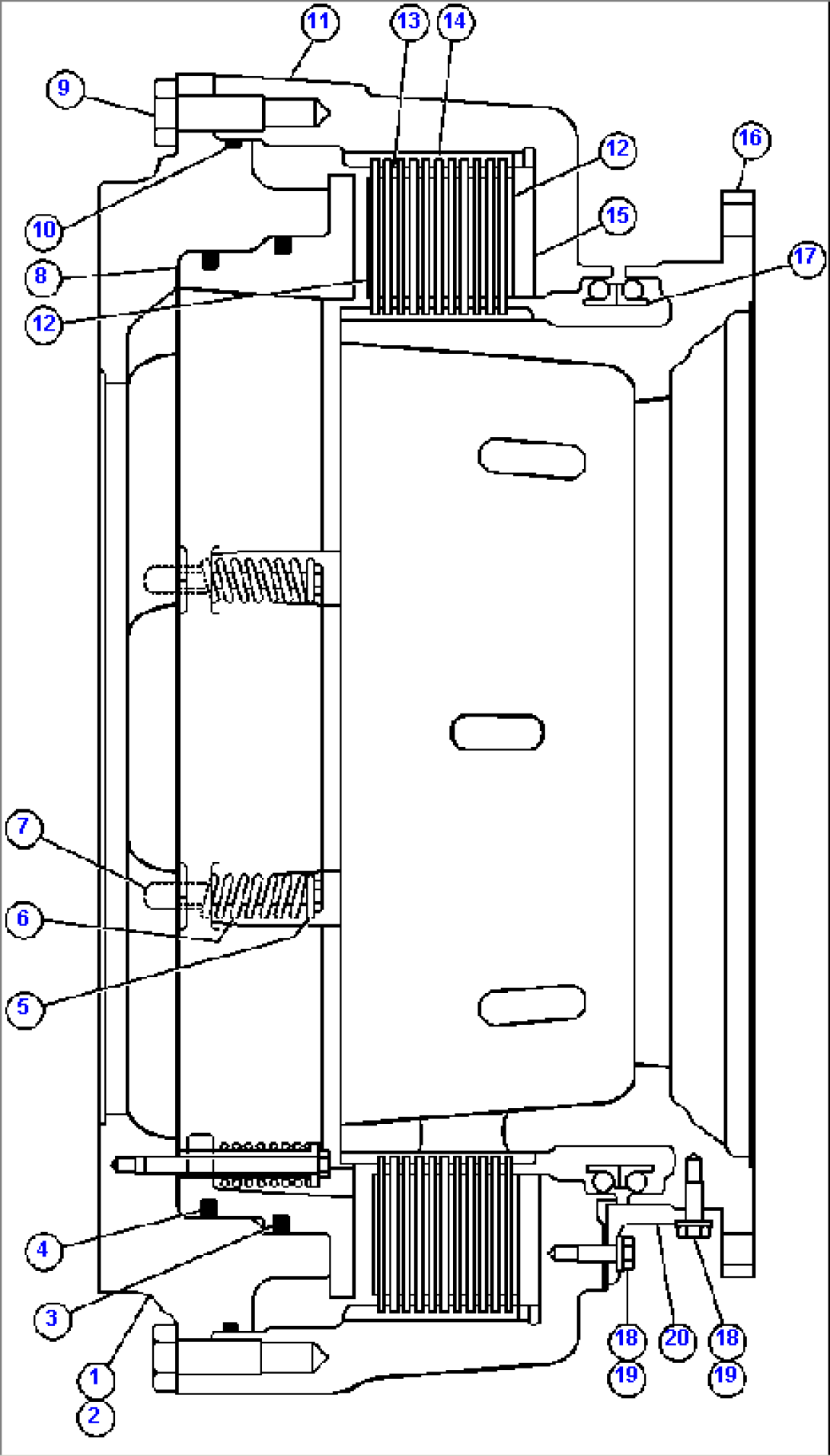

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TZ8273 | PISTON & HOUSING ASSM | ||
| 2 | TZ8260 | HOUSING, PISTON | ||
| 3 | PB7603 | SEAL | ||
| 4 | PB7425 | SEAL | ||
| 5 | TY3257 | GUIDE, SPRING | ||
| 6 | WA4765 | SPRING | ||
| 7 | VN9136 | CAPSCREW - 3/8" - 16NC X 4" | ||
| 8 | TZ8262 | PISTON | ||
| 9 | VN9066 | CAPSCREW - 3/4" - 10NC X 2" | ||
| 10 | WA4647 | O-RING | ||
| 11 | TZ8264 | HOUSING | ||
| 12 | PB7602 | DAMPER | ||
| 13 | PB7600 | DISC, FRICTION | ||
| 14 | PB7601 | PLATE, SEPARATOR | ||
| 15 | TZ8271 | SPACER | ||
| 16 | TZ8266 | HUB | ||
| 17 | PB6727 | SEAL ASSM | ||
| 18 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 19 | C0312 | LOCKWASHER - 3/8" | ||
| 20 | TY4236 | ANGLE |
