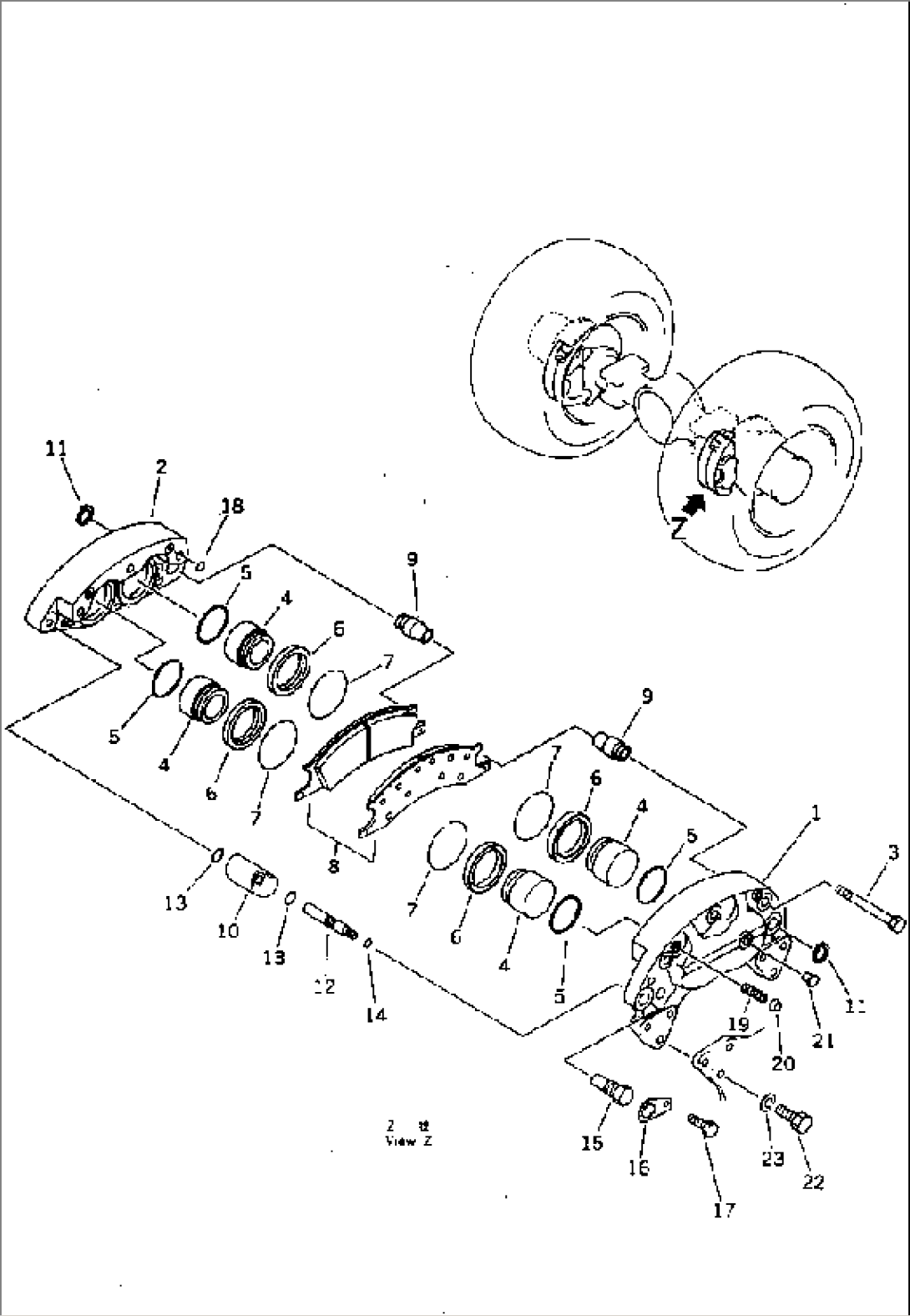

| Item | Part No. | Part Name | Qty | Serial No. |
| 273-32-11101 | WHEEL BRAKE ASS'Y,L.H. | 10449- | ||
| 273-32-11100 | WHEEL BRAKE ASS'Y,L.H. | 10011-10448 | ||
| 273-32-11201 | WHEEL BRAKE ASS'Y,R.H. | 10449- | ||
| 273-32-11200 | WHEEL BRAKE ASS'Y,R.H. | 10011-10448 | ||
| 1 | \6\ | CALIPER,L.H. INNER | 10011- | |
| \6\ | CALIPER,R.H. INNER | 10011- | ||
| 2 | \6\ | CALIPER,L.H. OUTER | 10011- | |
| \6\ | CALIPER,R.H. OUTER | 10011- | ||
| 3 | 273-32-11160 | BOLT | 10011- | |
| 4 | 273-32-11230 | PISTON | 10011- | |
| 273-32-01100 | SEAL KIT | 10011- | ||
| 5 | 273-32-11240 | SEAL,PISTON | 10011- | |
| 6 | 273-32-11250 | SEAL,DUST | 10011- | |
| 7 | 273-32-11260 | RING,RETAINING | 10011- | |
| 273-32-01201 | PAD KIT | 10449- | ||
| 273-32-01200 | PAD KIT | 10011-10448 | ||
| 8 | \6\ | PAD | 10449- | |
| \6\ | PAD | 10011-10448 | ||
| 9 | 273-32-11210 | PIN | 10011- | |
| 10 | \6\ | LATCH,L.H. | 10011- | |
| \6\ | LATCH,R.H. | 10011- | ||
| 11 | 273-32-11220 | RING,SNAP | 10011- | |
| 12 | 273-32-11170 | PIN | 10011- | |
| 273-32-01300 | O-RING KIT | 10011- | ||
| 13 | \6\ | O-RING | 10011- | |
| 14 | \6\ | O-RING | 10011- | |
| 15 | 273-32-11190 | BOLT | 10011- | |
| 16 | 273-32-11180 | PLATE,LOCK | 10011- | |
| 17 | 273-32-11360 | BOLT | 10011- | |
| 18 | \6\ | SEAL,CALIPER | 10449- | |
| \6\ | SEAL,CALIPER | 10011-10448 | ||
| 19 | 273-32-11350 | BLEEDER | 10011- | |
| 20 | 273-32-11310 | CAP | 10011- | |
| 21 | 273-32-11320 | PLUG,RUBBER | 10011- | |
| 22 | 01010-52065 | BOLT | 10011- | |
| 23 | 01643-32060 | WASHER | 10011- |
