| Item | Part No. | Part Name | Qty | Serial No. |
| 176-76-01007 | WINCH ASS'Y | 23891- | ||
| \0\176-76-01004 | WINCH ASS'Y | 23541-23890 | ||
| \0\176-76-01003 | WINCH ASS'Y | 21739-23540 | ||
| \0\176-76-01002 | WINCH ASS'Y | 15686-21738 | ||

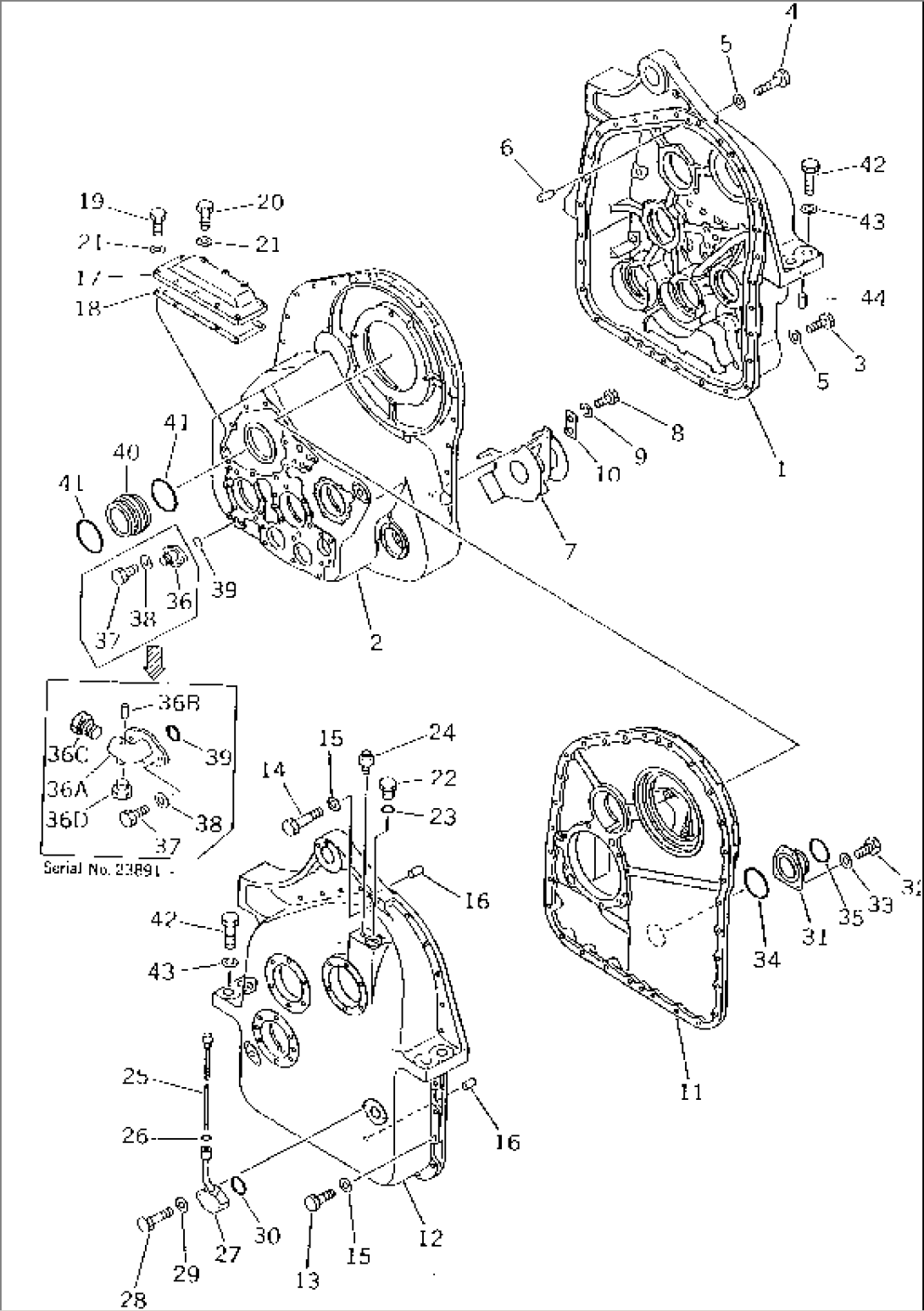

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F1620 -1635 AND FIGS.1651- 1656. | ||||
| 1 | 176-76-61110 | CASE | 15686- | |
| 2 | 176-76-61160 | CASE | 15686- | |
| 3 | 01010-81655 | BOLT | 15686- | |
| 4 | 01010-81690 | BOLT | 15686- | |
| 5 | 01643-31645 | WASHER | 15686- | |
| 6 | 04020-01638 | PIN,DOWEL | 15686- | |
| 7 | 176-76-61170 | BRACKET | 15686- | |
| 8 | 01010-81020 | BOLT | 15686- | |
| 9 | 01602-01030 | WASHER,SPRING | 15686- | |
| 10 | 04081-05012 | LOCK | 15686- | |
| 11 | 176-76-61140 | CASE | 15686- | |
| 12 | 176-76-61150 | CASE | 15686- | |
| 13 | 01010-81655 | BOLT | 15686- | |
| 14 | 01010-81690 | BOLT | 15686- | |
| 15 | 01643-31645 | WASHER | 15686- | |
| 16 | 04020-01638 | PIN,DOWEL | 15686- | |
| 17 | 176-76-61120 | COVER | 15686- | |
| 18 | 176-76-61230 | GASKET | 15686- | |
| 19 | 01010-81035 | BOLT | 15686- | |
| 20 | 01010-81080 | BOLT | 15686- | |
| 21 | 01643-31032 | WASHER | 15686- | |
| 22 | 07040-04220 | PLUG | 15686- | |
| 23 | 07002-44234 | O-RING | 15686- | |
| 24 | 07030-10252 | BREATHER | 15686- | |
| 25 | 113-15-18151 | GAUGE | 15686- | |
| 26 | 07002-42434 | O-RING | 15686- | |
| 27 | 176-76-61260 | TUBE | 15686- | |
| 28 | 01010-81050 | BOLT | 15686- | |
| 29 | 01643-31032 | WASHER | 15686- | |
| 30 | 07000-42075 | O-RING | 15686- | |
| 31 | 176-76-61250 | TUBE | 15686- | |
| 32 | 01010-81030 | BOLT | 15686- | |
| 33 | 01643-31032 | WASHER | 15686- | |
| 34 | 07000-42110 | O-RING | 15686- | |
| 35 | 07000-42100 | O-RING | 15686- | |
| 36 | 196-76-13100 | VALVE ASS'Y | 23891- | |
| \0\6693-22-5600 | VALVE ASS'Y | 15686-23890 | ||
| 36A | 196-76-13110 | ELBOW | 23891- | |
| 36B | 04020-00514 | PIN,DOWEL | 23891- | |
| 36C | 6693-22-5620 | VALVE | 23891- | |
| 36D | 07040-12414 | PLUG | 23891- | |
| 37 | 01010-81030 | BOLT | 15686- | |
| 38 | 01643-31032 | WASHER | 15686- | |
| 39 | 07000-43028 | O-RING | 15686- | |
| 40 | 176-76-61240 | GUIDE | 15686- | |
| 41 | 07000-42140 | O-RING | 15686- | |
| 42 | 01011-63915 | BOLT | 15686- | |
| 43 | 01643-33990 | WASHER | 15686- | |
| 44 | 04020-01842 | PIN,DOWEL | 15686- |
