| Item | Part No. | Part Name | Qty | Serial No. |
| (176-76-01008) | WINCH ASS'Y,D355CD155C | 31574- | ||
| (\0\176-76-01007) | WINCH ASS'Y | 23891-31573 | ||
| (\0\176-76-01004) | WINCH ASS'Y | 23541-23890 | ||
| (\0\176-76-01003) | WINCH ASS'Y | 21739-23540 | ||
| (\0\176-76-01002) | WINCH ASS'Y | 15686-21738 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.T2240-01A0 TO T2240-17A0. | ||||
| 176-76-00203 | BRAKE ASS'Y,HOOK | 23541- | ||
| \0\176-76-00201 | BRAKE ASS'Y,HOOK | 15686-23540 | ||
| 176-76-00213 | BRAKE ASS'Y,BOOM | 23541- | ||
| \0\176-76-00211 | BRAKE ASS'Y,BOOM | 15686-23540 | ||

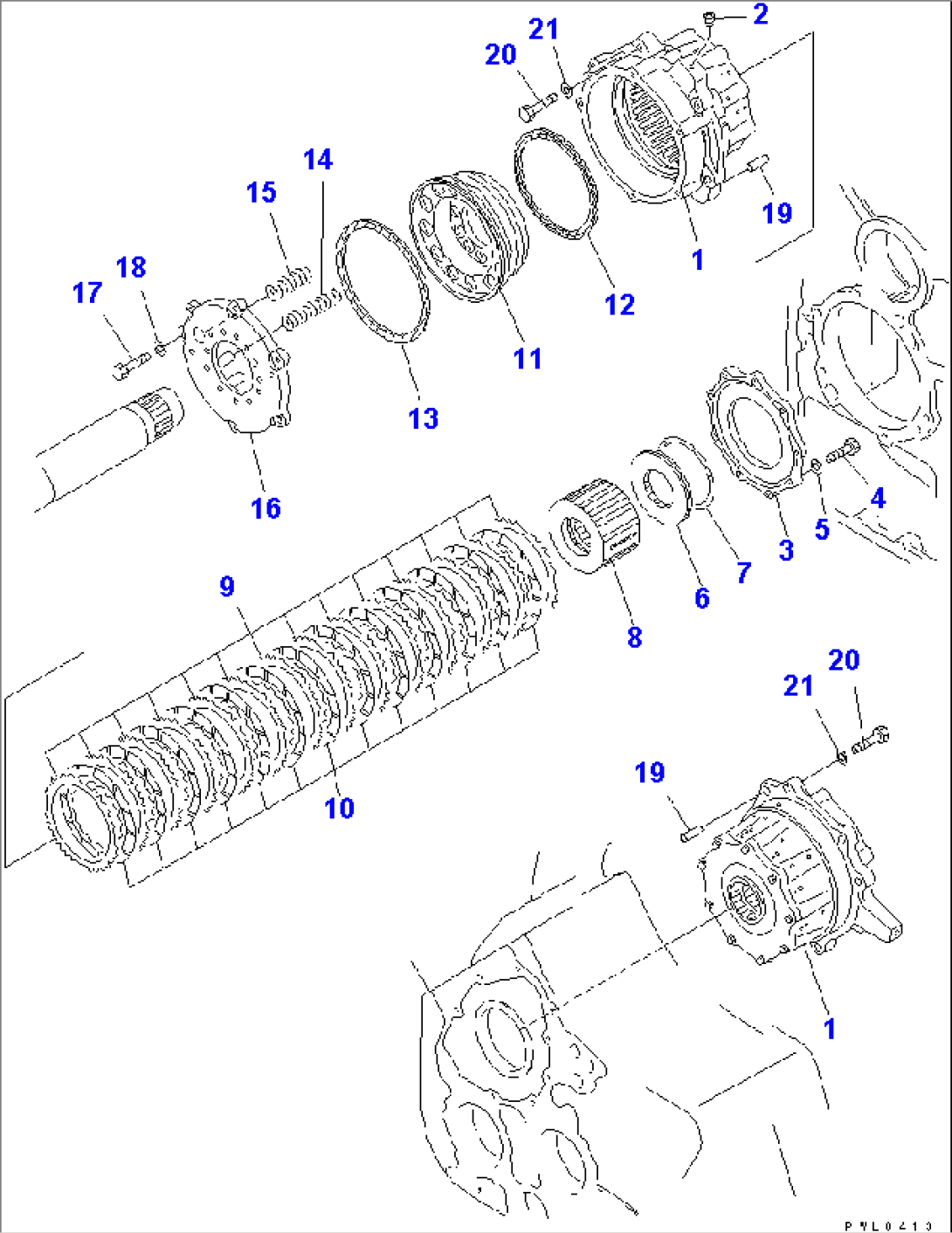

| 1 | 176-76-64110 | DRUM | 15686- | |
| 1 | 176-76-64120 | DRUM | 15686- | |
| 2 | 07043-70312 | PLUG | 15686- | |
| 3 | 176-76-64160 | COVER | 15686- | |
| 4 | 01010-81040 | BOLT | 15686- | |
| 5 | 01643-31032 | WASHER | 15686- | |
| 6 | 176-76-64240 | RETAINER | 15686- | |
| 7 | 07018-31606 | RING,SEAL | 15686- | |
| 8 | 176-76-64250 | DRUM | 15686- | |
| 9 | 176-76-63210 | PLATE | 15686- | |
| 10 | 176-76-64151 | DISK | 23541- | |
| \0\176-76-64150 | DISC | 15686-23540 | ||
| 11 | 176-76-64170 | PISTON | 15686- | |
| 12 | 567-15-12830 | RING,SEAL | 15686- | |
| 13 | 113-15-12840 | RING,SEAL | 15686- | |
| 14 | 176-76-64190 | SPRING | 15686- | |
| 15 | 176-76-64210 | SPRING | 15686- | |
| 16 | 176-76-64220 | COVER | 15686- | |
| 17 | 01010-81245 | BOLT | 15686- | |
| 18 | 01643-31232 | WASHER | 15686- | |
| 19 | 176-76-64130 | PIN | 15686- | |
| 20 | 01010-81655 | BOLT | 15686- | |
| 21 | 01643-31645 | WASHER | 15686- |
