| Item | Part No. | Part Name | Qty | Serial No. |
| (176-76-01008) | WINCH ASS'Y,D355CD155C | 31574- | ||
| (\0\176-76-01007) | WINCH ASS'Y | 23891-31573 | ||
| (\0\176-76-01004) | WINCH ASS'Y | 23541-23890 | ||
| (\0\176-76-01003) | WINCH ASS'Y | 21739-23540 | ||
| (\0\176-76-01002) | WINCH ASS'Y | 15686-21738 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.T2240-01A0 TO T2240-17A0. | ||||

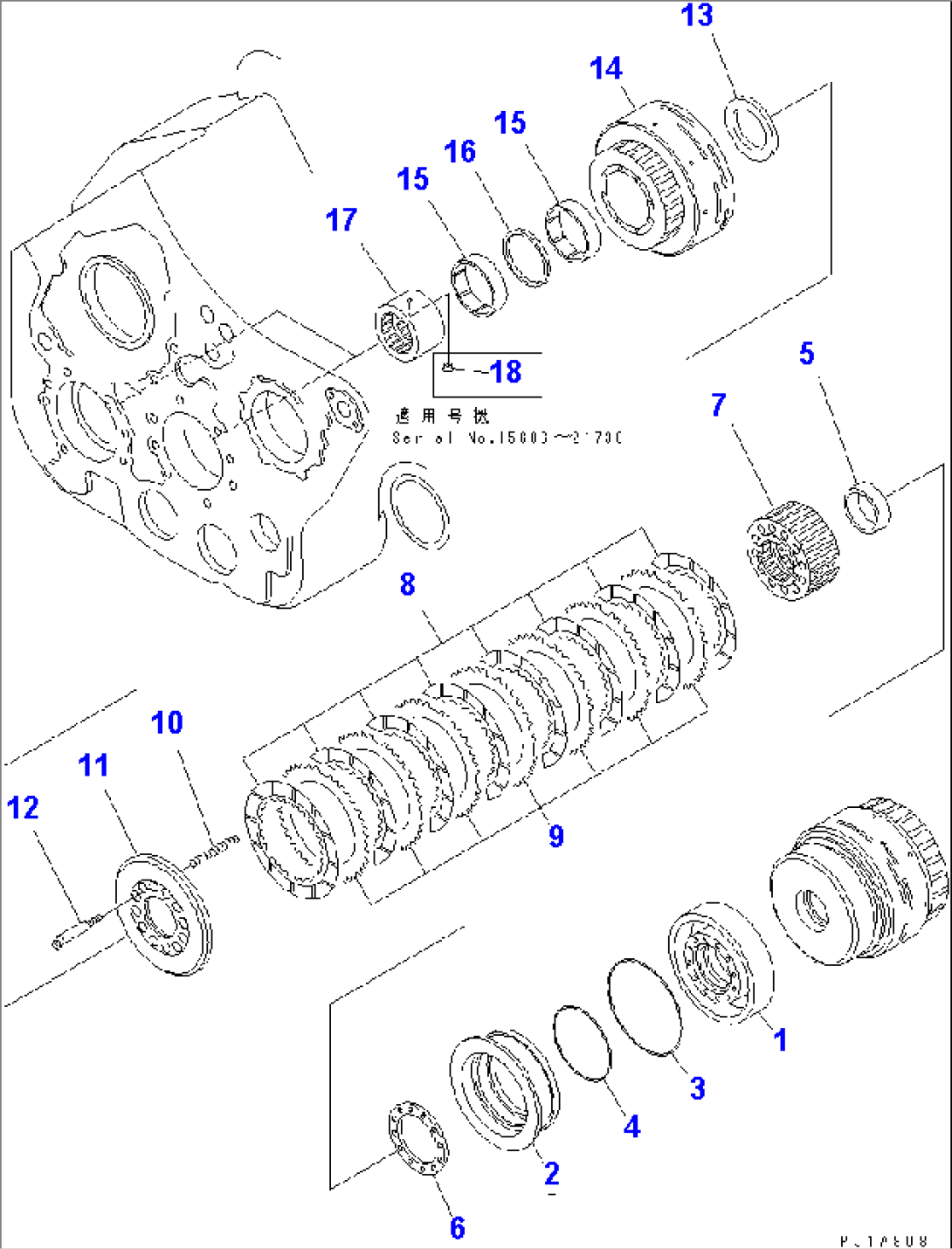

| 176-76-00302 | CLUTCH ASS'Y,BOOM & HOOK | 23541- | ||
| \0\176-76-00301 | CLUTCH ASS'Y | 21739-23540 | ||
| \0\176-76-00300 | CLUTCH ASS'Y | 15686-21738 | ||
| 1 | 176-76-63110 | DRUM | 15686- | |
| 2 | 176-76-63120 | PISTON | 15686- | |
| 3 | 07000-45180 | O-RING | 15686- | |
| 4 | 07000-45135 | O-RING | 15686- | |
| 5 | 176-76-63130 | COLLAR | 15686- | |
| 6 | 176-76-63150 | PLATE | 15686- | |
| 7 | 176-76-63140 | DRUM | 15686- | |
| 8 | 176-76-64151 | DISK | 23541- | |
| \0\176-76-64150 | DISC | 15686-23540 | ||
| 9 | 176-76-63210 | PLATE | 15686- | |
| 10 | 176-76-63170 | SPRING | 15686- | |
| 11 | 176-76-63180 | PLATE | 15686- | |
| 12 | 176-76-63160 | BOLT | 15686- | |
| 13 | 176-76-63390 | SPACER | 15686- | |
| 14 | 176-76-63220 | DRUM | 15686- | |
| 15 | 170-14-14250 | BUSHING | 15686- | |
| 16 | 175-14-15590 | COLLAR | 15686- | |
| 17 | 176-76-63250 | RACE,INNER | 15686- | |
| 18 | 176-76-63260 | VALVE | 15686-21738 |
