| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07221-20210 | NUT | 15001- | |
| 2 | 07222-00210 | PLUG | 15001- | |
| 3 | 22T-61-25220 | HOSE | 15001- | |
| 4 | 22T-61-25280 | HOSE | 15001- | |
| 5 | 22T-61-25310 | HOSE | 15001- | |
| 6 | 22T-61-24151 | TUBE | 15001- |
- Главная
- Каталог запчастей
- Автокраны
- Lw100 1x s/n 15001 up (x type)
- Hydraulic system
- Winch hydraulic line (control line) (check valve hose)
Поиск по каталогу

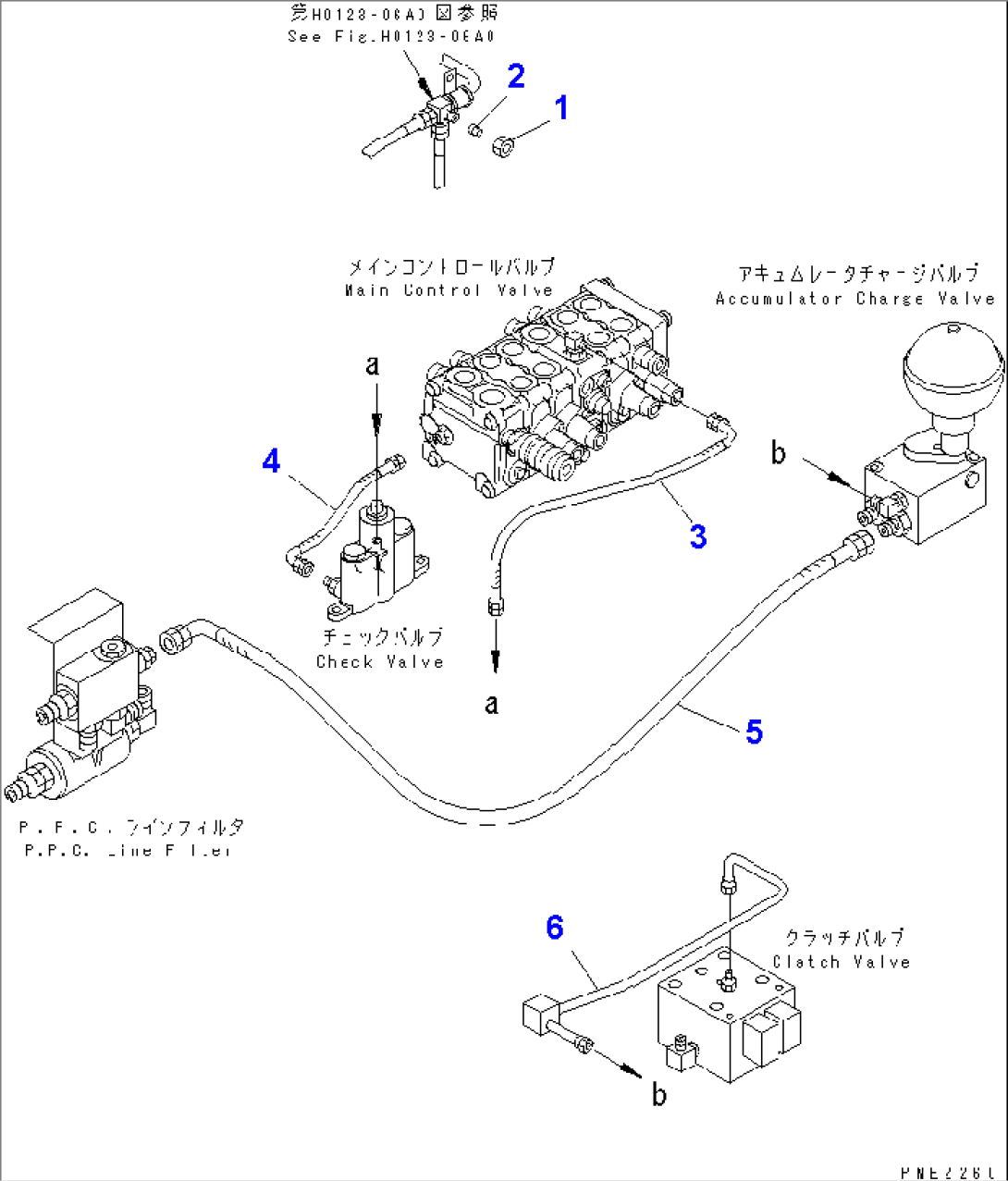

WINCH HYDRAULIC LINE (CONTROL LINE) (CHECK VALVE HOSE)
