| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22T-61-24340 | TUBE | 15001- | |
| 2 | 22T-61-11540 | CUSHION | 15001- | |
| 3 | 22T-61-24350 | NIPPLE | 15001- | |
| 4 | 01582-11411 | NUT | 15001- | |
| 5 | 22T-61-21522 | HOSE | 15301- |
- Главная
- Каталог запчастей
- Автокраны
- Lw100 1x s/n 15001 up (x type)
- Hydraulic system
- Winch hydraulic line (control line) (sub winch clutch)(#15301 )
Поиск по каталогу

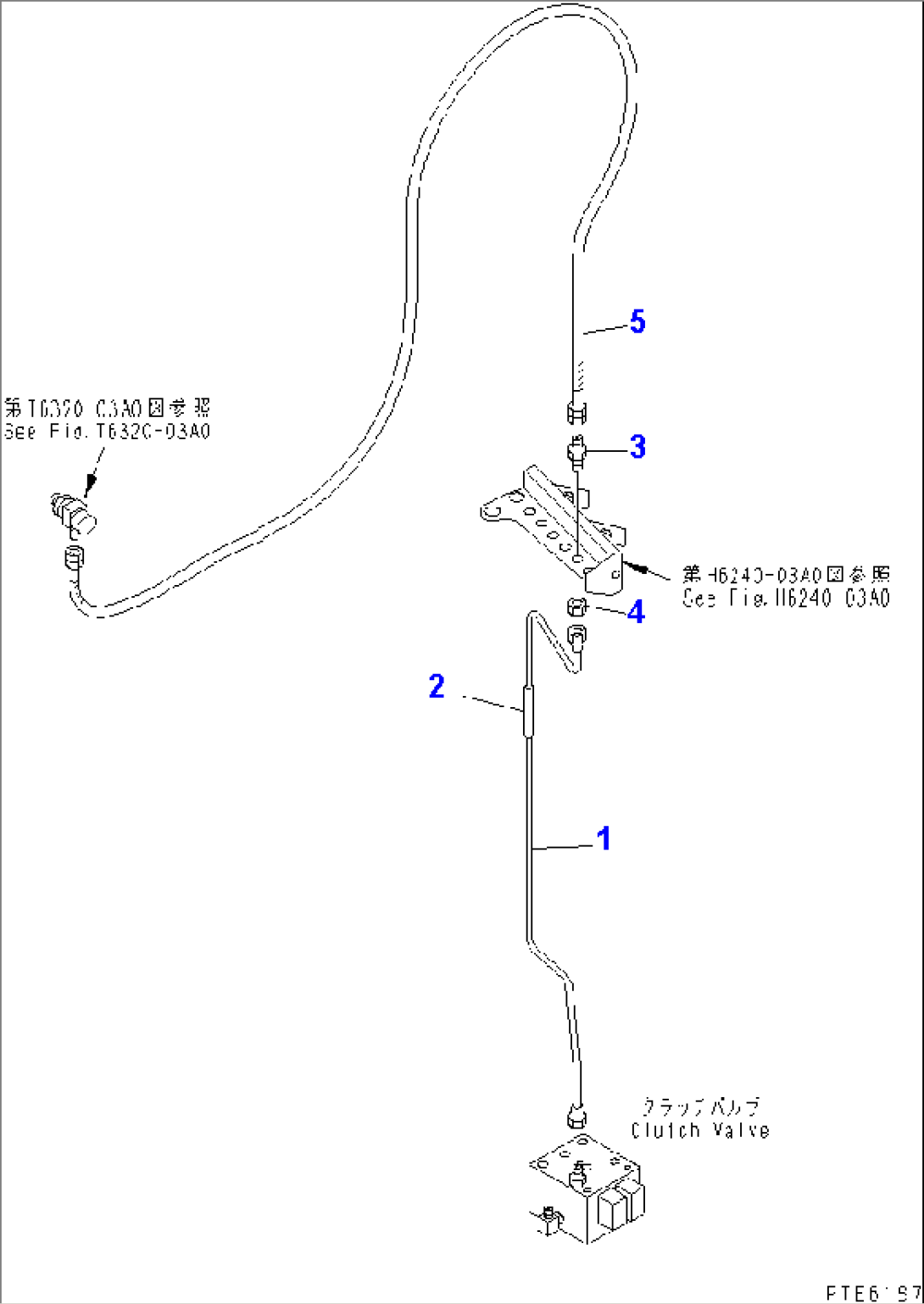

WINCH HYDRAULIC LINE (CONTROL LINE) (SUB WINCH CLUTCH)(#15301-)
