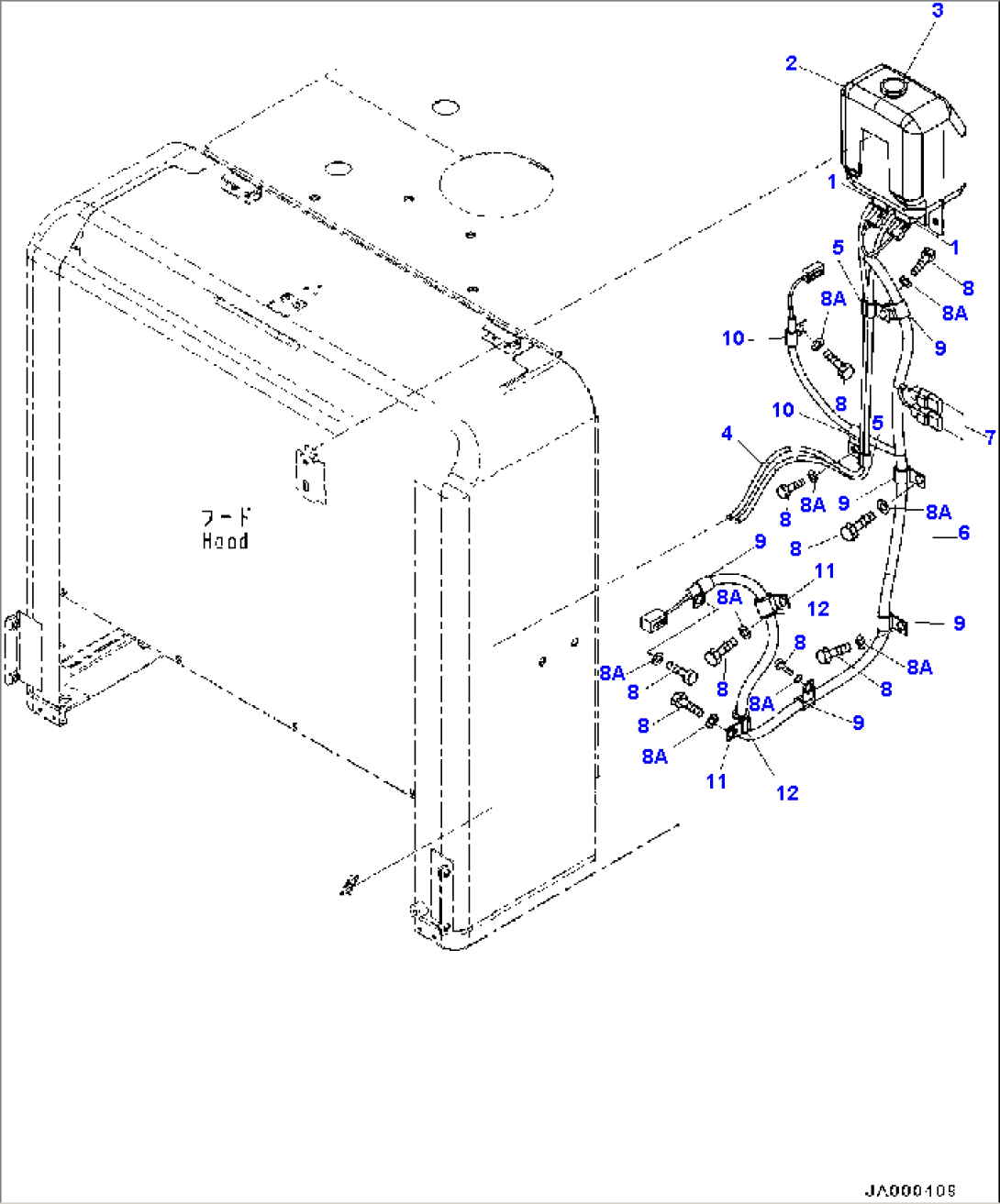

| Item | Part No. | Part Name | Qty | Serial No. |
| 423-947-1101 | Tank Assembly | B20001- | ||
| 1 | 423-947-1110 | Pump Assembly | B20001- | |
| 2 | 423-947-1121 | Tank | B20001- | |
| 3 | 423-947-2150 | Cap | B20001- | |
| 4 | 418-07-36130 | Hose | B20001- | |
| 5 | 04435-50810 | Clip | B20001- | |
| 6 | 417-54-47910 | Wiring Harness | B20001- | |
| 08034-20414 | Band | B20001- | ||
| 08191-00770 | Connector | B20001- | ||
| 08192-22930 | Connector | B20001- | ||
| 08192-26930 | Connector | B20001- | ||
| 7 | 21J-06-13661 | Diode | B20001- | |
| 8 | 01010-81020 | Bolt | B20001- | |
| 8A | 01643-31032 | Washer | B20001- | |
| 9 | 04434-51412 | Clip | B20001- | |
| 10 | 04434-51012 | Clip | B20001- | |
| 11 | 04434-51912 | Clip | B20001- | |
| 12 | 07095-20213 | Cushion | B20001- |
