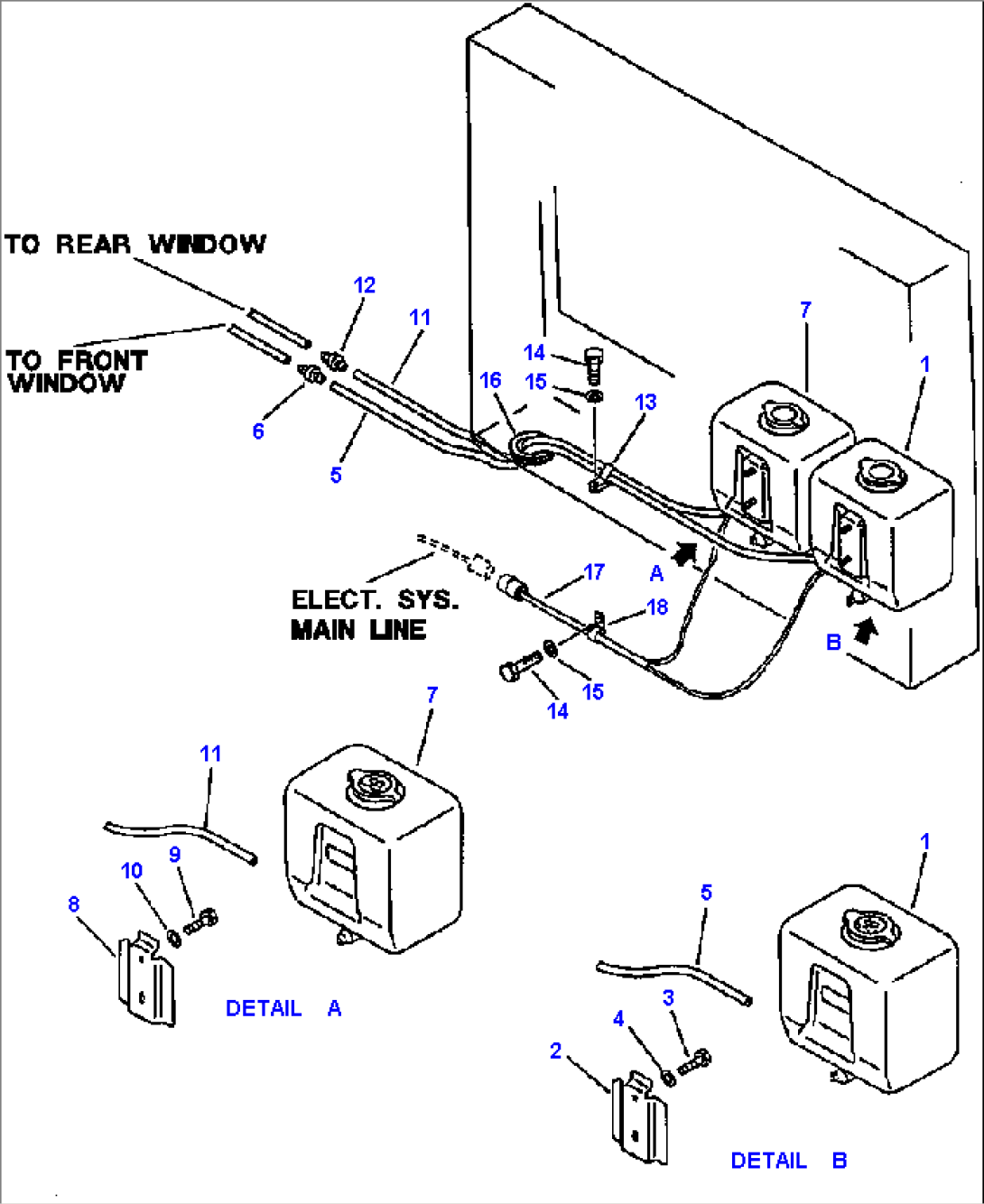

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-07-15160 | TANK, FRONT WINDOW WASHER | ||
| 2 | 421-07-15170 | BRACKET, WASHER TANK | ||
| 3 | 01010-50612 | BOLT, WASHER TANK | ||
| 4 | 01643-30623 | WASHER | ||
| 5 | 426-07-15110 | HOSE, FRONT WIPER | ||
| 6 | 421-07-15110 | JOINT, FRONT WIPER | ||
| 7 | 421-07-15160 | TANK, REAR WINDOW WASHER | ||
| 8 | 421-07-15170 | BRACKET, WASHER TANK | ||
| 9 | 01010-50612 | BOLT, WASHER TANK | ||
| 10 | 01643-30623 | WASHER | ||
| 11 | 426-07-15110 | HOSE, REAR WIPER | ||
| 12 | 421-07-15110 | JOINT, REAR WIPER | ||
| 13 | 08036-00814 | CLIP | ||
| 08036-01414 | CLIP | |||
| 14 | 01010-51020 | BOLT | ||
| 15 | 01643-31032 | WASHER | ||
| 16 | 08032-03614 | GROMMET | ||
| 17 | 426-06-12232 | WIRE ASSEMBLY | ||
| 18 | 08036-01014 | CLIP |
