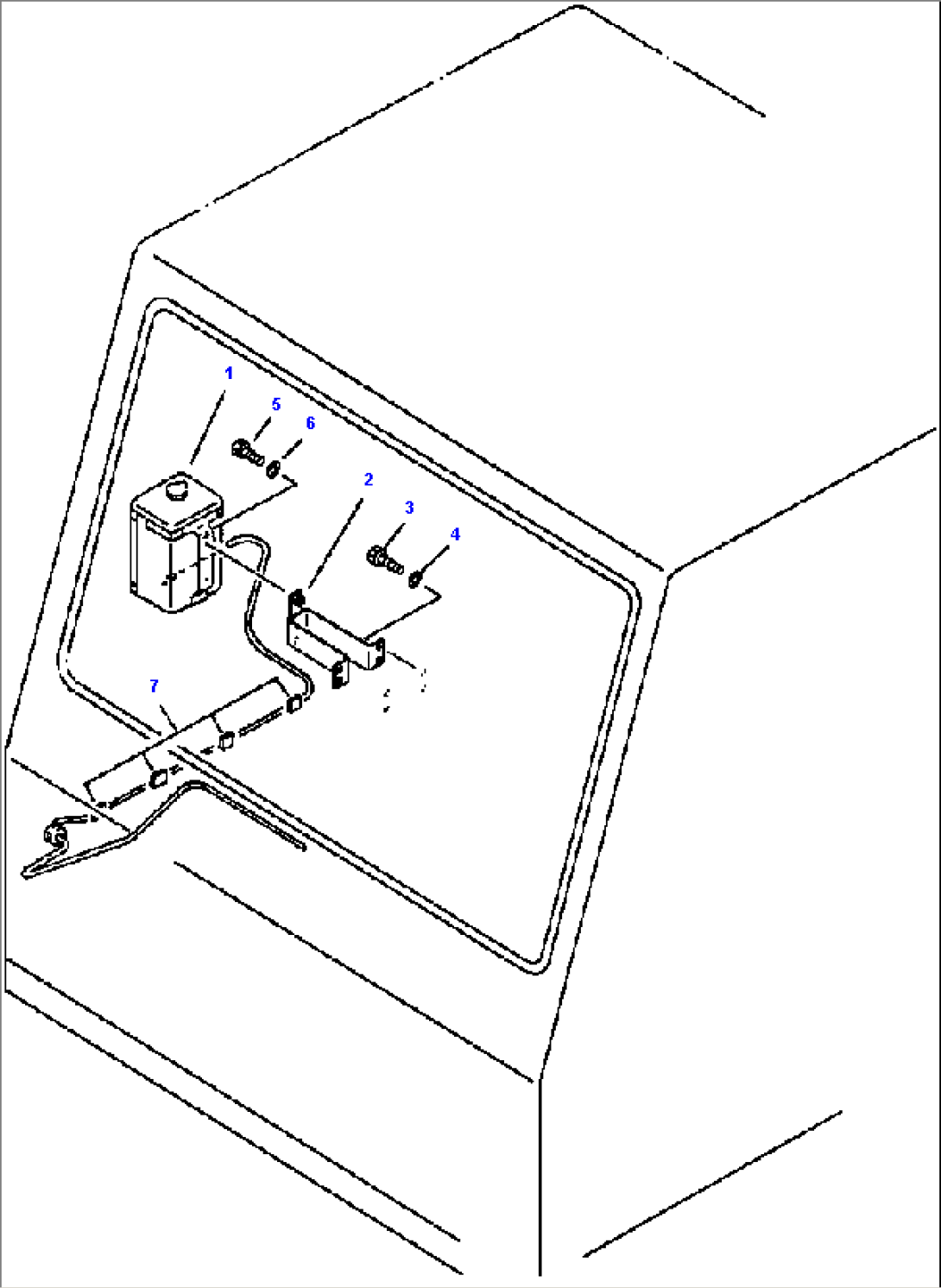

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-06-61150 | WASHER TANK ASSEMBLY (INCLUDES TANK, MOTOR/PUMP, | ||
| 1 | BRACKET AND HOSE) | |||
| 2 | 569-06-62790 | BRACKET | ||
| 3 | 01010-81016 | CAPSCREW | ||
| 4 | 01643-31032 | WASHER | ||
| 5 | 01010-80620 | CAPSCREW | ||
| 6 | 01643-30623 | WASHER | ||
| 7 | 08051-00801 | CLIP |
