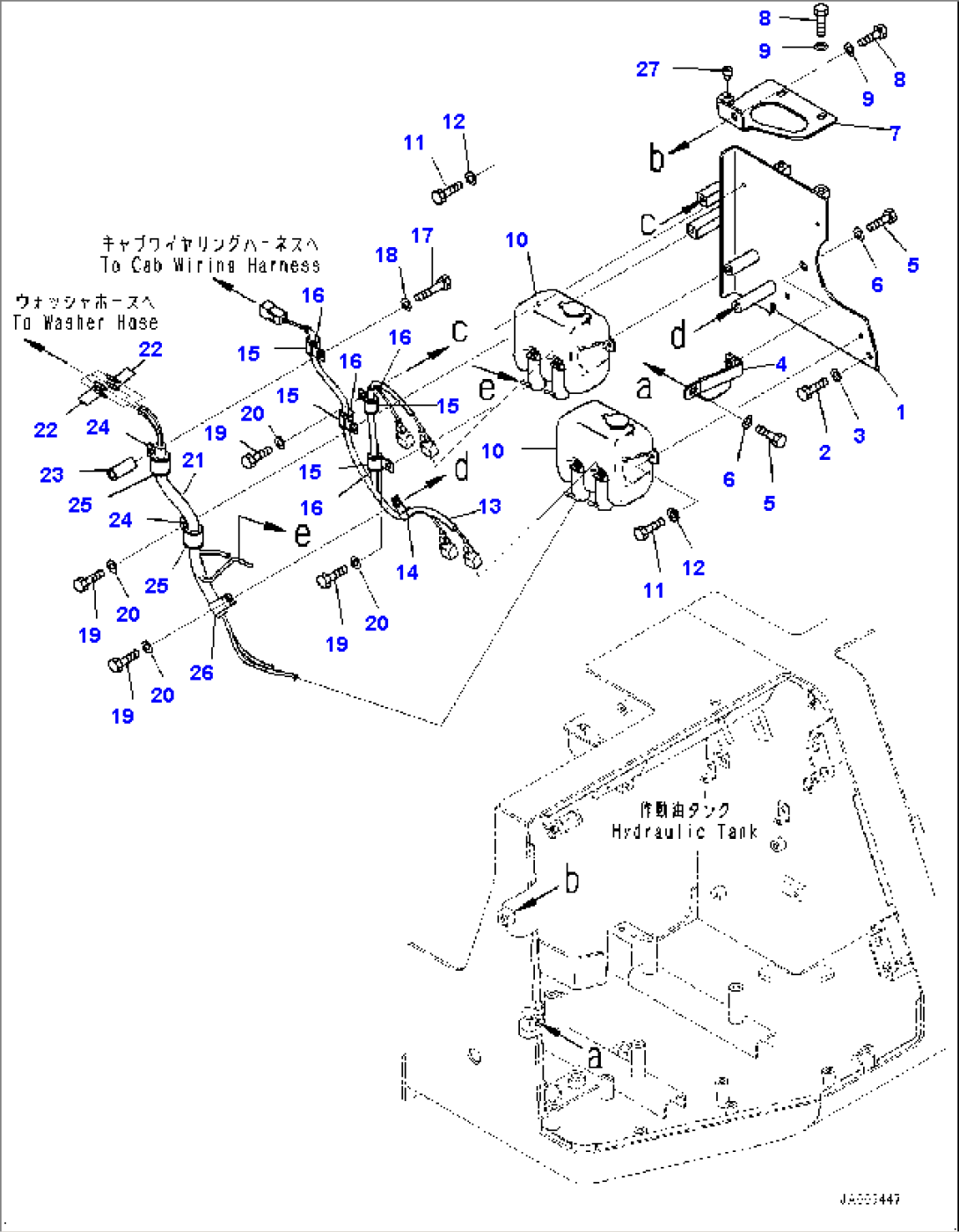

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 13Y-911-1113 | Bracket | 30001-@ | |
| 2 | 01010-81020 | Bolt | 30001-@ | |
| 3 | 01643-31032 | Washer | 30001-@ | |
| 4 | 13Y-911-1172 | Bracket | 30001-@ | |
| 5 | 01010-81025 | Bolt | 30001-@ | |
| 6 | 01643-31032 | Washer | 30001-@ | |
| 7 | 13Y-911-1180 | Bracket | 30001-@ | |
| 8 | 01010-81020 | Bolt | 30001-@ | |
| 9 | 01643-31032 | Washer | 30001-@ | |
| 10 | 13Y-911-1210 | Tank Assembly | 30001-@ | |
| 11 | 01010-80620 | Bolt | 30001-@ | |
| 12 | 21T-43-11770 | Washer | 30001-@ | |
| 13 | 13Y-06-12874 | Wiring Harness | 30001-@ | |
| 14 | 04434-51010 | Clip | 30001-@ | |
| 15 | 04434-51710 | Clip | 30001-@ | |
| 16 | 07095-20211 | Cushion | 30001-30618 | |
| 17 | 01010-81075 | Bolt | 30001-@ | |
| 18 | 01643-31032 | Washer | 30001-@ | |
| 19 | 01010-81020 | Bolt | 30001-@ | |
| 20 | 01643-31032 | Washer | 30001-@ | |
| 21 | 13Y-911-1132 | Hose Assembly | 30629-@ | |
| 21 | 13Y-911-1131 | Hose Assembly | 30001-30628 | |
| 22 | 195-979-8590 | Valve | 30001-@ | |
| 23 | 14X-54-26640 | Collar | 30001-@ | |
| 24 | 04434-52711 | Clip | 30001-30628 | |
| 25 | 07095-20419 | Cushion | 30001-30628 | |
| 26 | 04434-51710 | Clip | 30001-@ | |
| 27 | 415-54-11980 | Cushion | 30001-@ |
